We made serial and parallel cables this week.

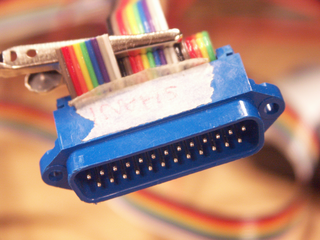

The parallel cable has a standard DB-25 male connector at one end:<br/>
<img src="pict1246.png"/><br/>

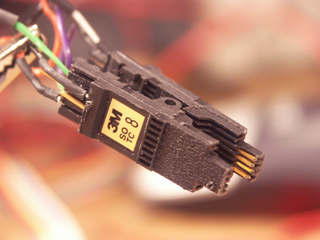

and a programming "clip" on the other side:<br/>
<img src="pict1248.png"/><br/>

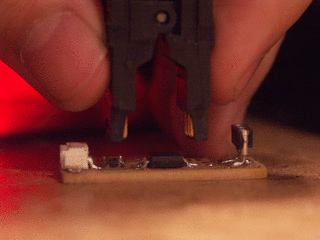

It plugs into an SOIC-8 size microcontroller from the top, like so:<br/>
<img src="parallel-on.gif"/><br/>

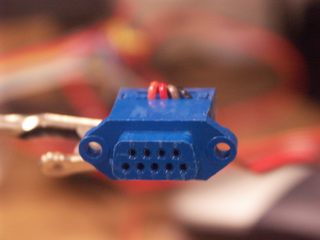

The serial cable has a standard DB-9 female connector at one end:<br/>
<img src="pict1245.png"/><br/>

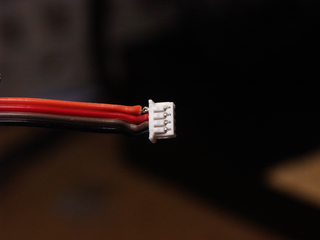

and a molex connector to plug into a Hello circuit at the other end:<br/>
<img src="pict1243.png"/><br/>

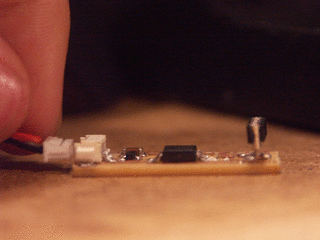

It plugs into a Hello like so:<br/>
<img src="serial-on.gif"/><br/>
