Git repository on fab server

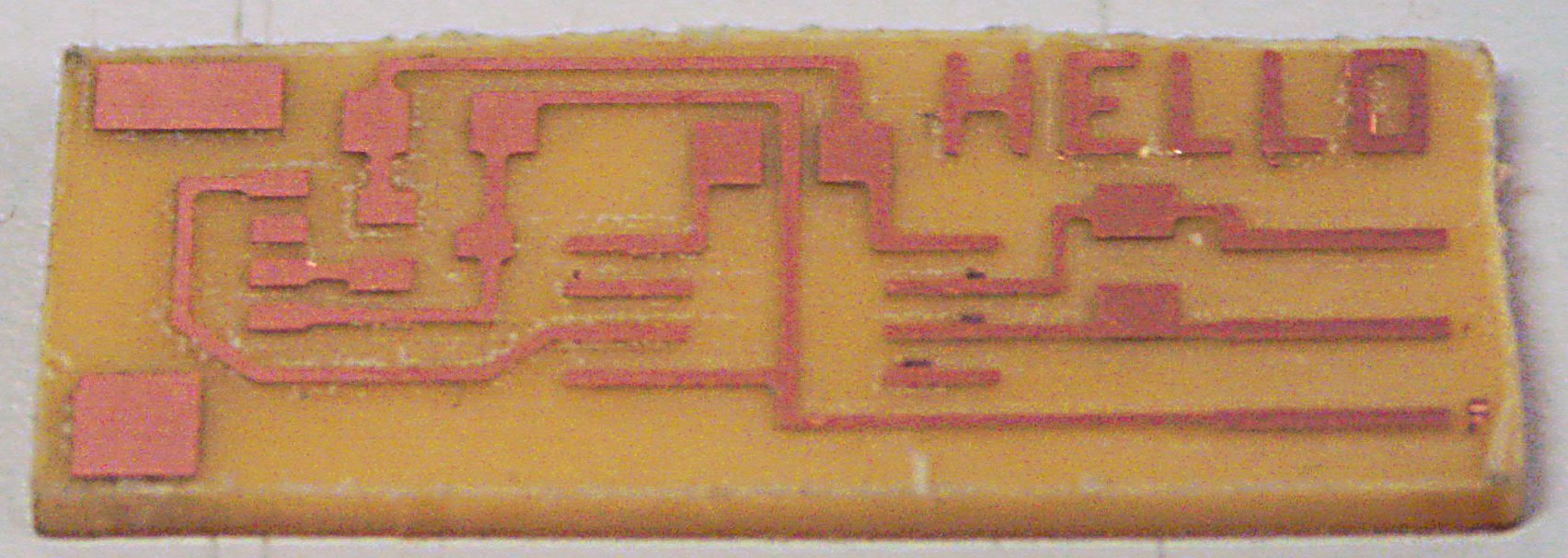

I began by making the Hello3 circuit on the Modela:

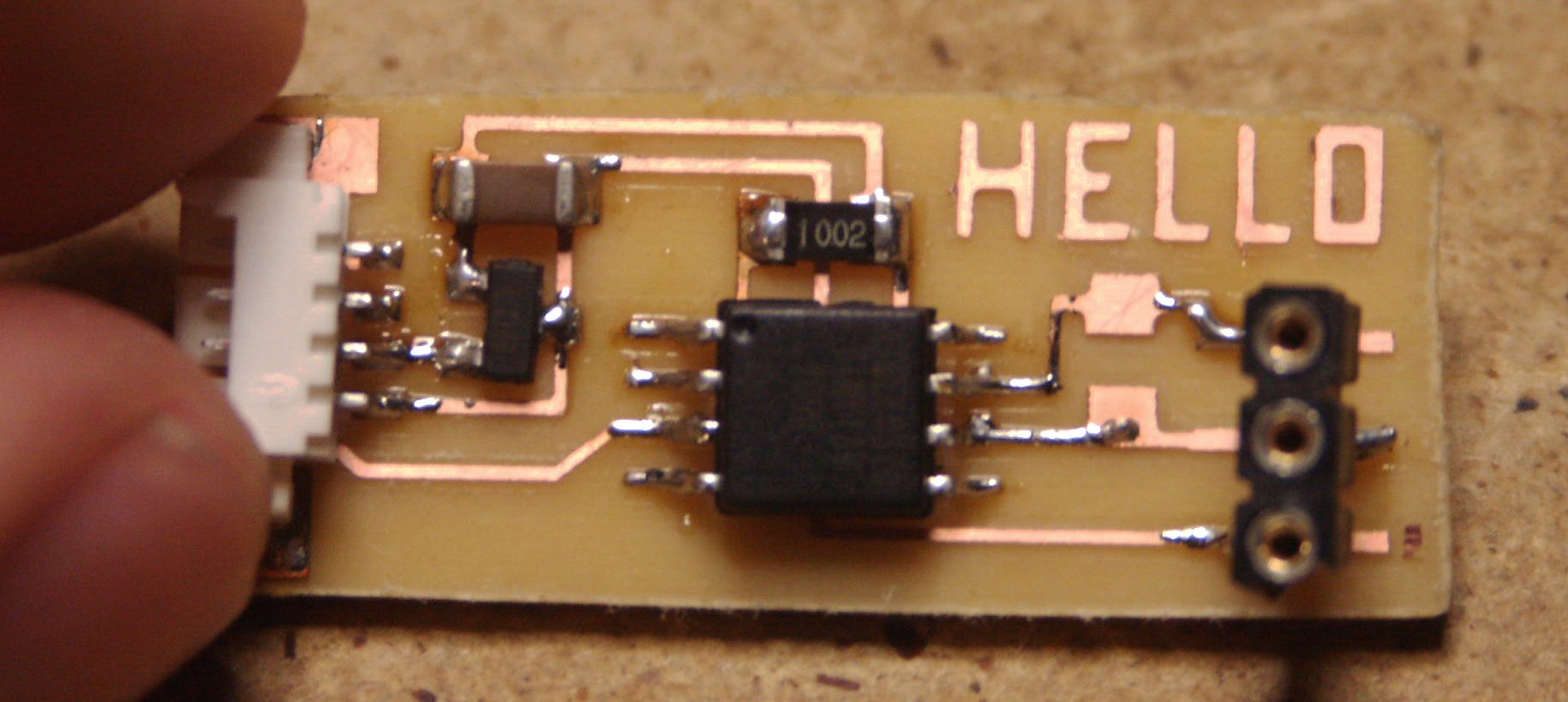

Then I stuffed it, a little more carefully:

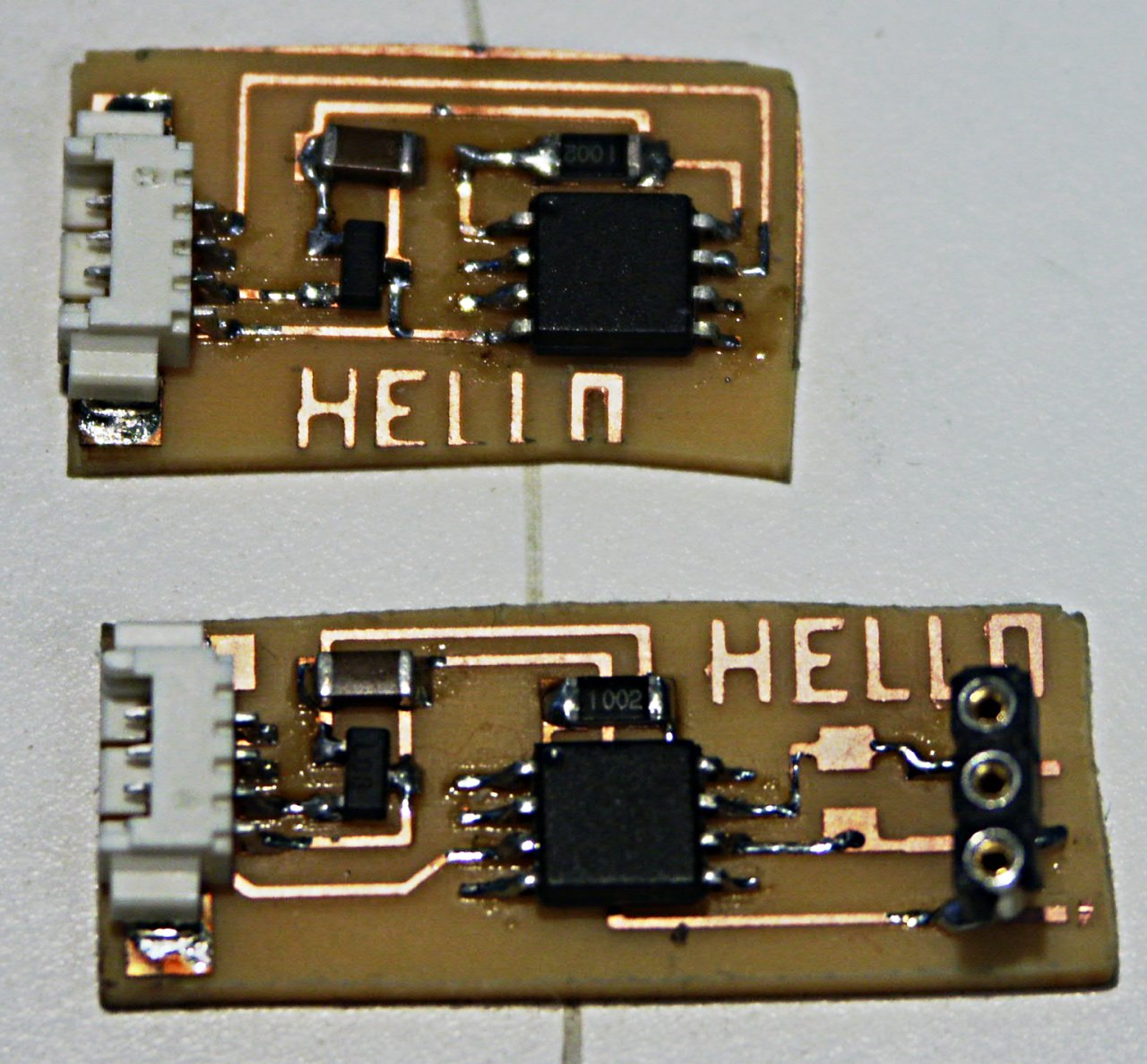

As you can see, it's slightly larger than the original hello:

I programmed the hello3 successfully and am now working on the asm code for a logic analyzer. The basic idea is for the microcontroller to poll one of its pins in logic-level mode as quickly as possible (in 9.6Mhz mode) and fill up RAM with bits from that pin, and then dump RAM on a 115kbaud serial connection to the computer, then restart. This can then be used as a logic/timing analyzer for other circuits.
