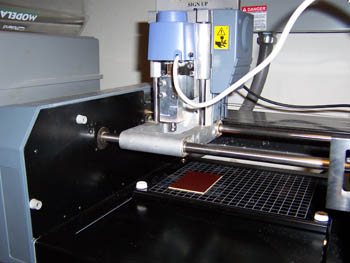

This week's assignment was to mill the 'Hello1' circuit board and then to "stuff" it. The mill inputs the schematic of the board from cad.py. The mill's end-mill then needs to be adjusted in order to provide the correct depth of cut.

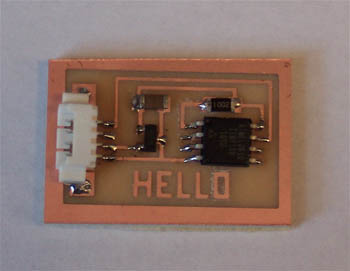

After the board has been milled, I followed the 'Hello 1" schematic and placed the correct components on it. The next step was to solder the parts to the board.

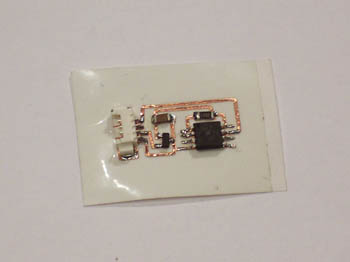

For extra credit, I made a 'Hello 1" on the vinyl cutter. The advantage of using the vinyl is that the circuit has an adhesive backing that can be stuck to almost any desired surface.
