week 5: (cyber)board
For this week we had to modify the original design of the hello board to add a LED and a button.
|
Software
|
Changes in the Design
|
|

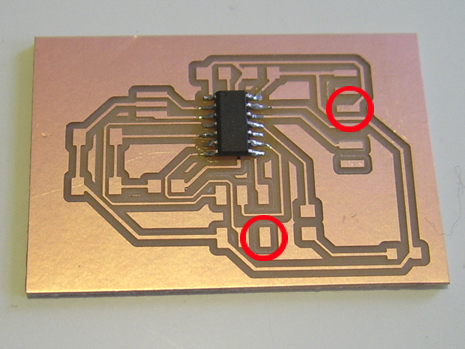

Marked in red is where the wire was deleted by mistake |
|
|
Fortunately I got some help finding and repairing the error (thanks Natalie!) and the board got to work perfectly, but with a strange cyberpunk, Frankenstein bride look.
|
|
|
|
I programmed it using what we built on David Carr's session and made some changes to the rhythm and use of the button. I corrected the error in Eagle and cut another board to build a new hello board, but I am still in the process of stuffing it. |
|
|
|
|
