Week 11

This week assignment was about network communications, after many problems with my laptop finally i was able to upload the work that i did.

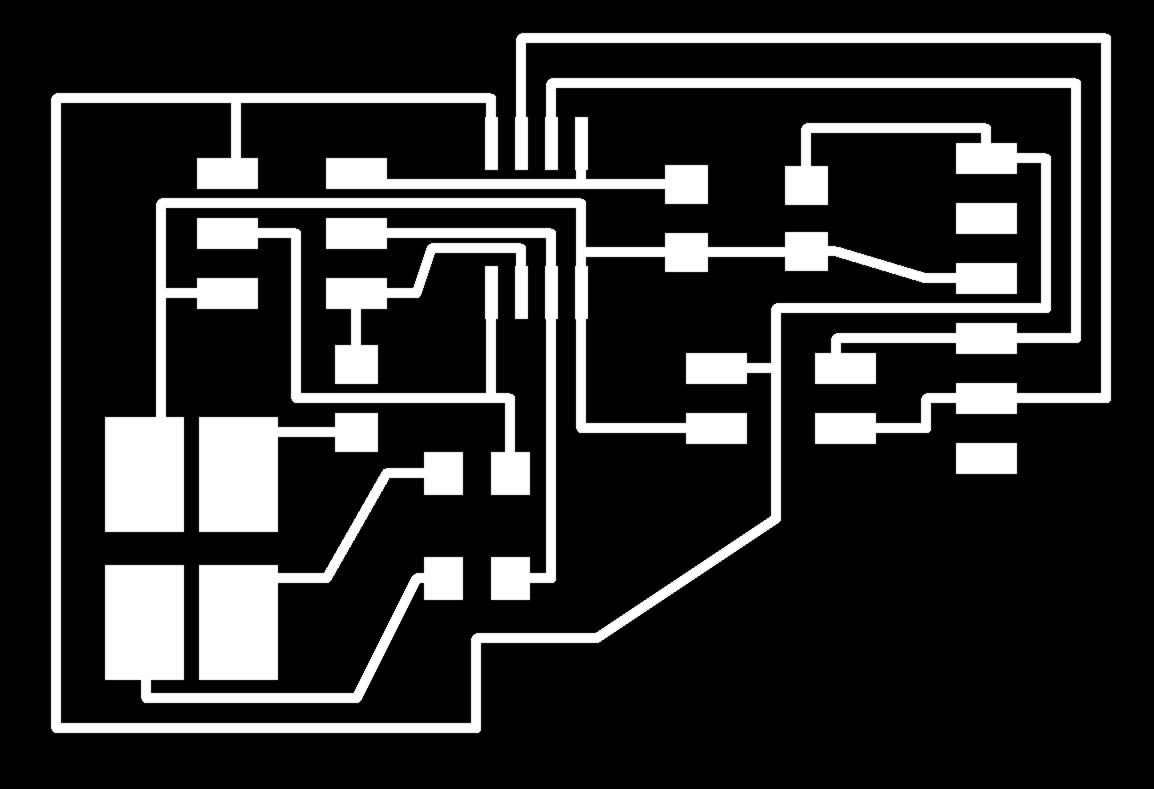

I started redesigning neil's board by adding an rgb light that can be connected to a second board (node01) and a color sensor (node 02).

Also i modified the board that i did for output devices so it can communicate with my bus board.... sadly it worked only once and then i connected the cables inverted by mistake and it didn't work anymore. did it again and nothing. frustraing.

This week there was not much advance in terms of communications but i worked very hard in my sensors for the final project.

here a video and photos of the fail project of the week (only the bus responds to serial communication).

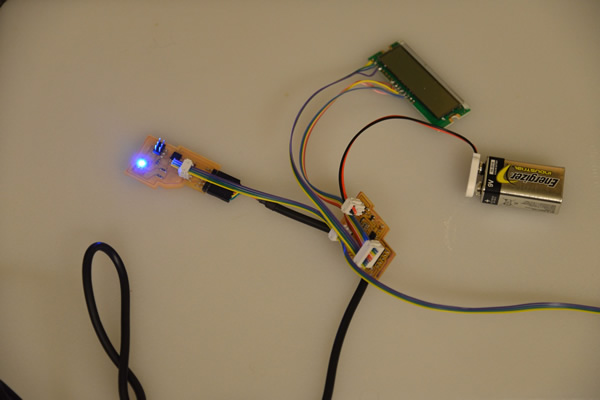

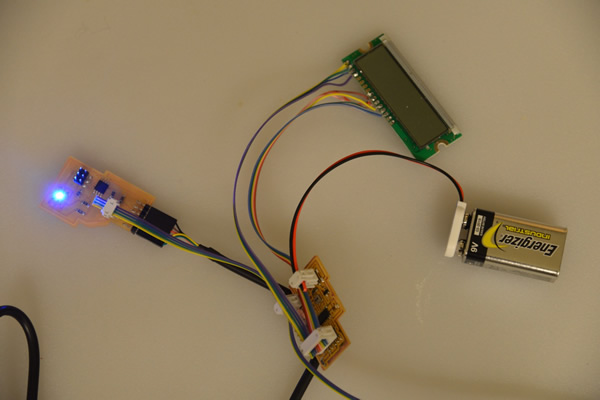

boards conected, external power for the screen.

video of the boards connected.

Network communications from DIGIFAB on Vimeo.
