PCB Construction

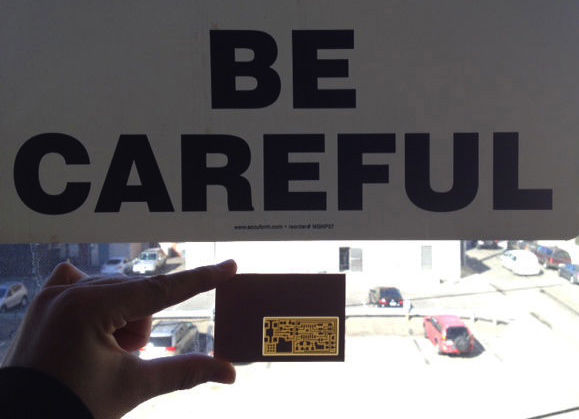

Name of the Game: Be Careful


I used Modela to mill a PCB on a small copper covered board. It all went reasonably well, except for the profile cut around the edge which wasn't deep enough the first time. But I simply re-taped the PCB down to the bed again and did a second cut .05mm deeper. It worked like a charm.

Below are some photos of the process.

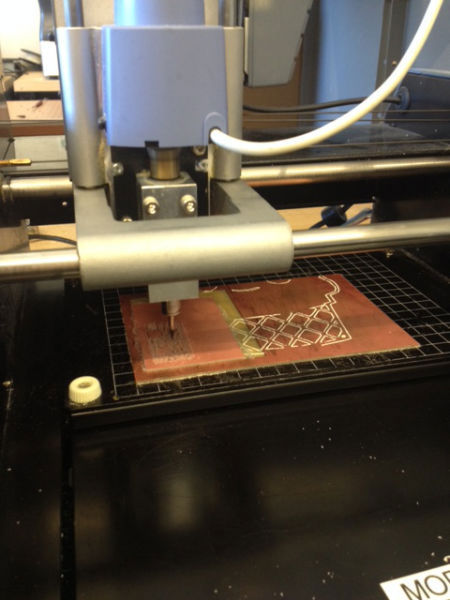

PCB on the table being cut.

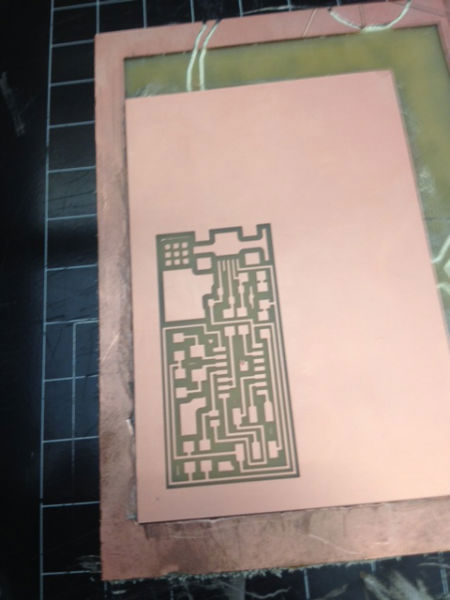

PCB on the table having been cut.

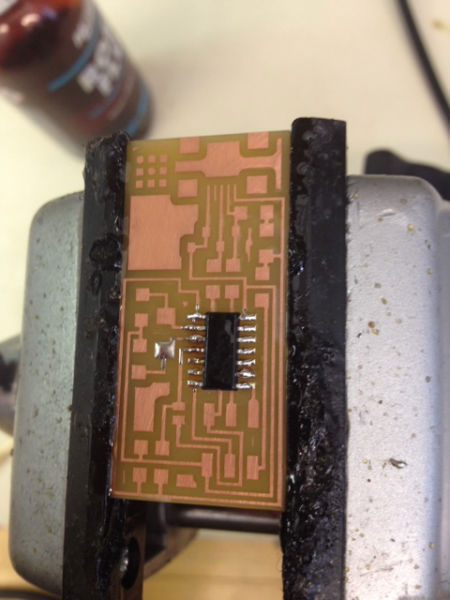

PCB in vice. Soldering on components. Had too much coffee. Good thing I didn't go into surgery - shaky hands.

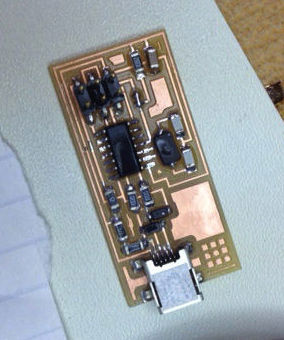

PCB done!
