Week 2 PCB Fabrication

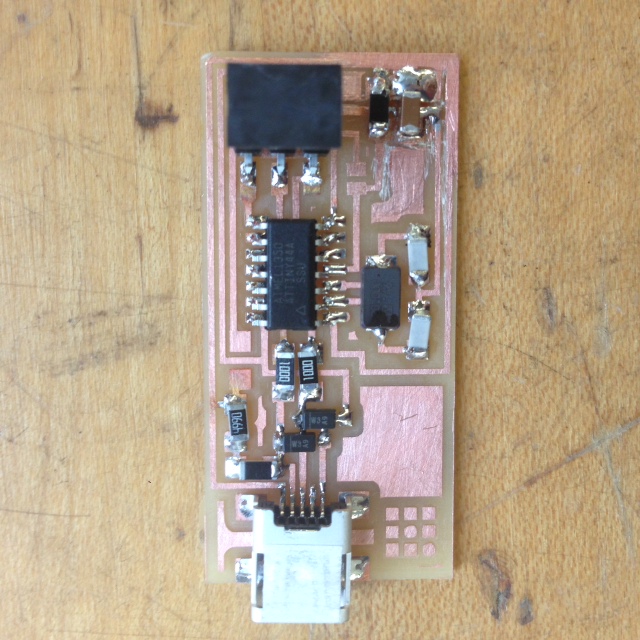

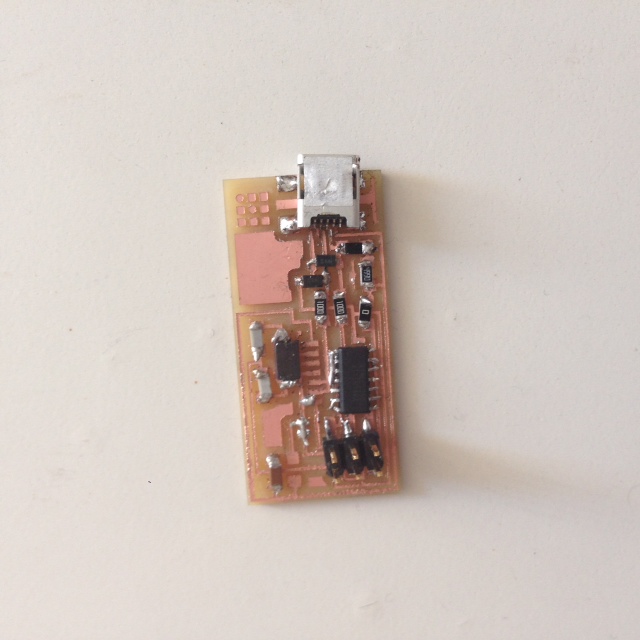

First and foremost, I finally made this work! Oh no, almost...
My work flow are illustrated in the pictures.

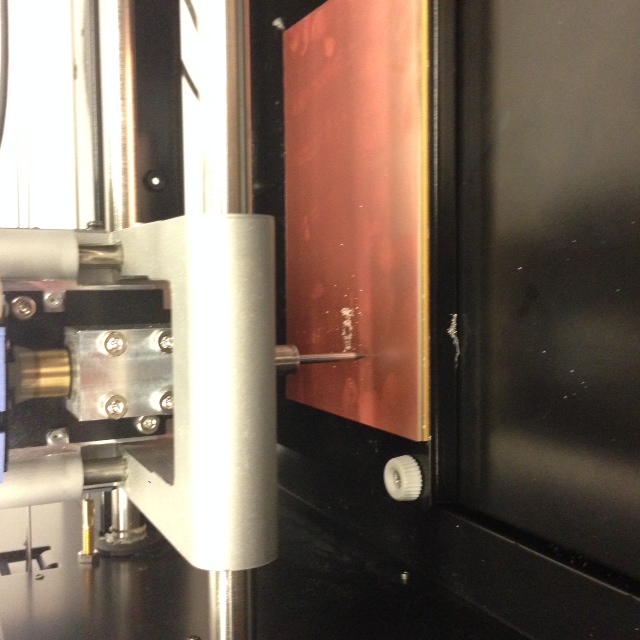

(1) Set up the directory, change the command window and zero the
tools.
(2) Prepare the parts on a sheet of paper with labeling.

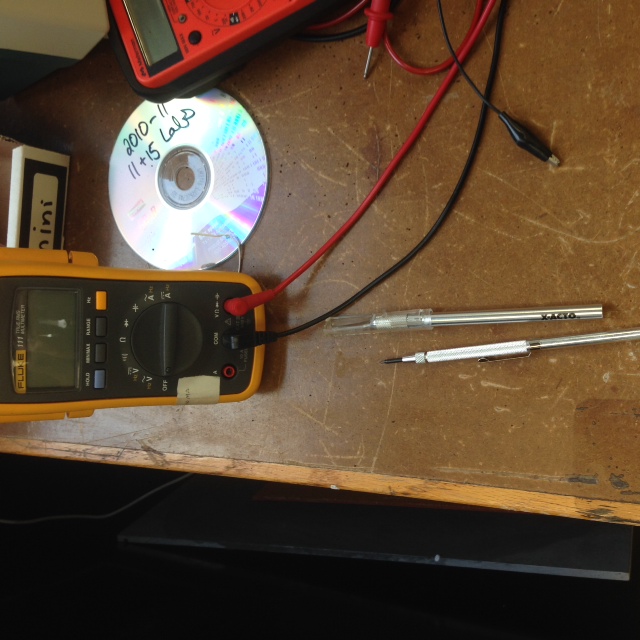

(3) Use the meters to diagnose the voltage and resistance to point
out the connection problems.

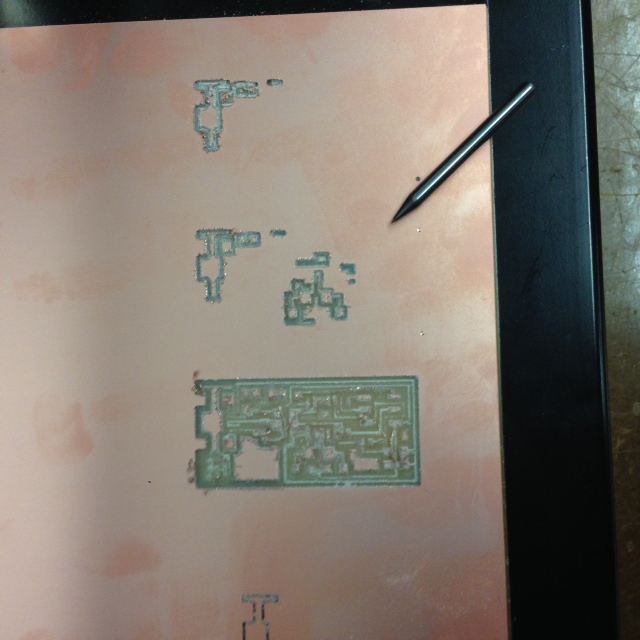

(4) Use knife if you need to cut through the board where the machine
didn't finish.
(5) Heat up the copper first when you make joints.
