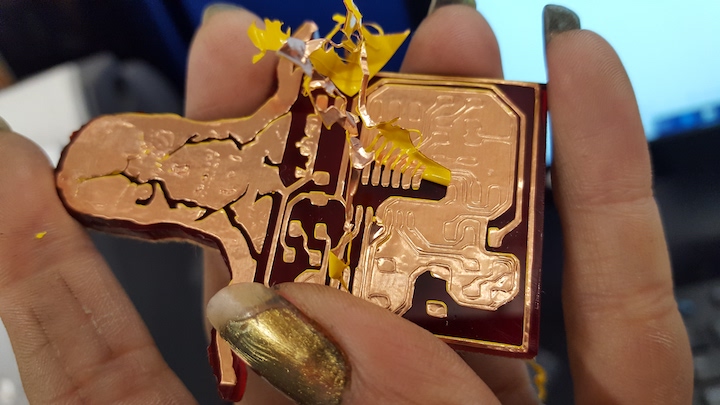

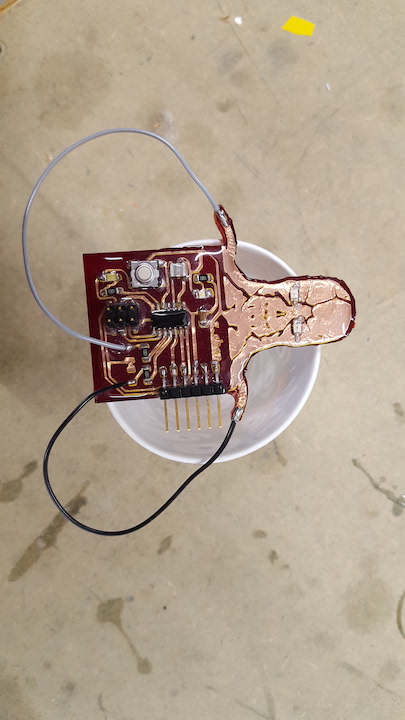

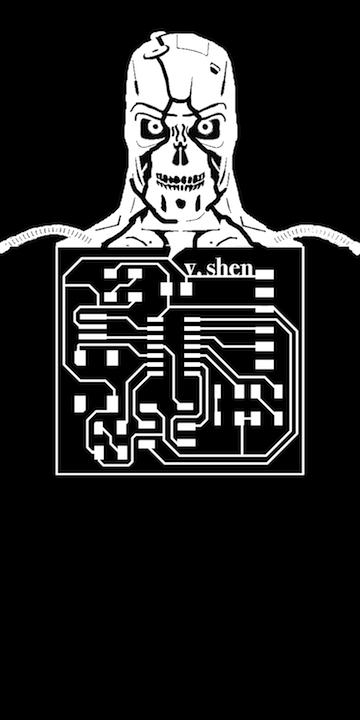

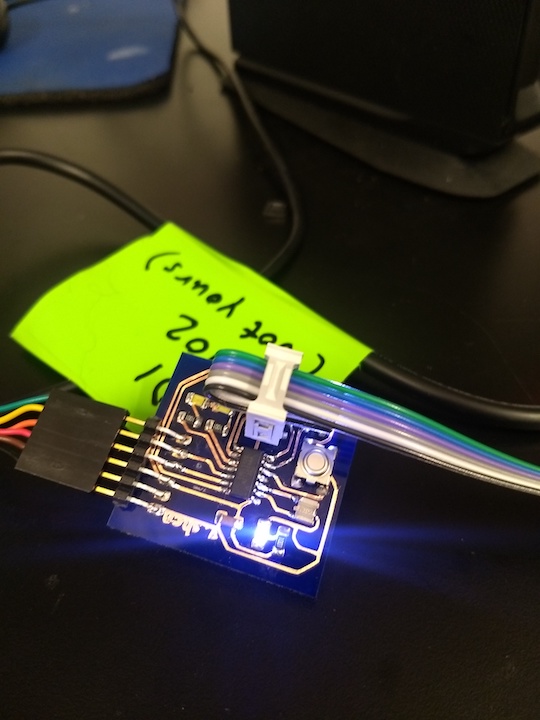

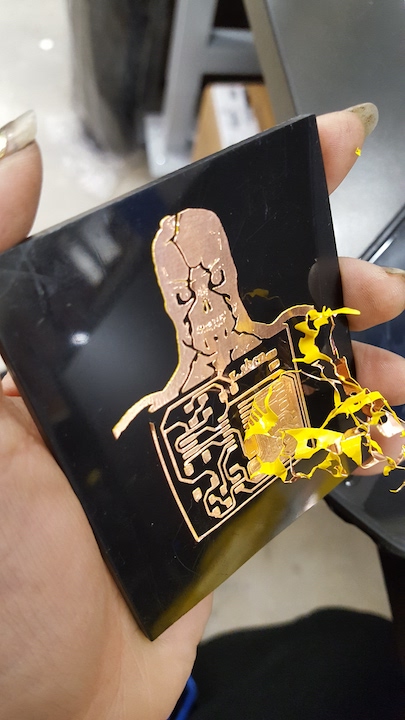

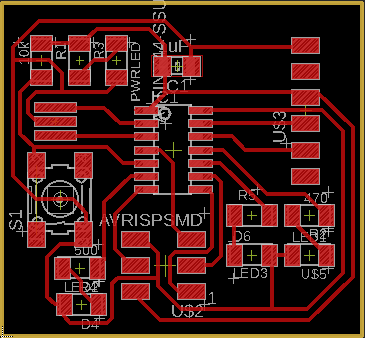

# embedded programming ## new board i added two more leds to my original design, including a power led. ![board](http://fab.cba.mit.edu/classes/863.18/Harvard/people/victoria/images/week_06/board_eagle.png) i fabricated the new design using the vinyl cutter on some blue acrylic that I milled into a rectangle. ![blue](http://fab.cba.mit.edu/classes/863.18/Harvard/people/victoria/images/week_06/ac_blue.jpg) i was able to successfully program it with the blink sketch. instead of going to pinball league that night, since i was on a roll, i decided to make another board based off an illustration on the terminator 2 pinball machine. ![terminator](http://fab.cba.mit.edu/classes/863.18/Harvard/people/victoria/images/week_06/terminator_vinyl.png) unfortunately, i could not make the eyeballs of the cyborg glow without drastically altering the layout or using jumper wires so i opted to use jumper wires. fortunately, i could give the illusion of the wires being part of the existing cyborg plumbing. ![black](http://fab.cba.mit.edu/classes/863.18/Harvard/people/victoria/images/week_06/ac_black.jpg) incomplete without the terminator 2 theme... <iframe width="560" height="315" src="https://www.youtube.com/embed/B5Cpz_M-RUI" frameborder="0" allow="autoplay; encrypted-media" allowfullscreen></iframe> a version wherein i milled the outline out of red acrylic ![red weed](http://fab.cba.mit.edu/classes/863.18/Harvard/people/victoria/images/week_06/ac_red_weed.jpg) ![red](http://fab.cba.mit.edu/classes/863.18/Harvard/people/victoria/images/week_06/ac_red.jpg) buncha boards fabricated this week! ![ac boards](http://fab.cba.mit.edu/classes/863.18/Harvard/people/victoria/images/week_06/acboards.jpg) ##halloween mask also 3d printed a bauta mask for halloween ![mask in printer](http://fab.cba.mit.edu/classes/863.18/Harvard/people/victoria/images/week_06/mask.jpg) ![mask](http://fab.cba.mit.edu/classes/863.18/Harvard/people/victoria/images/week_06/mask_done.jpg)
