Week 06 | Electronics Production

This week's assignment is to add a sensor to a microcontroller board that we have designed and read it.

Things I did for this week:

  1. Design and make a 3-axis accelerometer module for measuring rotation and acceleration
  2. Tap into the design for a digital hourglass for output week based on this week's input device
  3. Remade my site using mkdocs

I have worked with off-the-shelf sensor module a lot before. So for this week I specifically want to learn how to design and make a sensor device from mere components.

Design a Tomato Clock (The Pomodoro Timer)

Draw Diagram

Design PCB in KiCAD

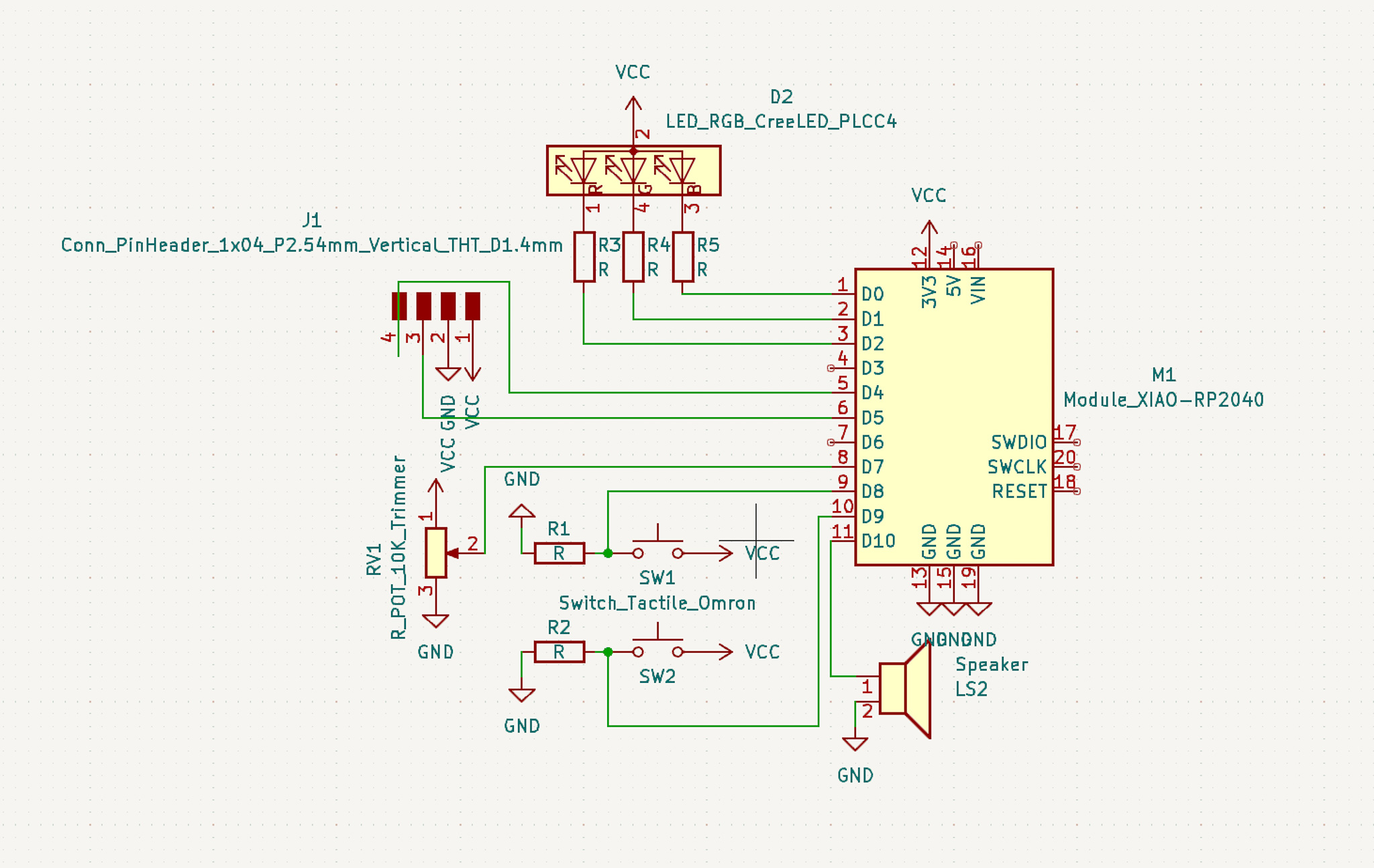

Diagram

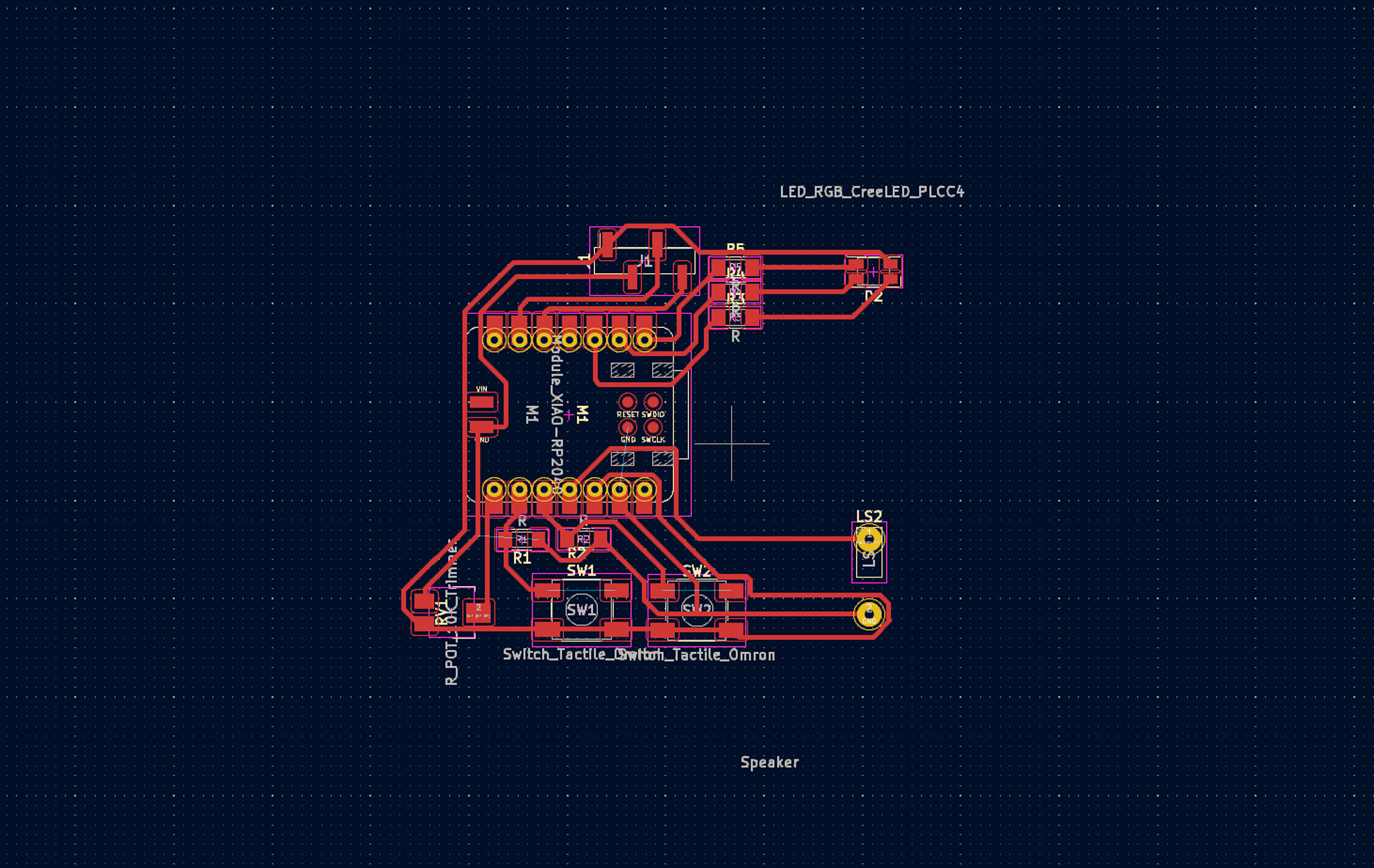

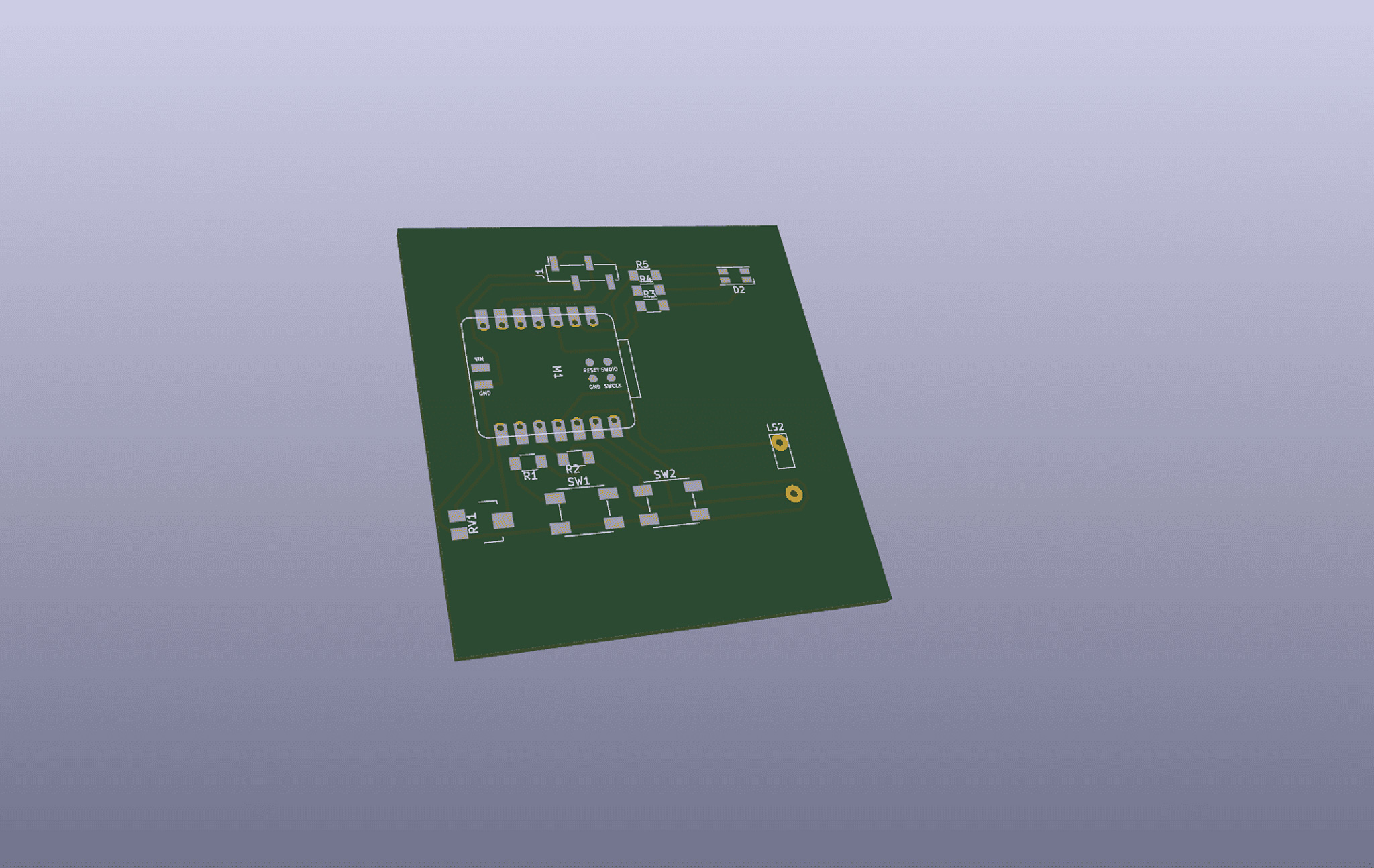

PCB

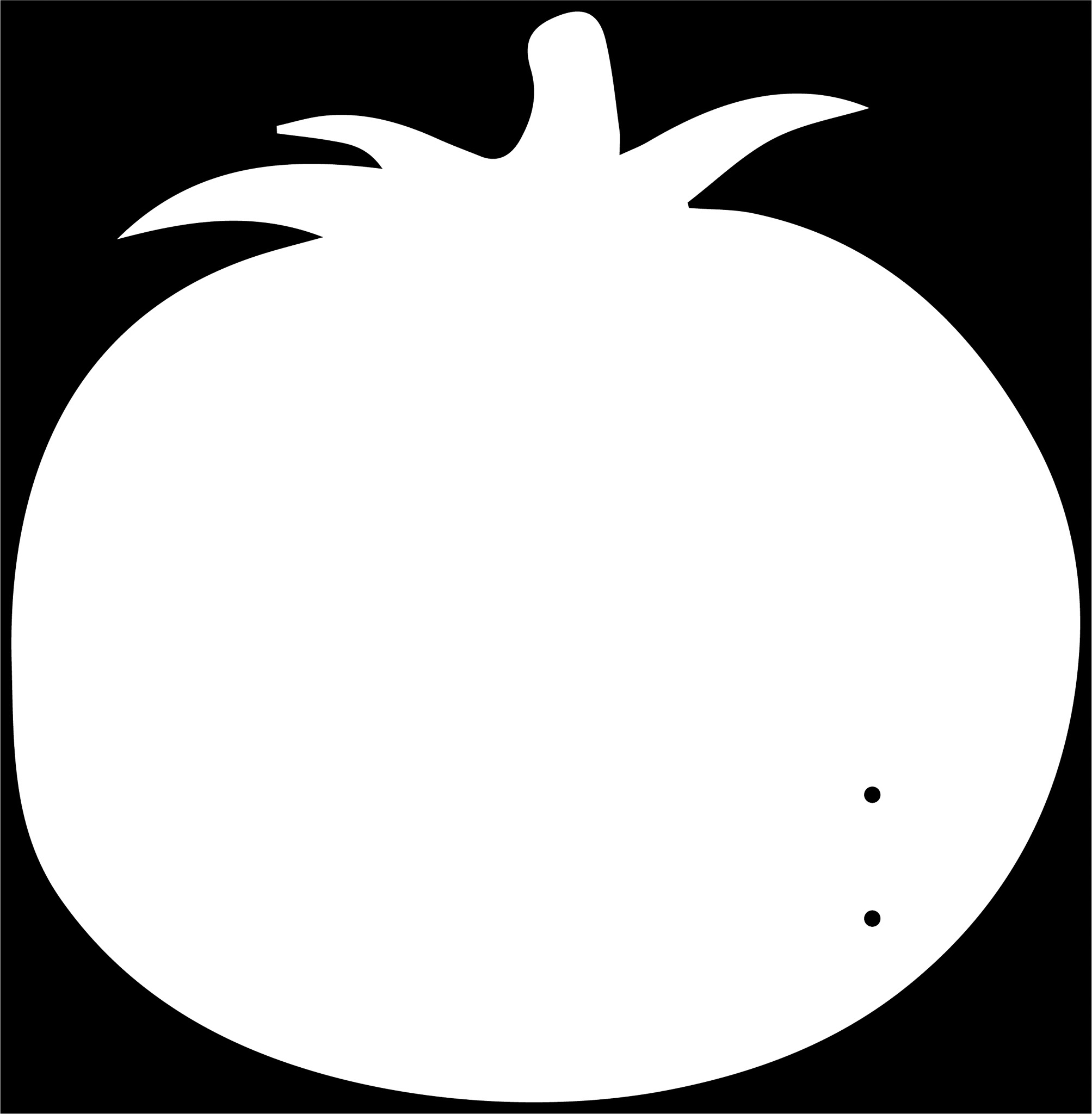

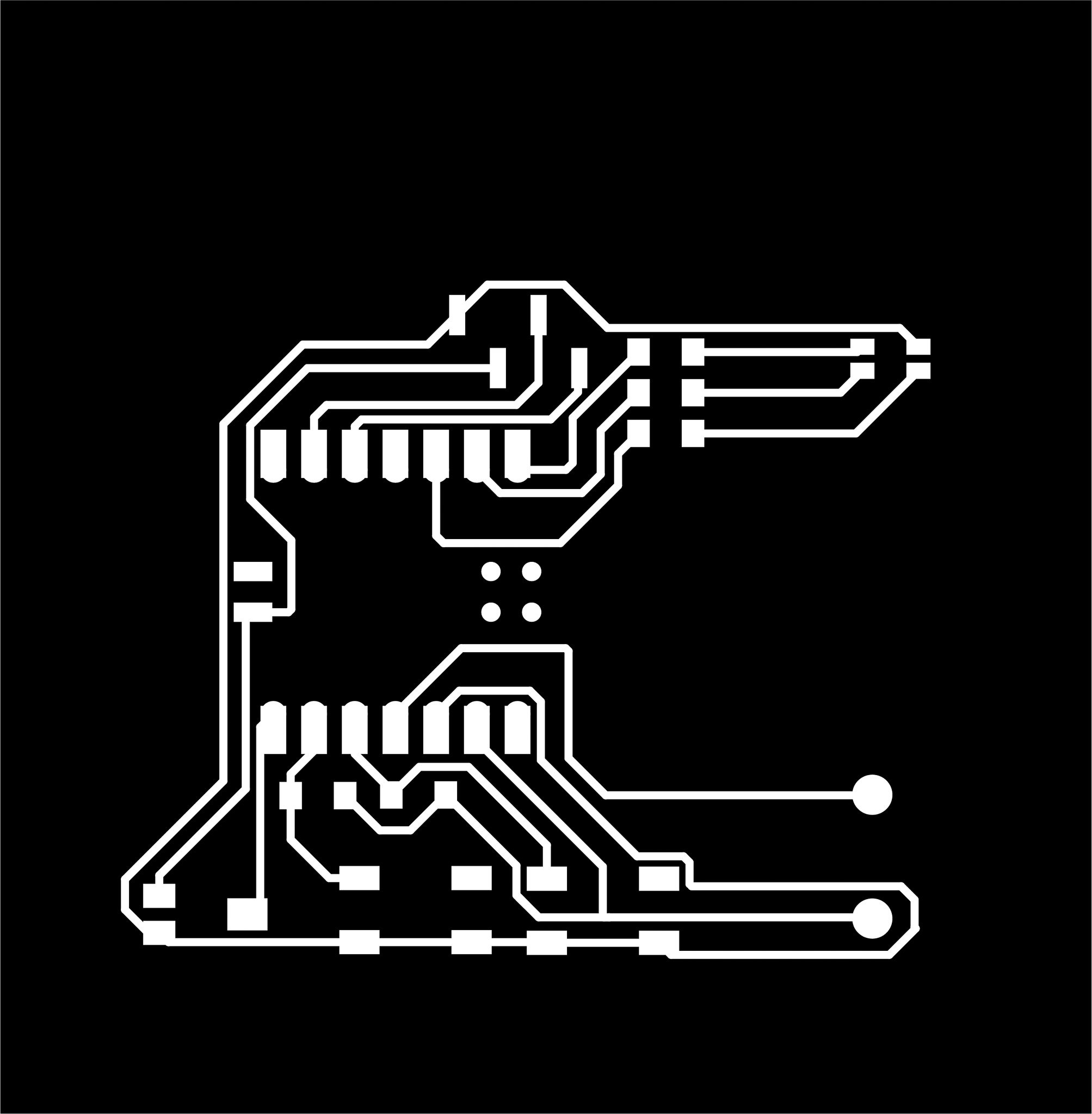

Outline

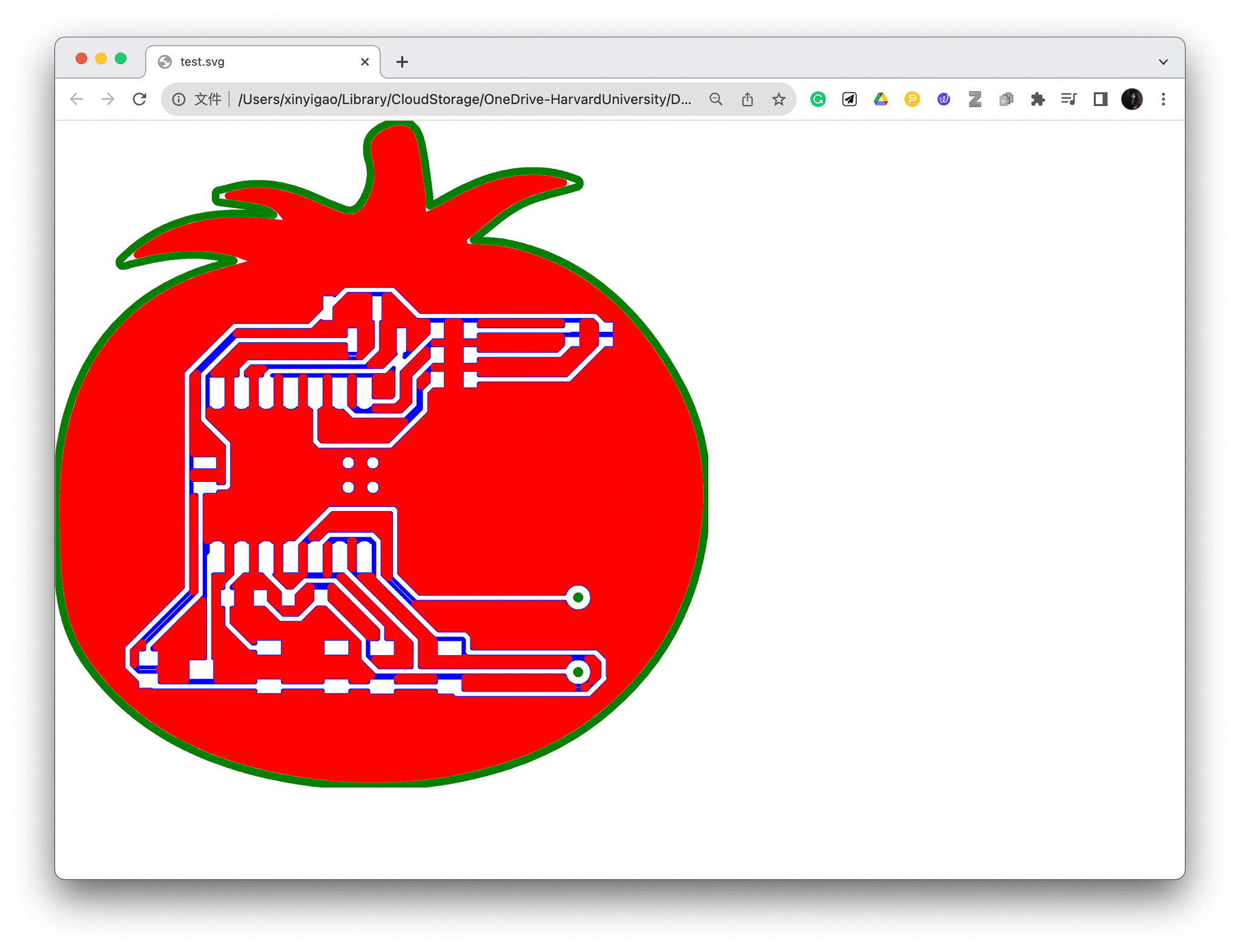

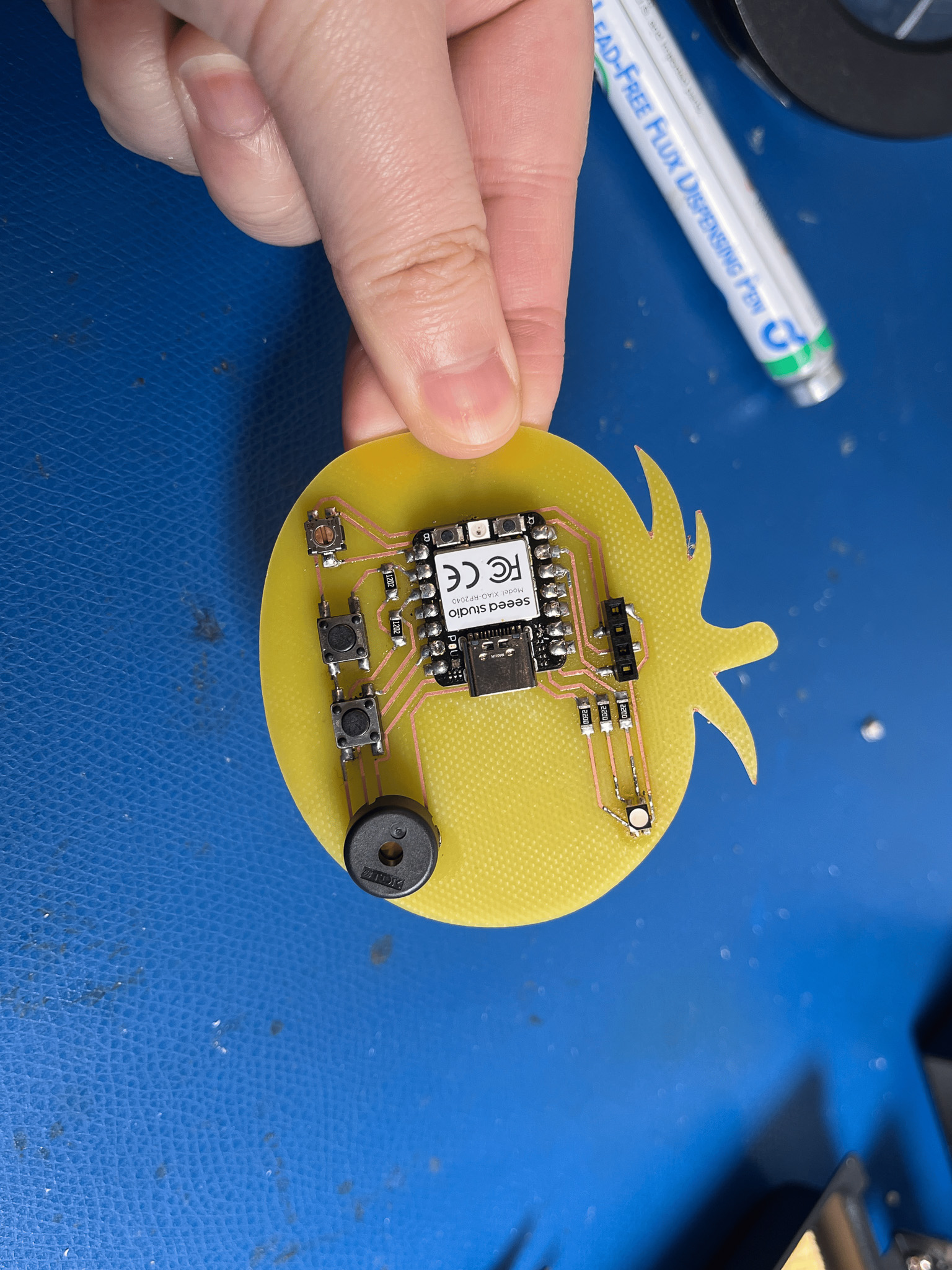

Produce PCB for Tomato Clock

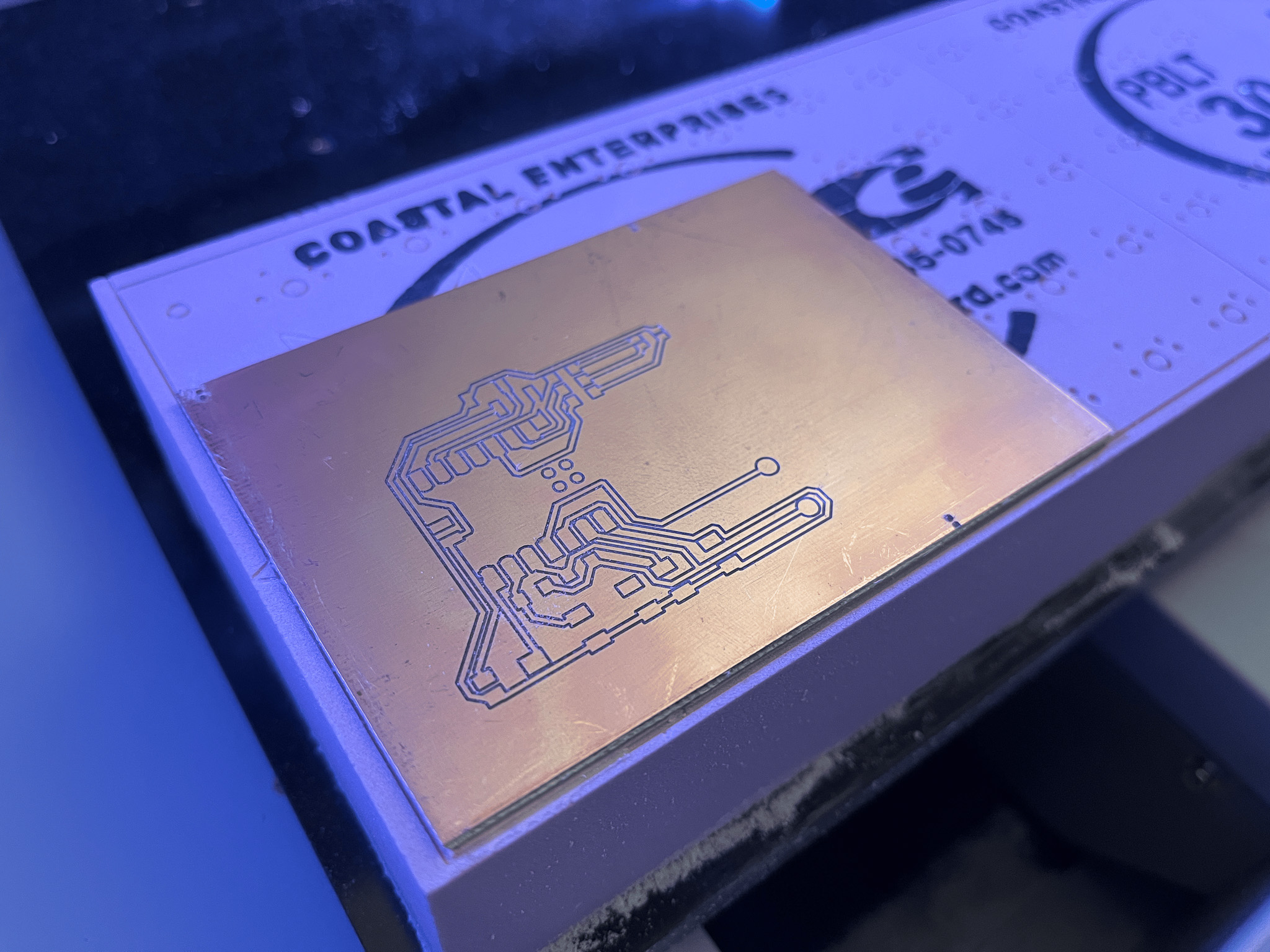

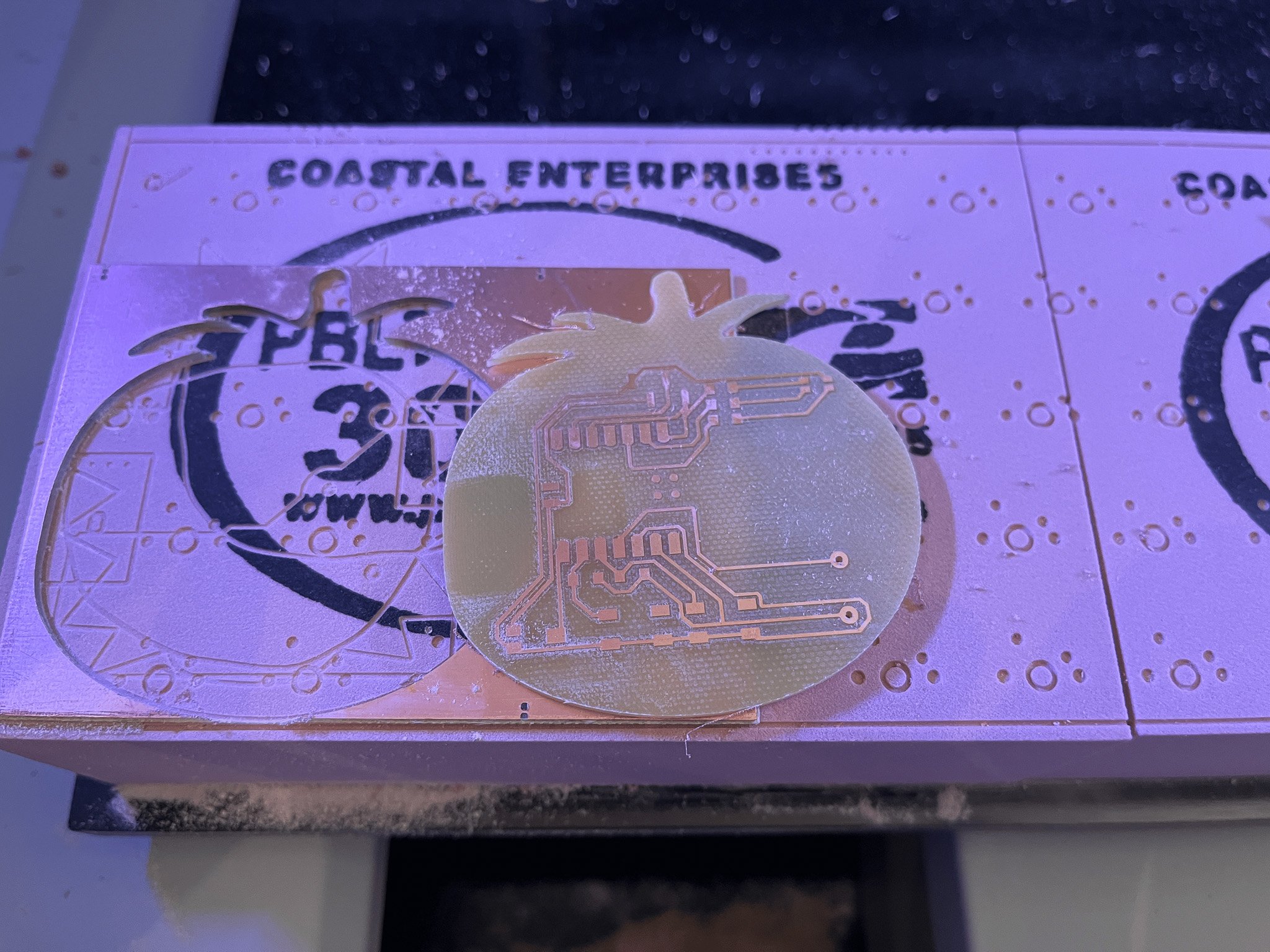

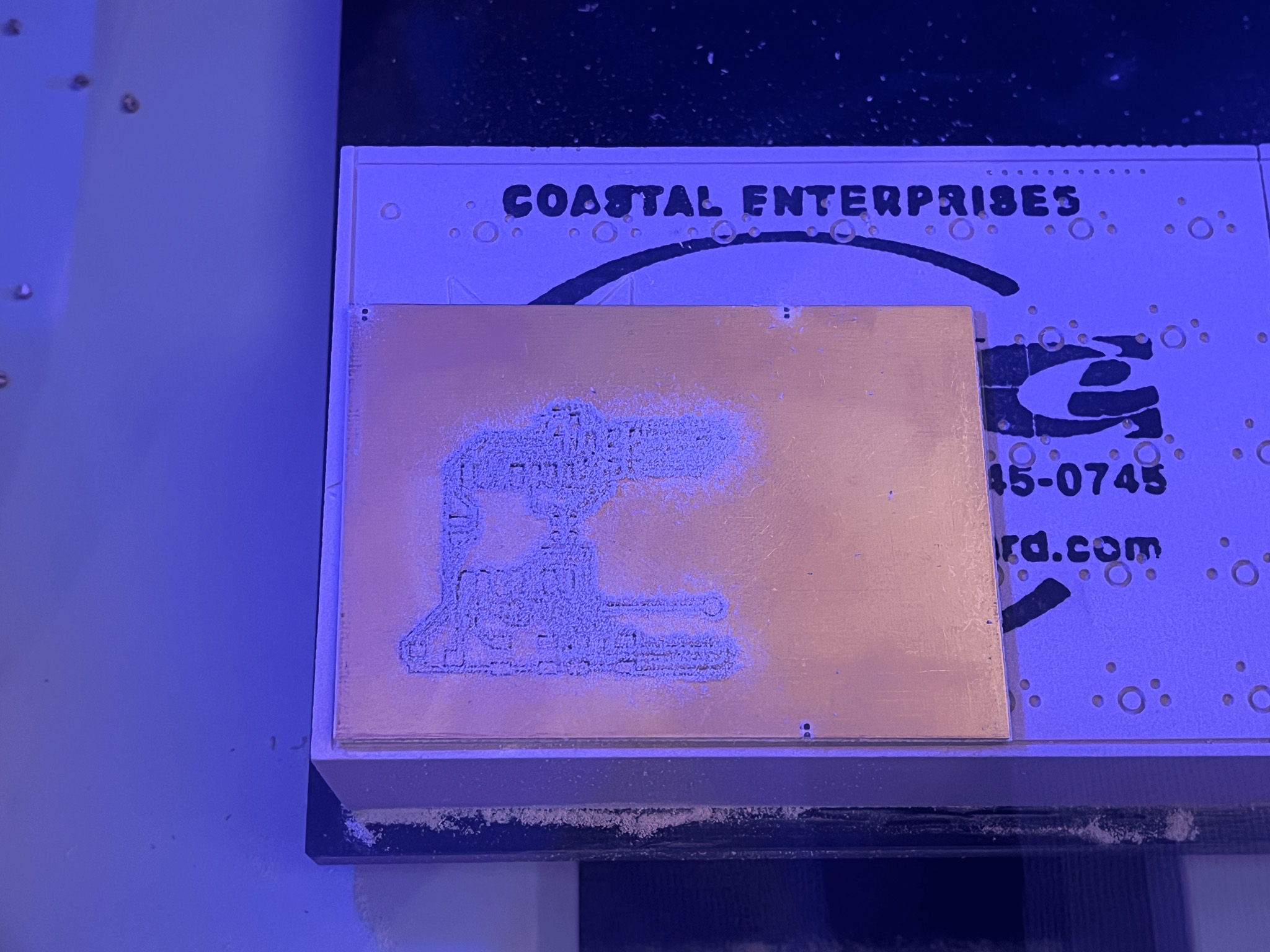

Milling

Soldering

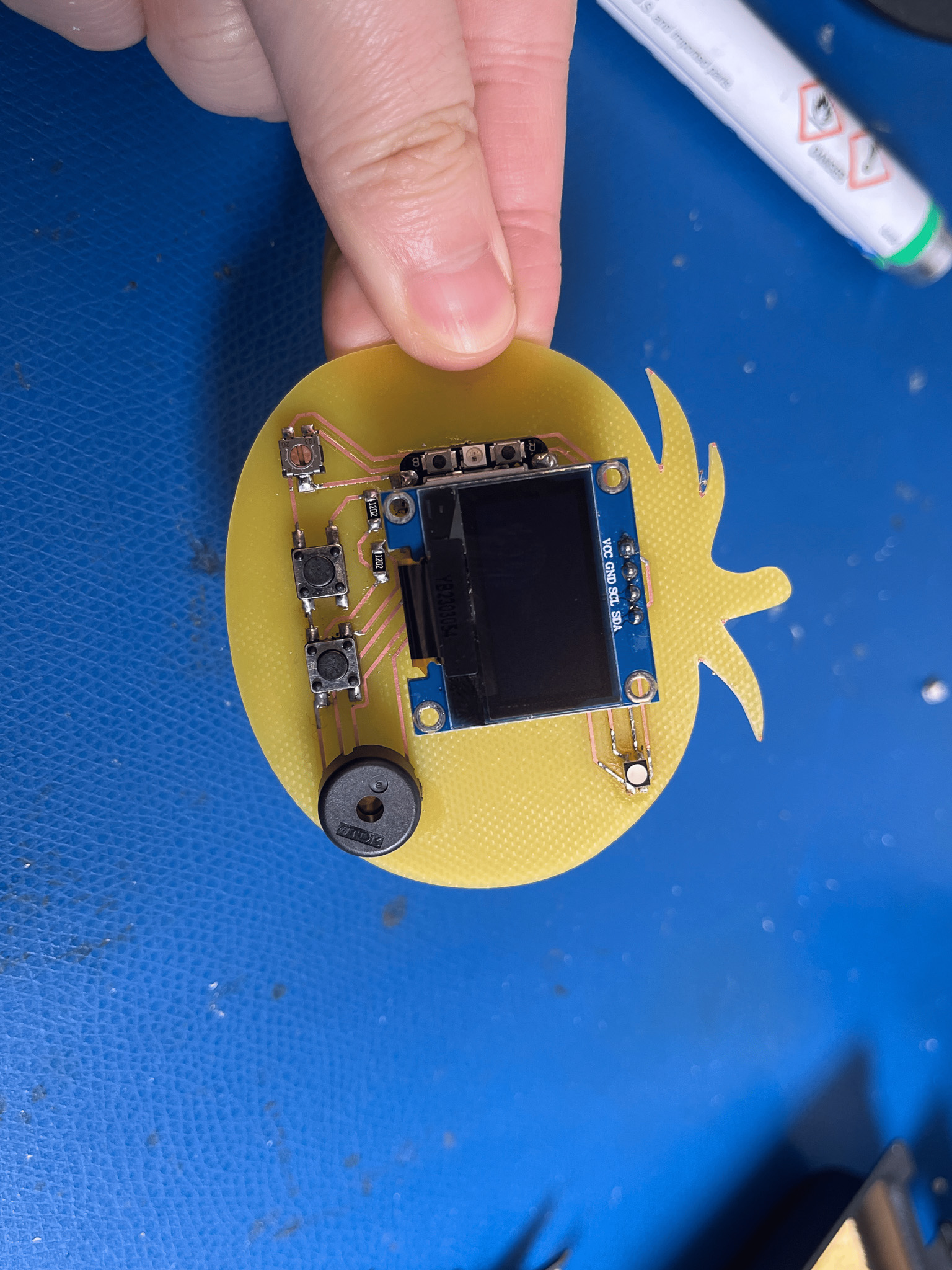

Programming

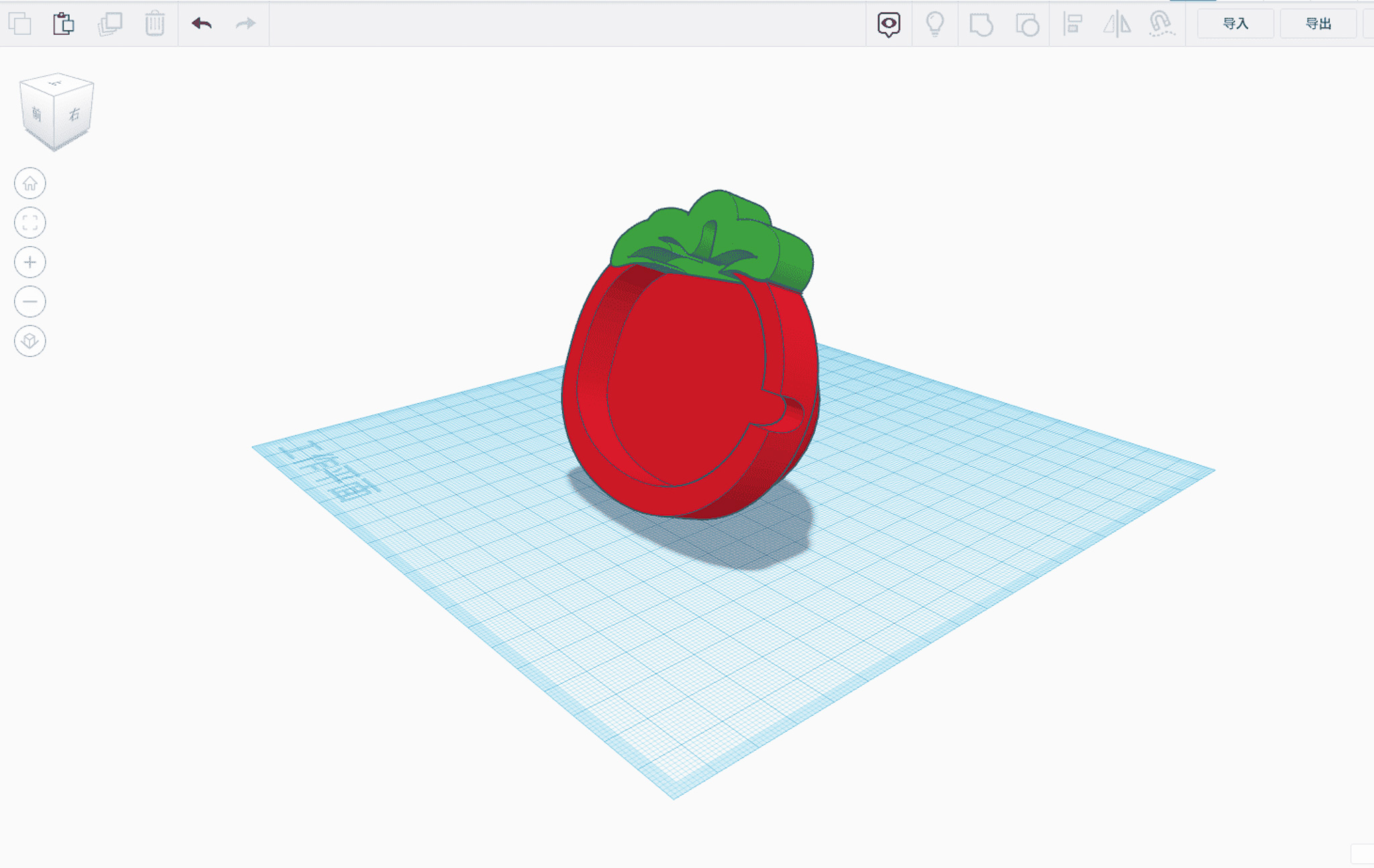

Design Case to Print (with TinkerCAD)(didn't work)

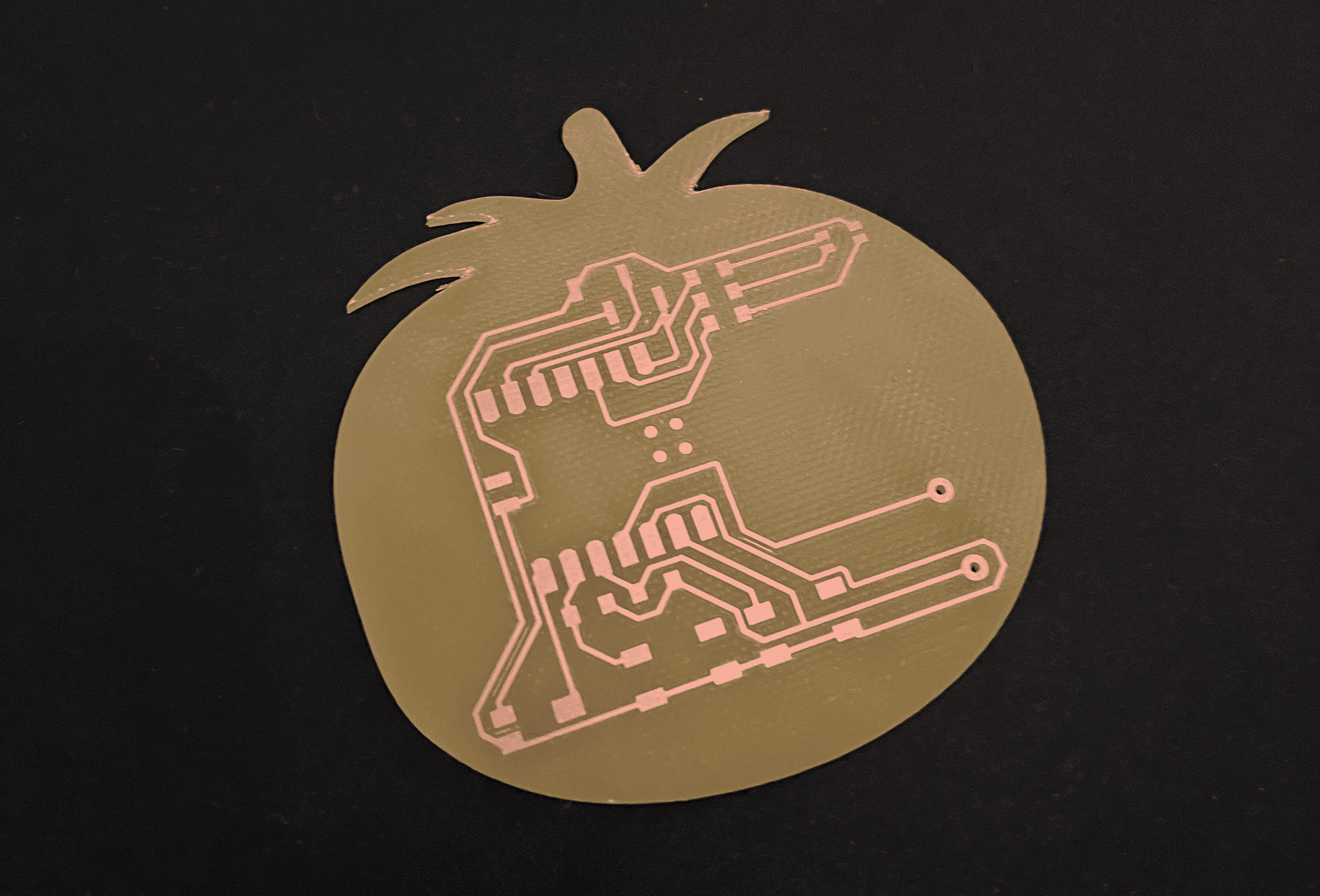

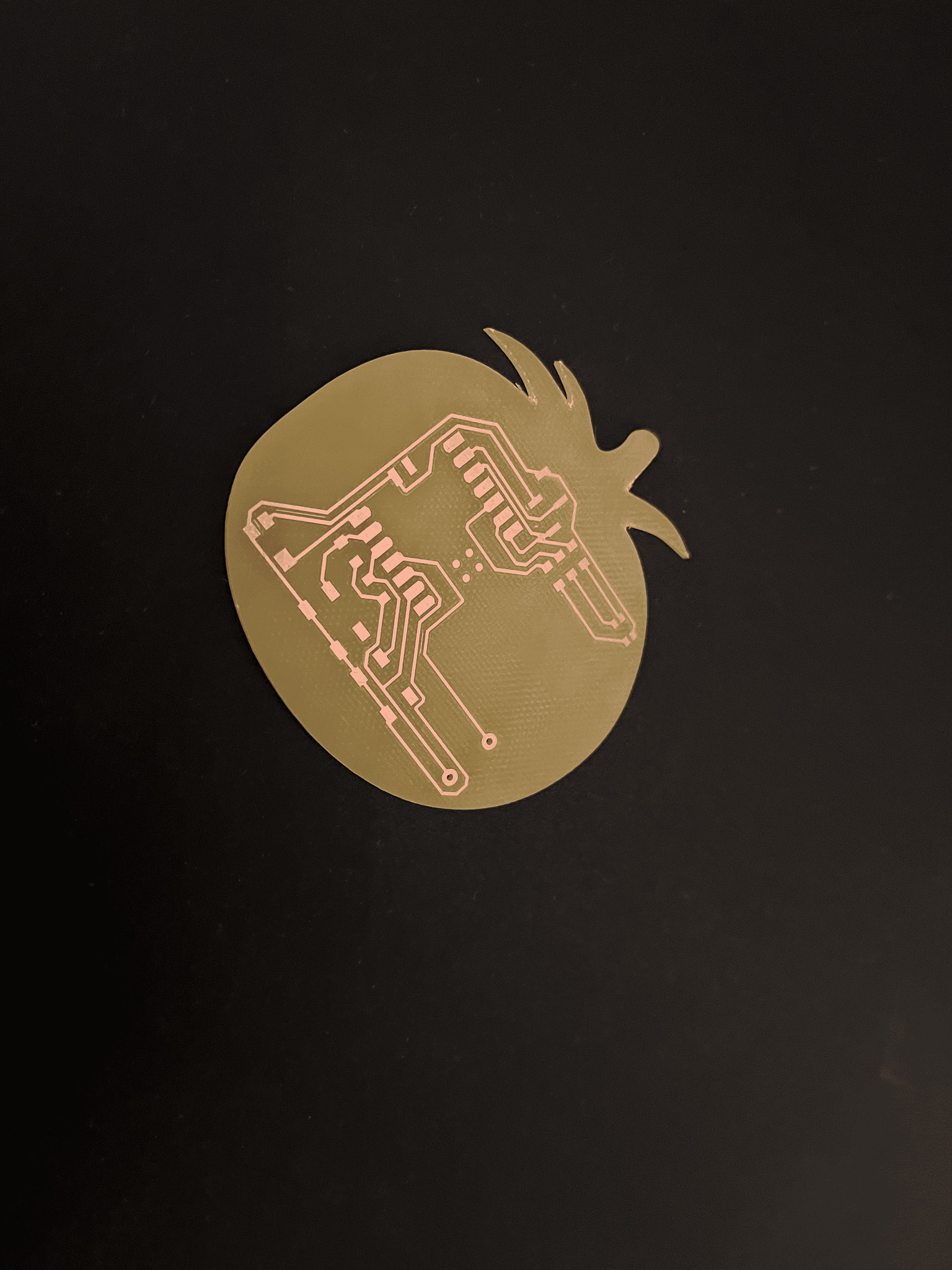

Outcome

alt text alt text alt text alt text alt text alt text alt text alt text alt text alt text alt text alt text alt text alt text alt text alt text alt text
