Training Session #1
- Time
- People
- Miranda, Ceci, Rui, Ben, Charlie, Awu
- Went over the manuals covering design and fabrication processes

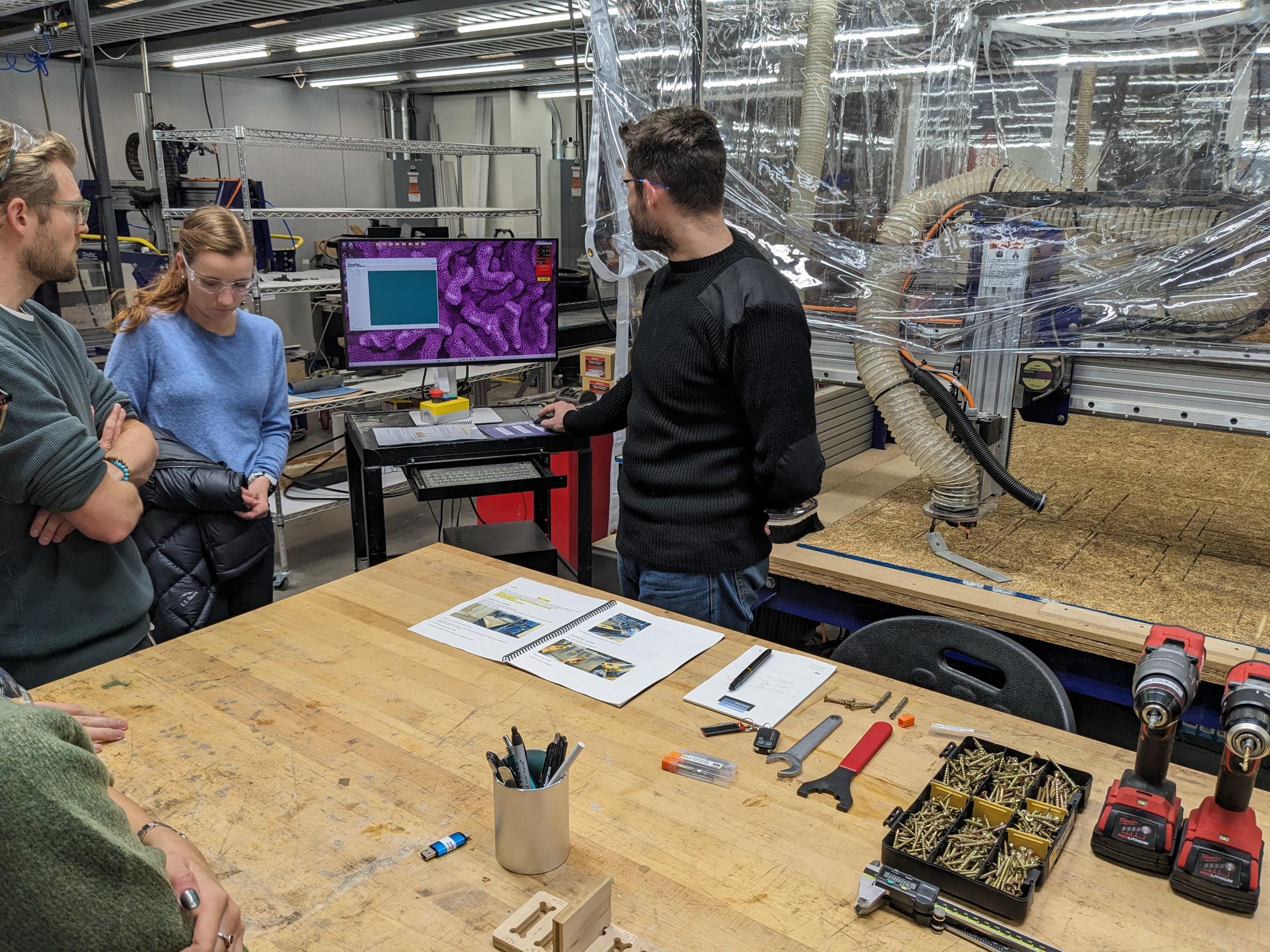

- Dan demonstrated the full process by drawing a rectangle in fusion and then milling it out
- Discussed important safety considerations

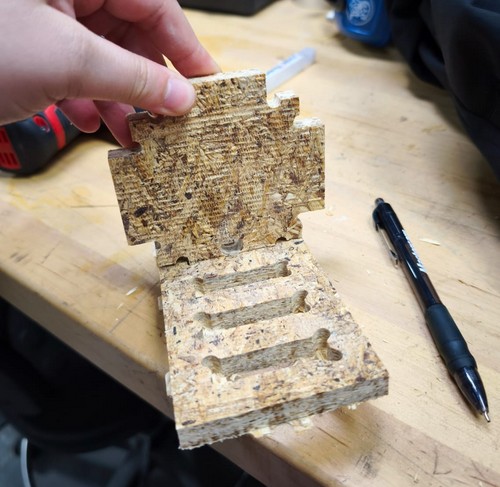

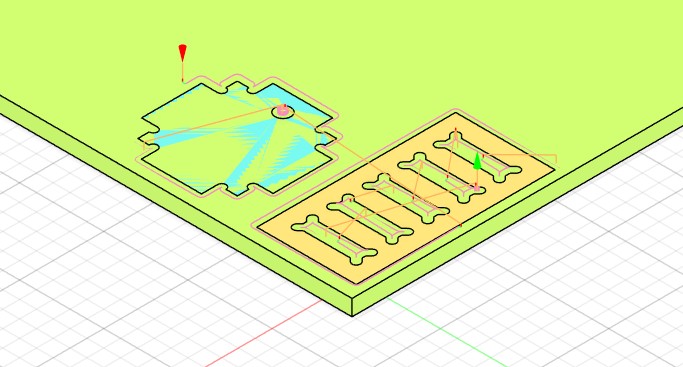

- We made a file for testing tolerance, using 45mm tabs. We had 5 holes with +-0.1mm and +-0.2mm. We then made the tabs with +-0.1 and -0.2mm.
- We found that using 45mm in the tab and +0.1 mm in the holes provided the best fit.
Training Session #2
- Time
- People
- Abby, Edward, Tyler, Matti, Jacqueline
- Largely covered the basics of the tool, pointed out that the key steps are listed in the manuals that are on the station and were sent to us
- Went over changing the tool and making sure we are using the proper up vs down cut endmills
- Talked about the stock orientation on the bed and how that needs to be set up in the CAM
- Discussed the jogging orientation and how to set the XYZ zeros
- Talked about the appropriate feeds and speeds to use for the job, also further reiterated at the recitation session
