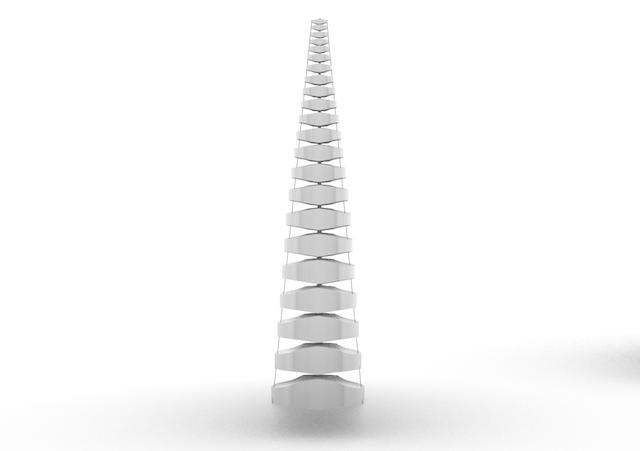

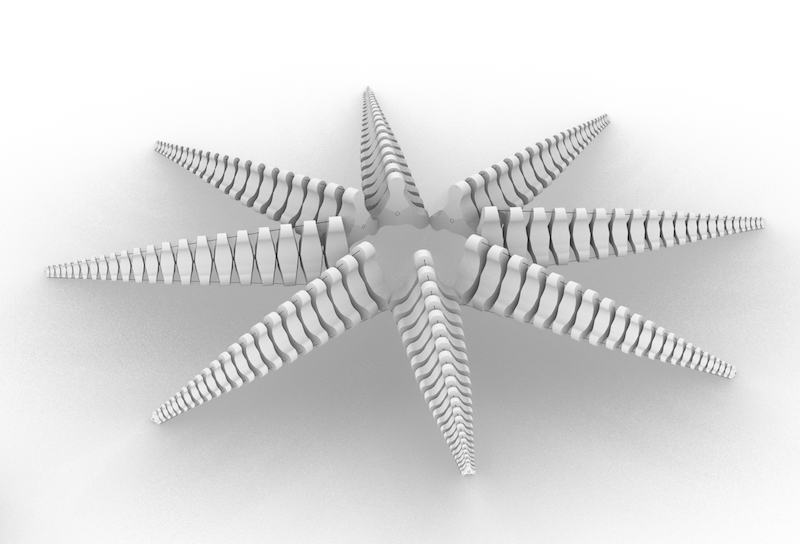

For my final project, I want to make something octopus-like. So, here are some modeled tentacles after SpiRobs' octopus robots.

I used Rhino and attempted to use Grasshopper. I am a lot more comfortable with Rhino right now, but I am learning. I'd also like to get better at Fusion because it honestly seems so much easier. But here are some images of my CAD models!

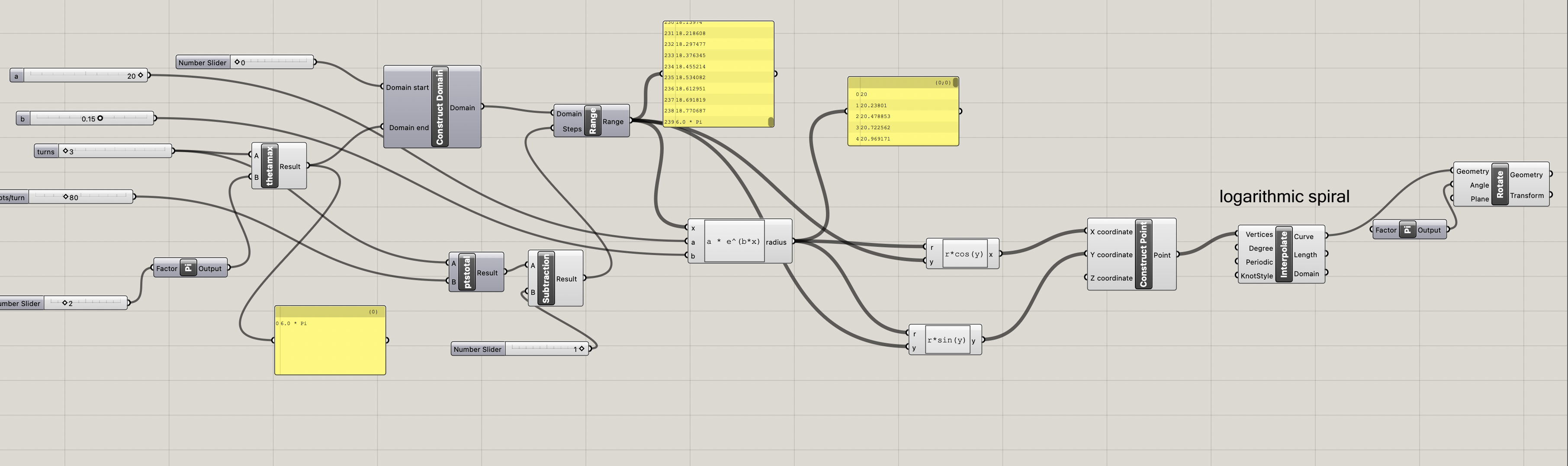

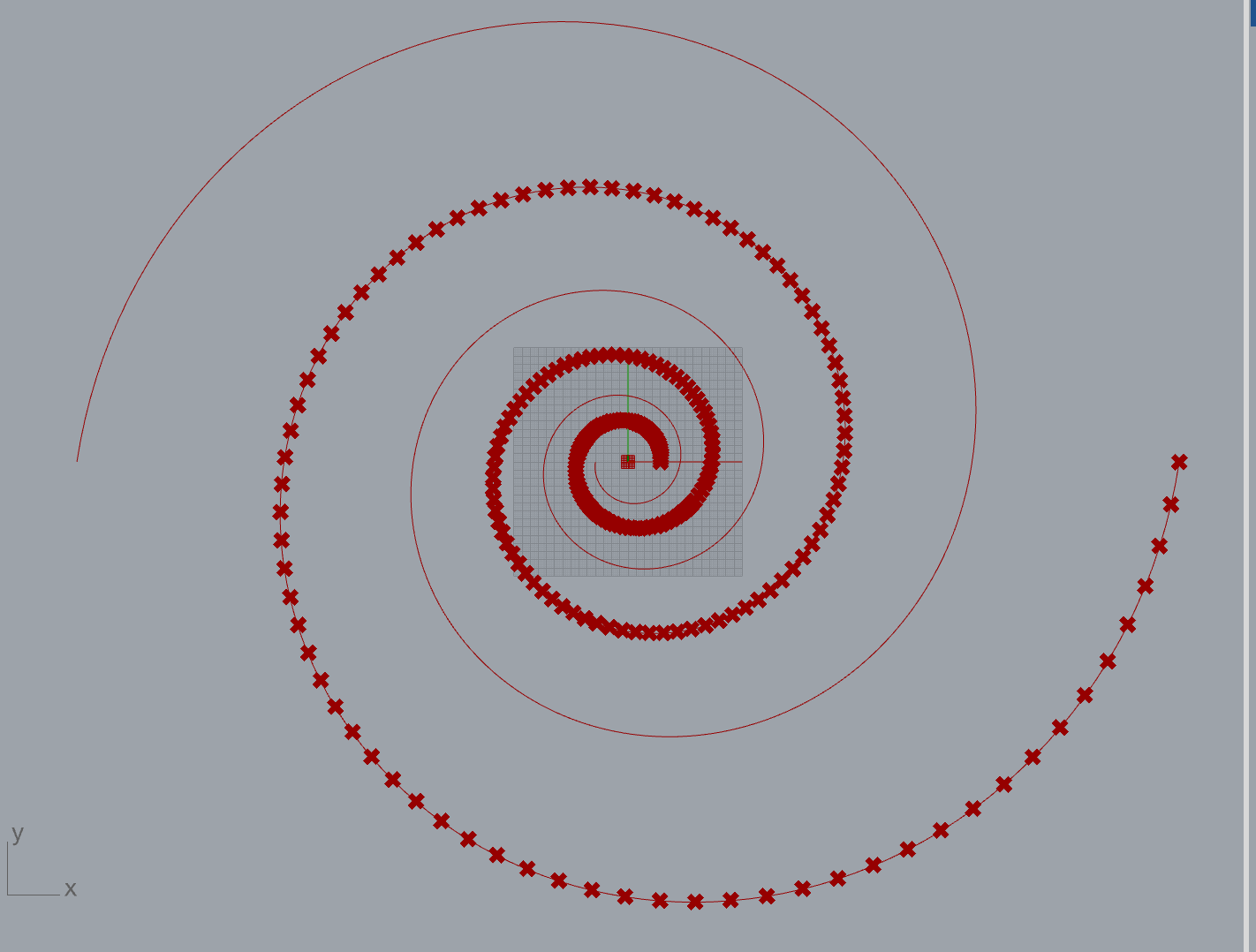

I used Grasshopper to help me generate a logarithmic spiral using an expression a*e^(b*x)




But I ended up not using it... because I couldn't figure out how make my tentacles within the lines.. or also how to figure out the angle.
So I ended up just kind of doing it based on what I felt like was a decent angle.

files:
Rhino
Grasshopper
