week 14:wild week


Embroidery

For this week’s assignment, which was the “wild week,” we were given the freedom to choose from a variety of projects to explore. I decided to participate in the embroidery session because I have a strong interest in fabrics and the different techniques used to produce them. Embroidery offered a hands-on opportunity to understand how patterns and textures are created on textiles, and how design ideas can be translated into physical forms. Working with threads, needles, and fabric allowed me to see the precision and care required for detailed work, as well as the creative possibilities that emerge when combining color, texture, and structure. This session also provided insight into both traditional craftsmanship and modern techniques in textile production, helping me appreciate the skill involved and inspiring new ideas for incorporating fabric-based techniques into future projects.


14.1
My inspiration was an image taken by a greek photographer called Takis Tloupas.
14.2

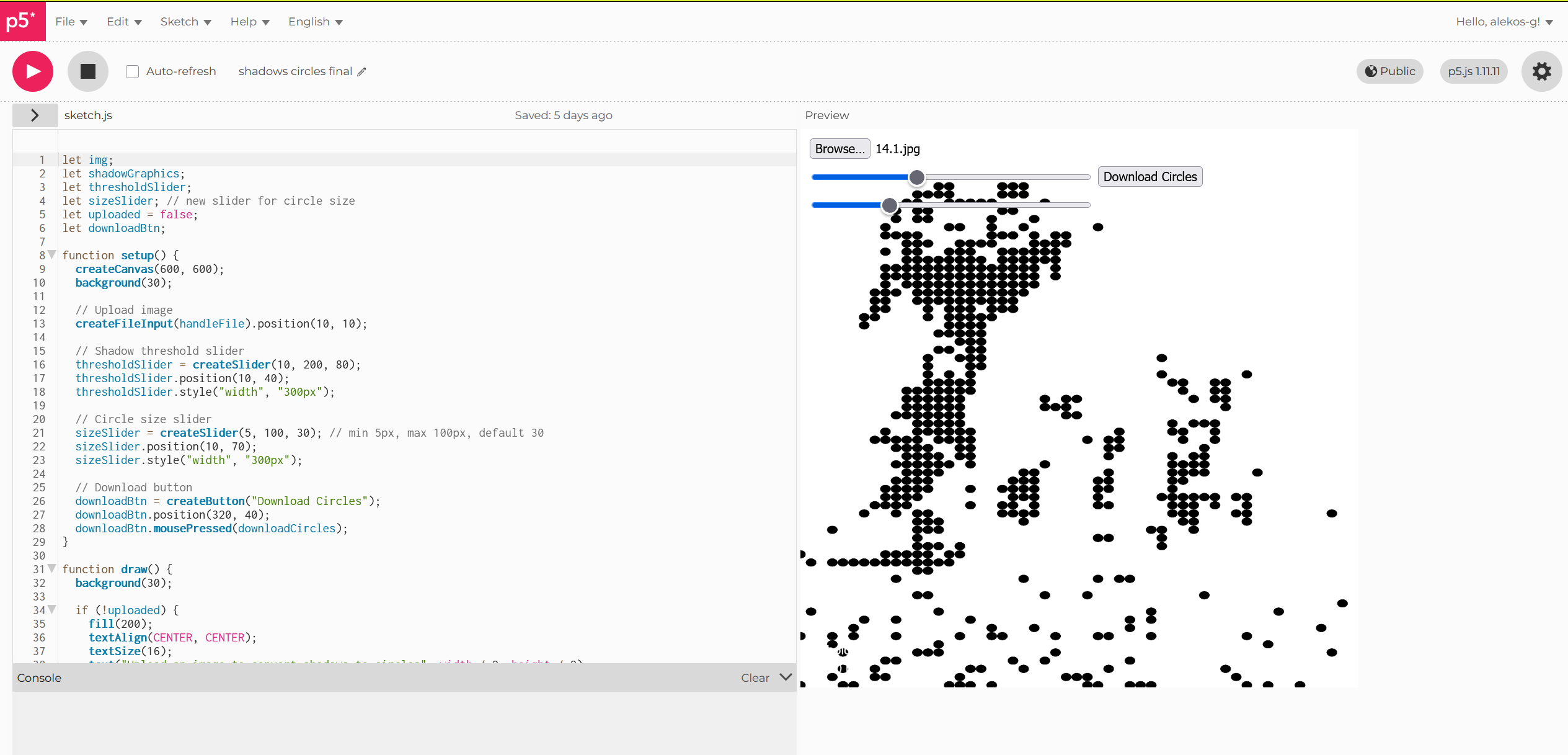

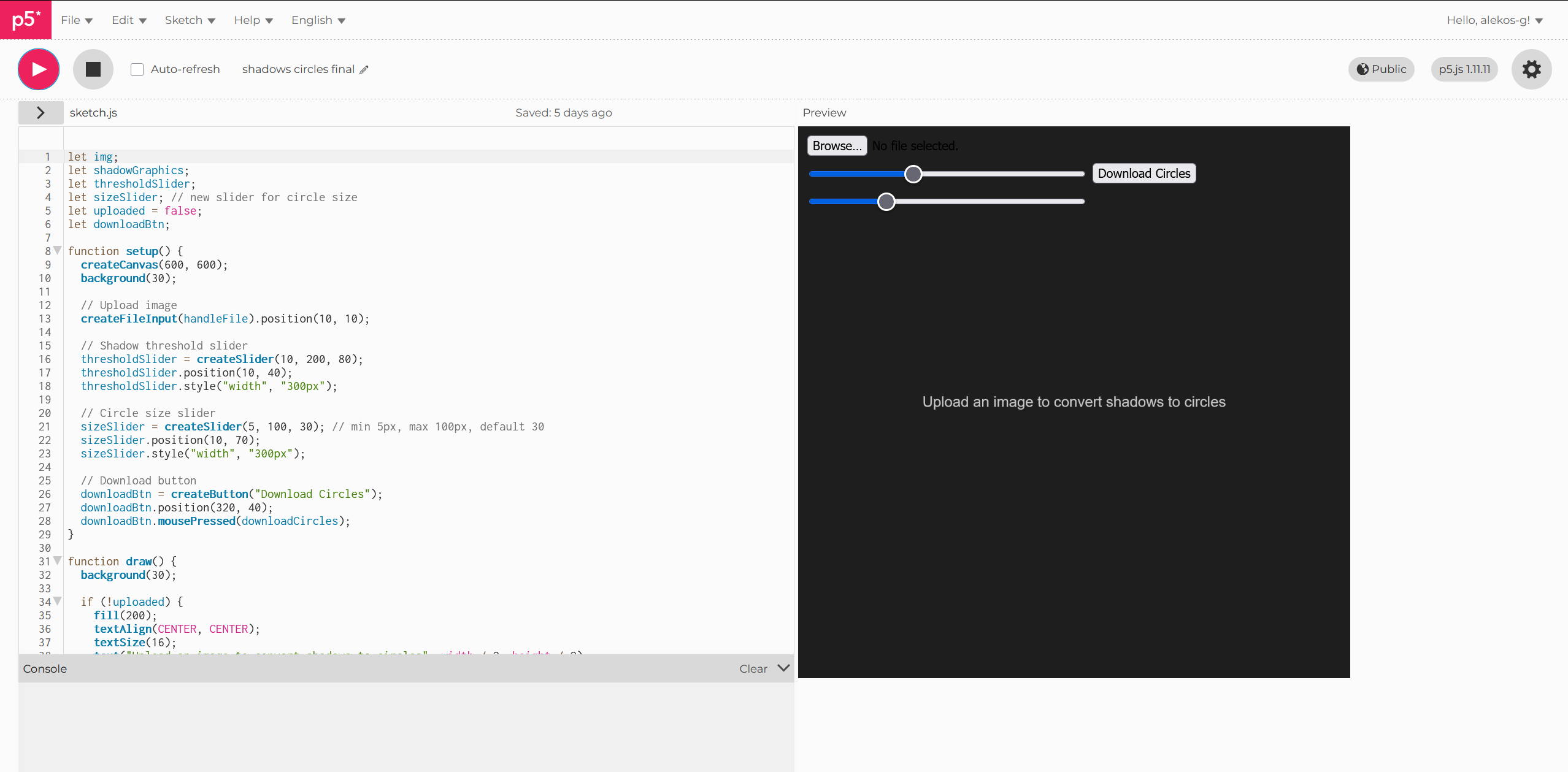

I wrote a code at p5.js to isolate the shadows of a given image and transform them into circles. The code was able to change the size and the density of the circles
14.3
14.5
chosen image
14.6

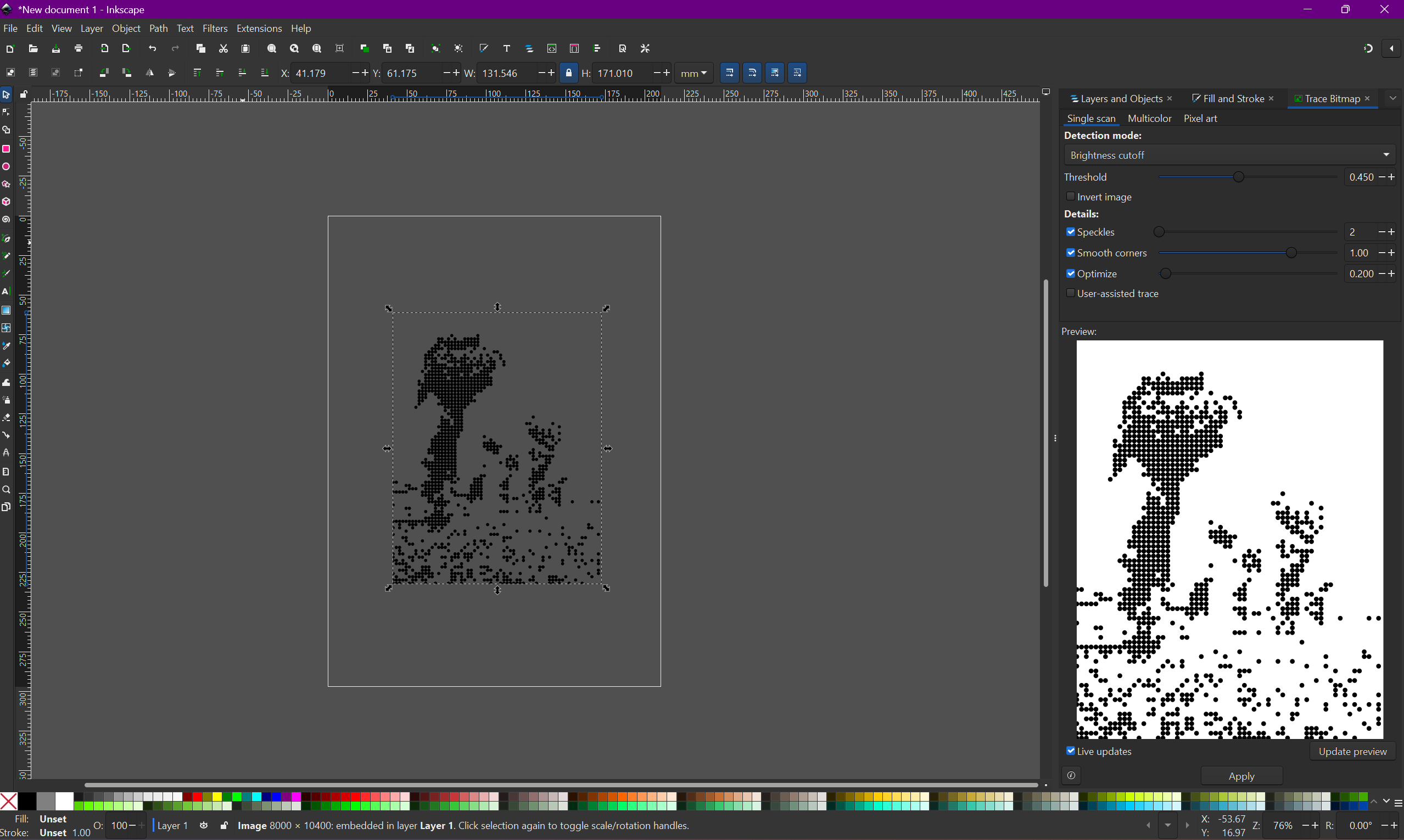

I also imported the image to inkscape to convert it to a vector file that the embroidery machine could read.In order to do that inkstich extension was used
14.7

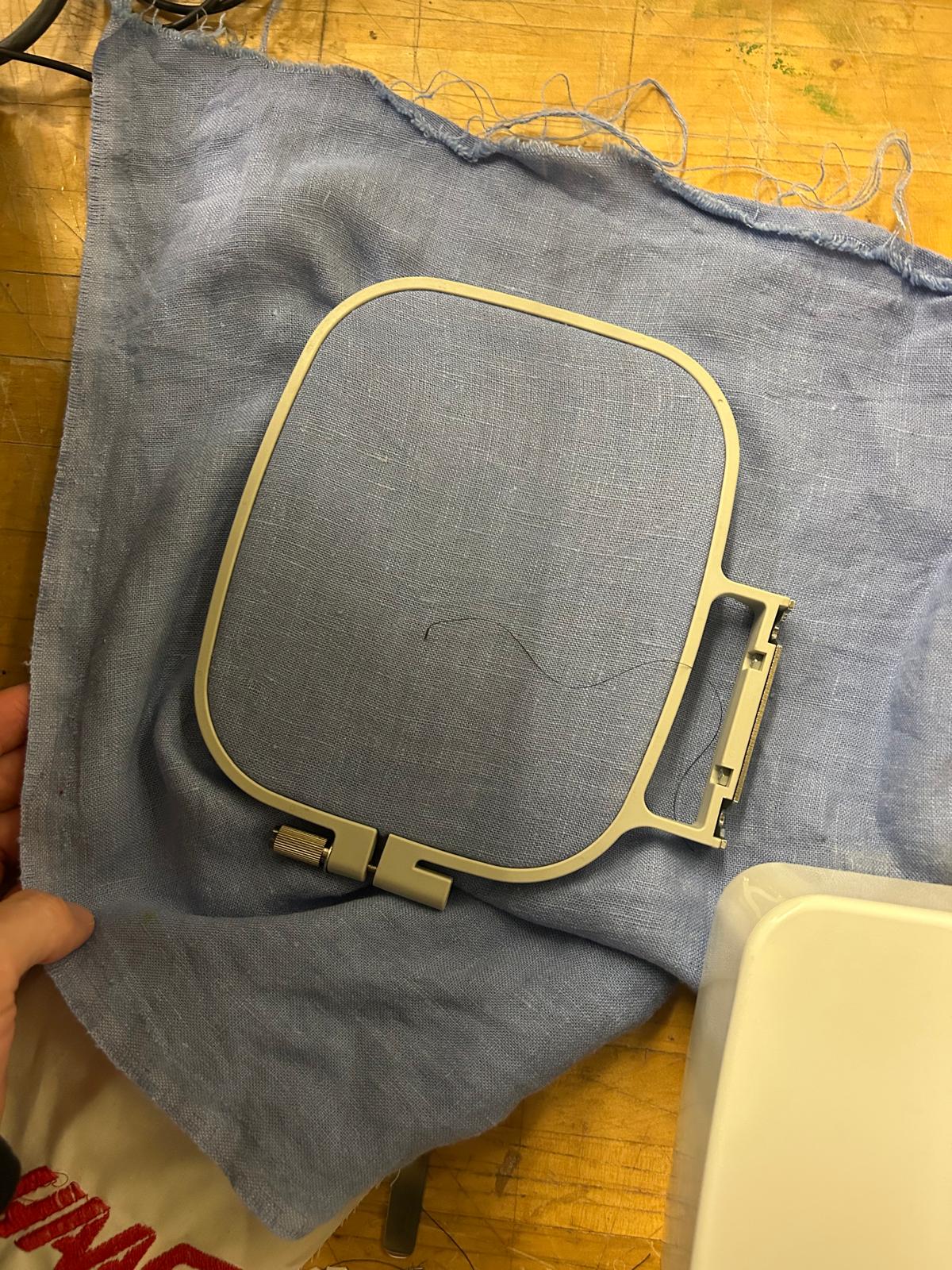

I prepared thw fabric and the threads for the embroidery machine

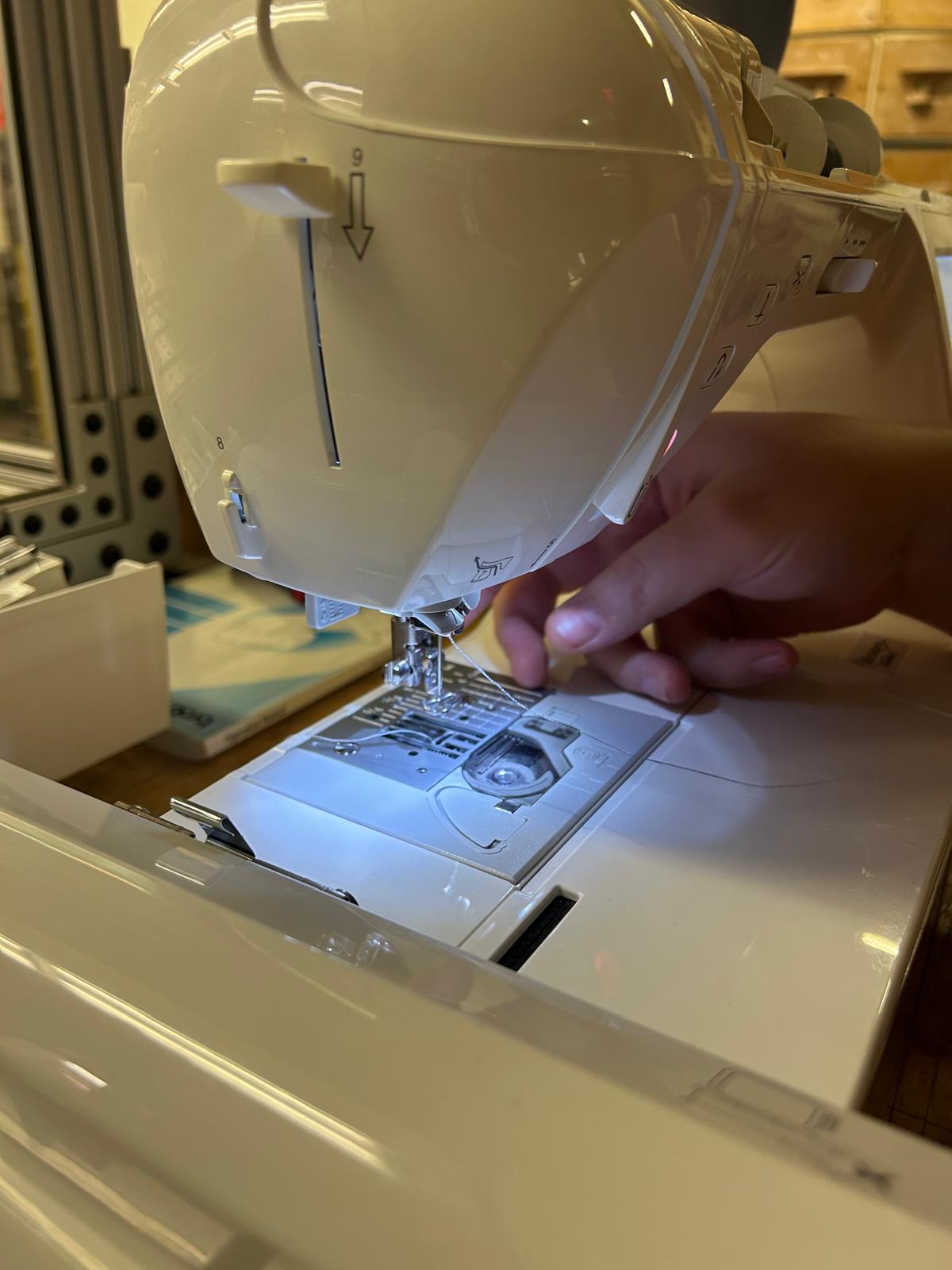

14.8

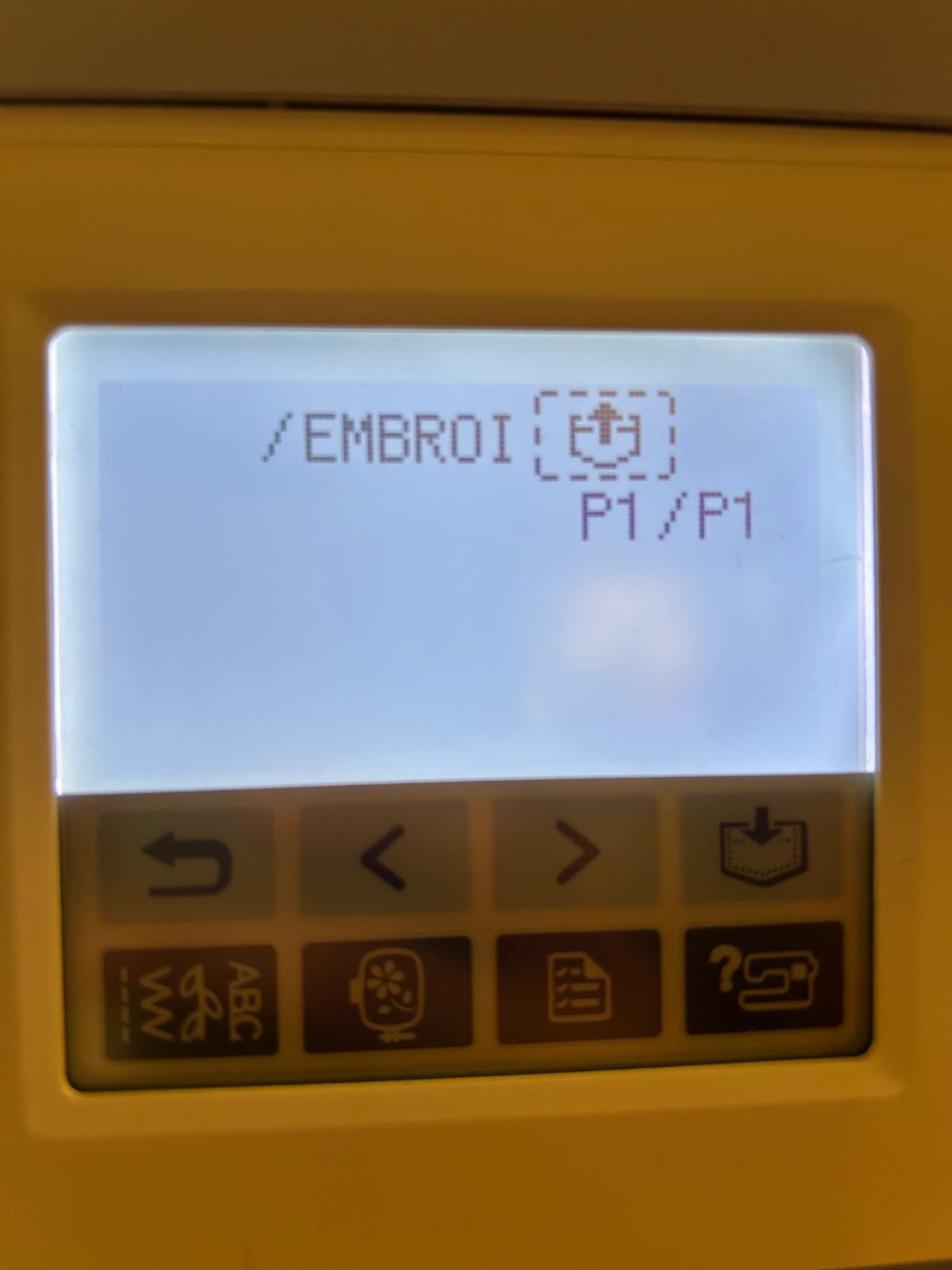

14.9

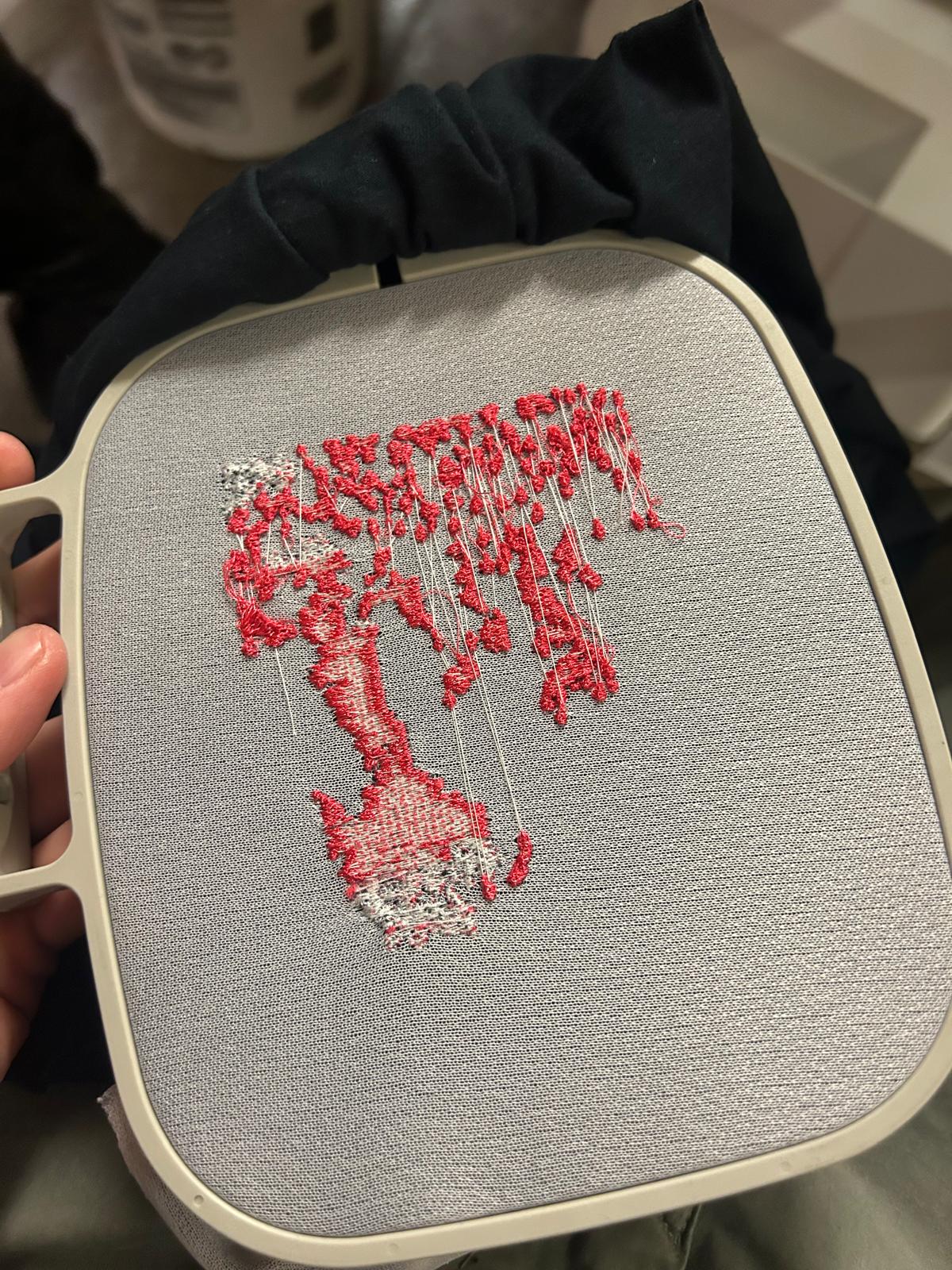

while I was trying to upload the file I came across a lot of issues with the machine. One of them is that the machinewas unable to read my file

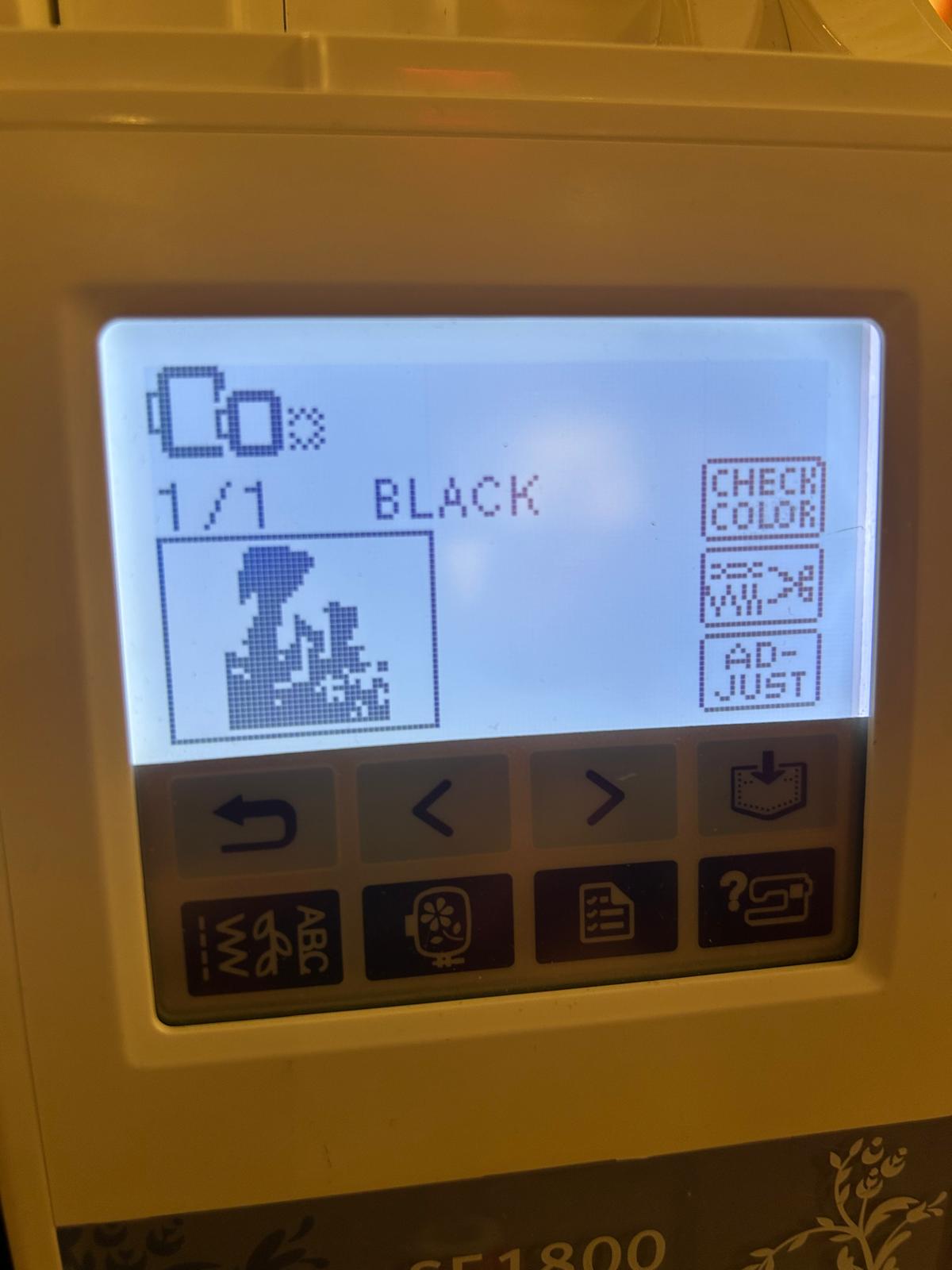

14.10

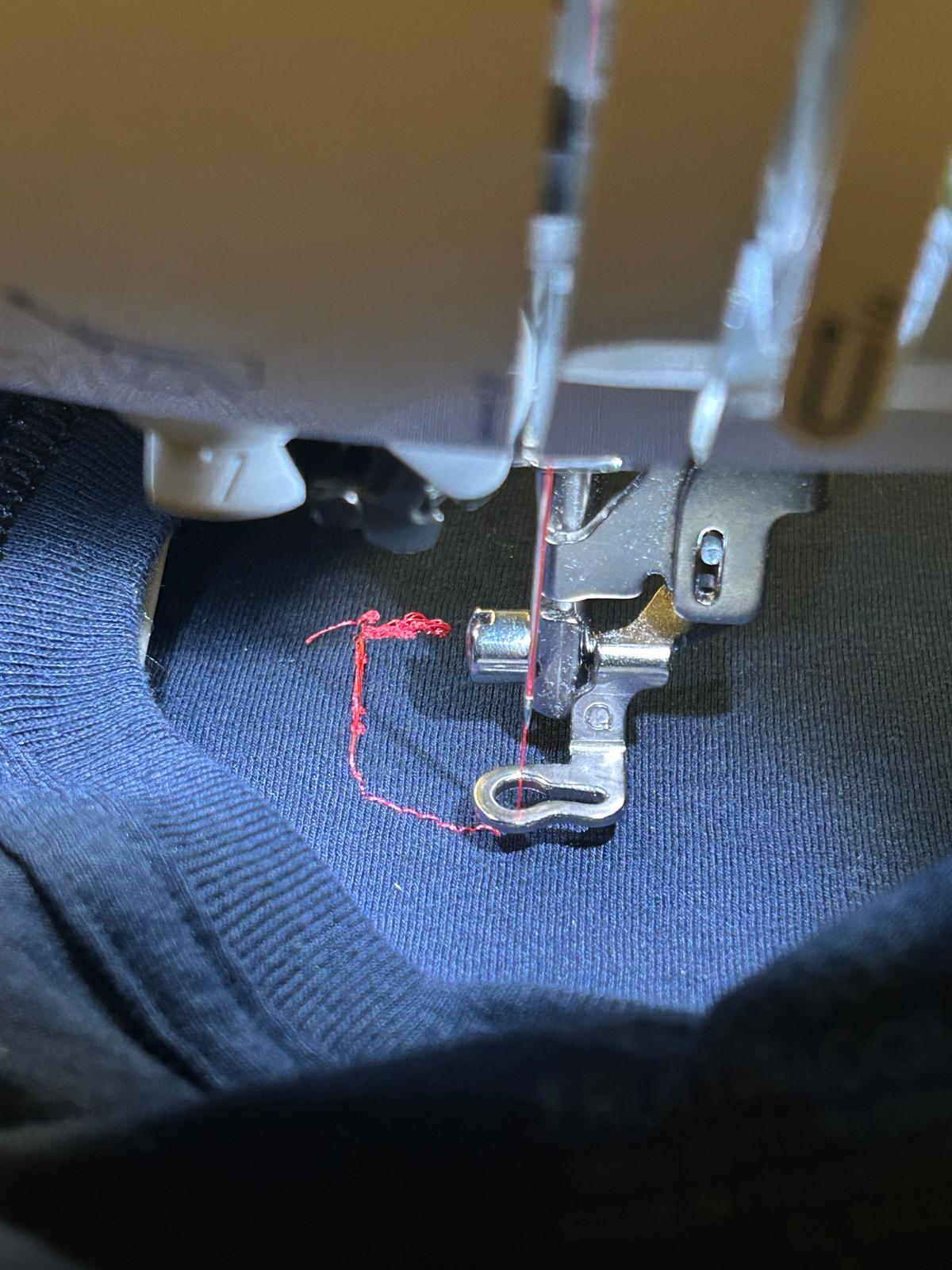

14.11

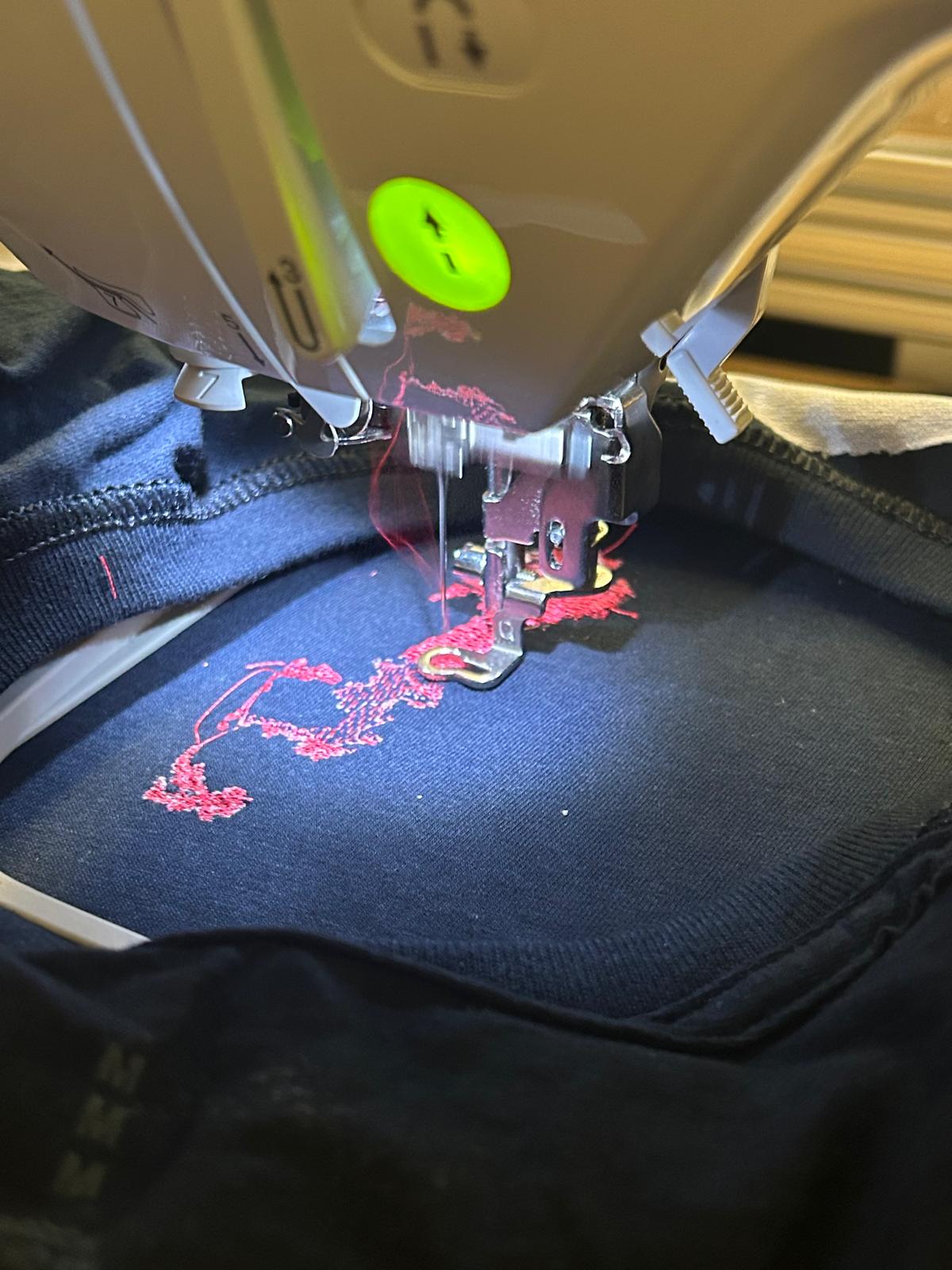

14.12

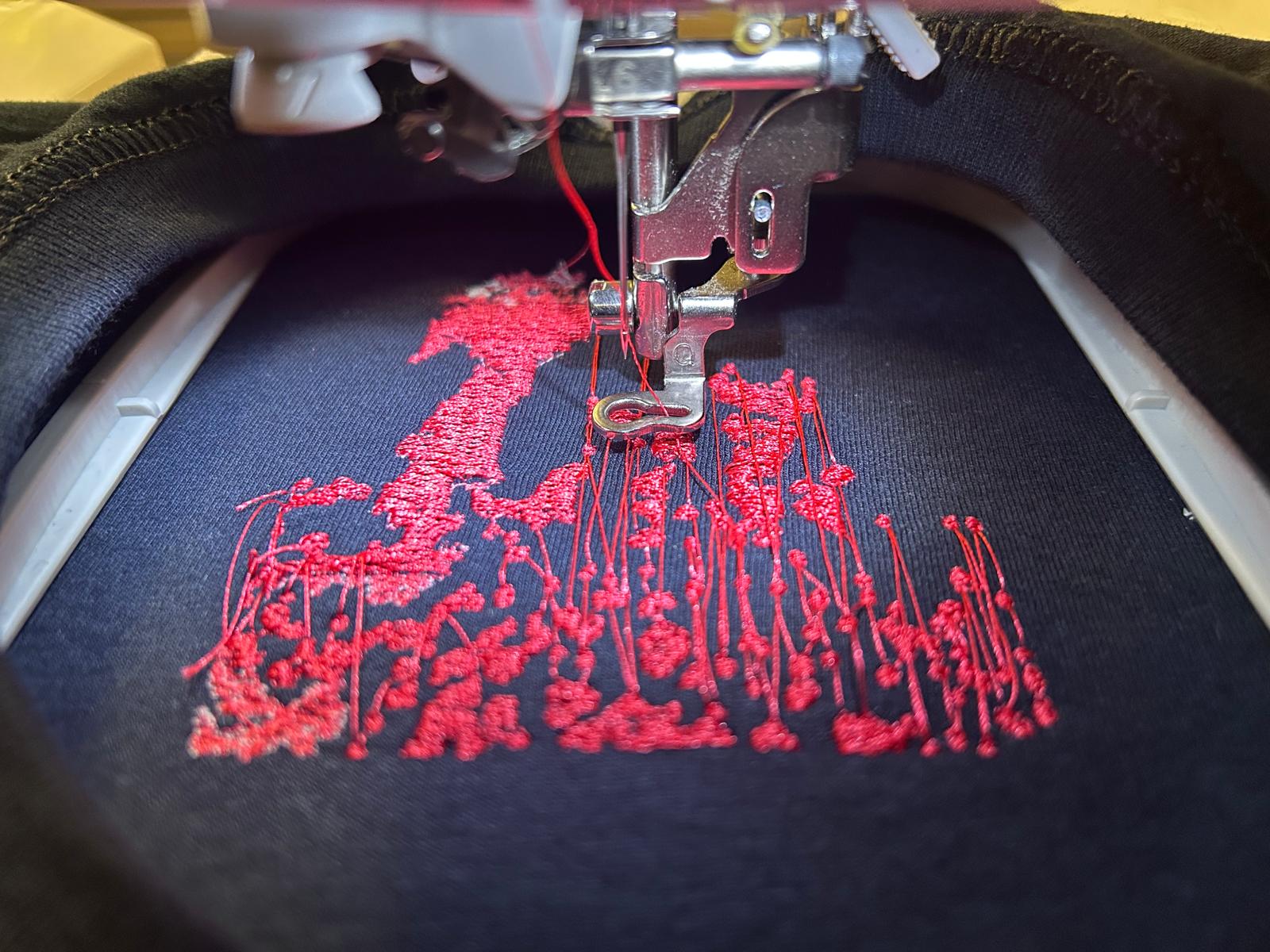

14.13

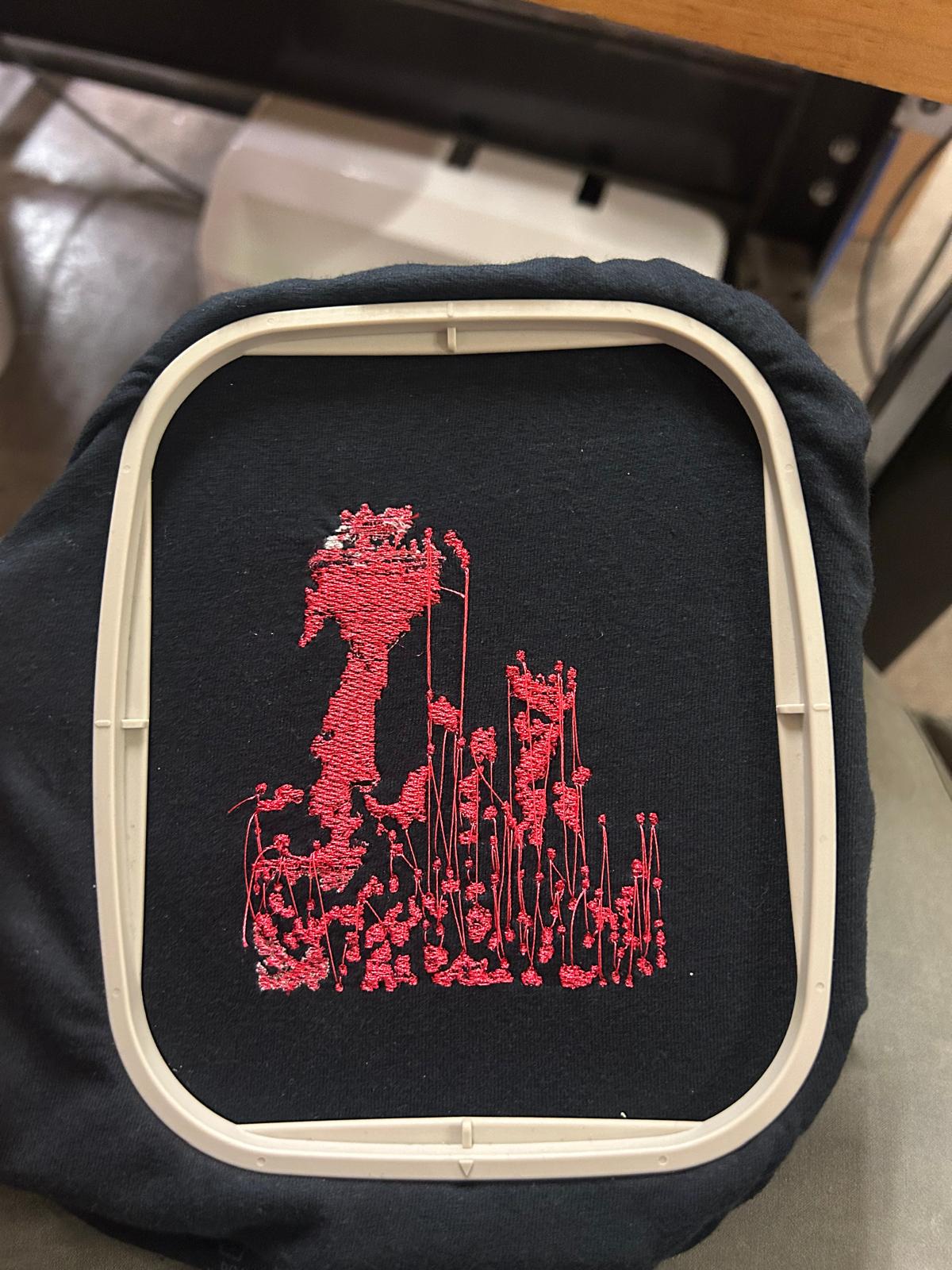

14.14
14.15
14.16

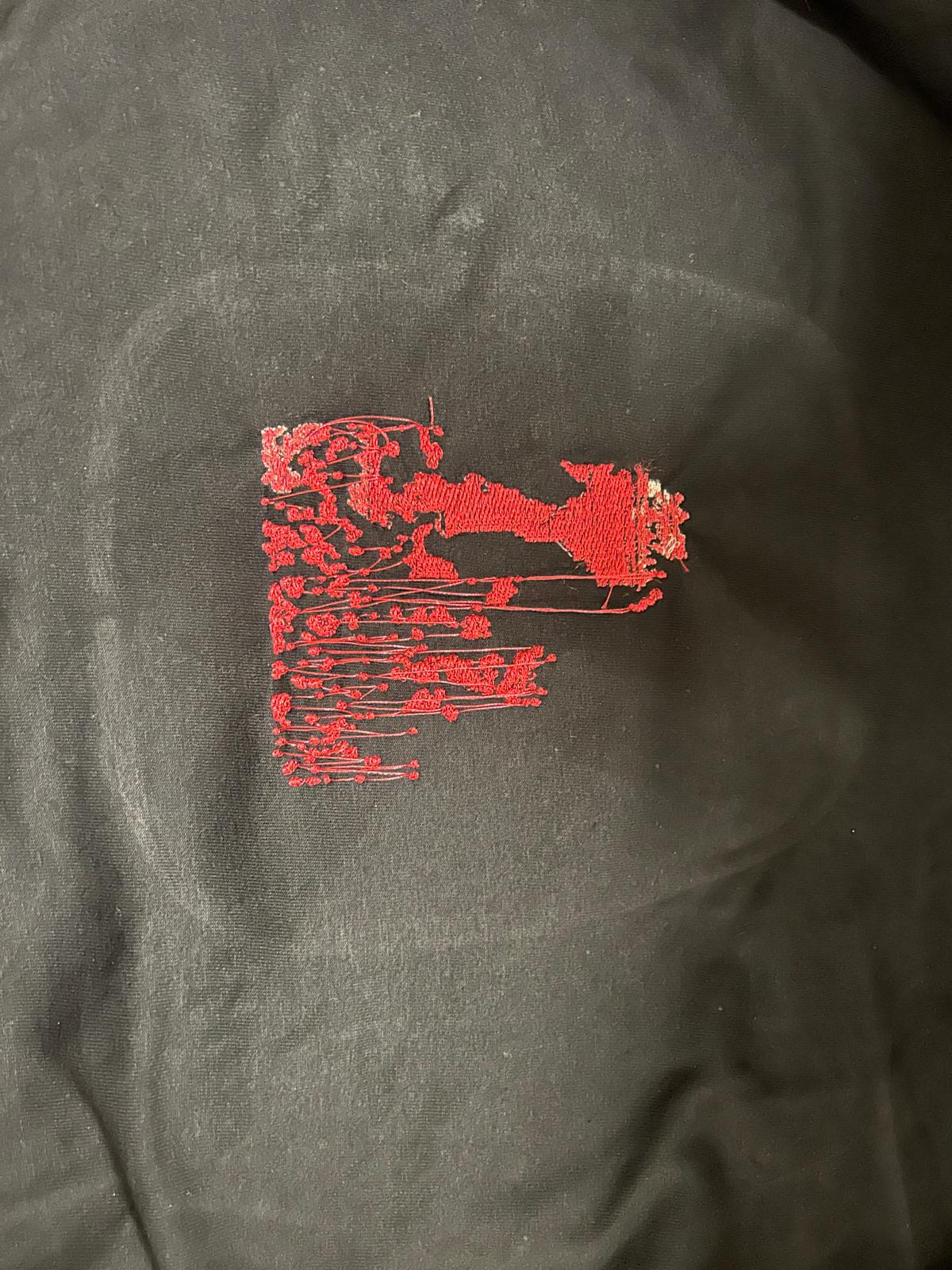

14.17
final result

p5.js code for isolating shadows

let img;
let shadowGraphics;
let thresholdSlider;
let sizeSlider; // new slider for circle size
let uploaded = false;
let downloadBtn;

function setup() {
  createCanvas(600, 600);
  background(30);

  // Upload image
  createFileInput(handleFile).position(10, 10);

  // Shadow threshold slider
  thresholdSlider = createSlider(10, 200, 80);
  thresholdSlider.position(10, 40);
  thresholdSlider.style("width", "300px");

  // Circle size slider
  sizeSlider = createSlider(5, 100, 30); // min 5px, max 100px, default 30
  sizeSlider.position(10, 70);
  sizeSlider.style("width", "300px");

  // Download button
  downloadBtn = createButton("Download Circles");
  downloadBtn.position(320, 40);
  downloadBtn.mousePressed(downloadCircles);
}

function draw() {
  background(30);

  if (!uploaded) {
    fill(200);
    textAlign(CENTER, CENTER);
    textSize(16);
    text("Upload an image to convert shadows to circles", width / 2, height / 2);
    return;
  }

  // Draw the circles representing shadows
  image(shadowGraphics, 0, 0, width, height);

  fill(255);
  noStroke();
  textSize(14);
  text("Shadow threshold: " + thresholdSlider.value(), 10, height - 40);
  text("Circle size: " + sizeSlider.value() + " px", 10, height - 20);
}

// Handle uploaded file
function handleFile(file) {
  if (file.type === "image") {
    img = loadImage(file.data, () => {
      processShadowsToCircles();
      uploaded = true;
    });
  }
}

// Convert shadow pixels to circles
function processShadowsToCircles() {
  if (!img) return;

  shadowGraphics = createGraphics(img.width, img.height);
  shadowGraphics.background(255); // white background
  shadowGraphics.noStroke();
  shadowGraphics.fill(0); // black circles

  img.loadPixels();
  let threshold = thresholdSlider.value();
  let circleSize = sizeSlider.value();

  for (let y = 0; y < img.height; y += circleSize) {
    for (let x = 0; x < img.width; x += circleSize) {
      let index = (x + y * img.width) * 4;
      let r = img.pixels[index];
      let g = img.pixels[index + 1];
      let b = img.pixels[index + 2];

      let brightnessValue = (r + g + b) / 3;

      if (brightnessValue < threshold) {
        // Draw circle at this position
        shadowGraphics.ellipse(x, y, circleSize, circleSize);
      }
    }
  }
}

// Re-process if threshold or circle size changes
function mouseReleased() {
  if (uploaded) processShadowsToCircles();
}

// Download result
function downloadCircles() {
  if (shadowGraphics) shadowGraphics.save("shadow_circles.png");
}
