06. COMPUTER CONTROLLED MACHINING

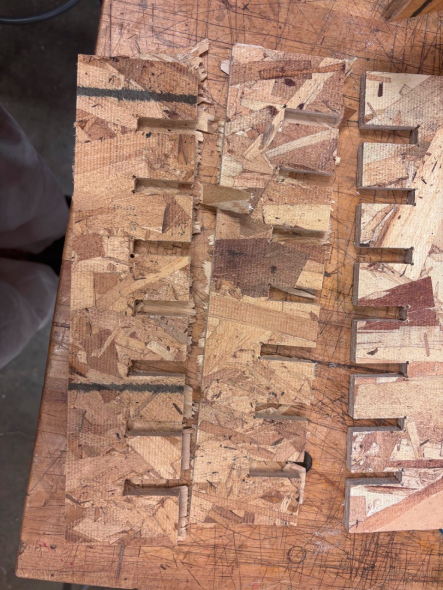

GROUP WORK
Softwares: Fusion 360, Rhino 8, MasterCAM, Illustrator
Devices: CNC milling machine, Routing table, Band saw, Elliptical Sander, and hand tools.
Files: TableandKeyRack.3dm
Devices: CNC milling machine, Routing table, Band saw, Elliptical Sander, and hand tools.
Files: TableandKeyRack.3dm
FIRST ASSEMBLY
POST PROCESSING
FINAL PIECE
CNC AND ROUTING
CAD AND MASTERCAM
TRIALS & TRIBULATIONS
LESSONS LEARNED
A few years back, a friend taking this class made me a table with drips
along the edge but I lost it in my most recent move! So for this assignment,

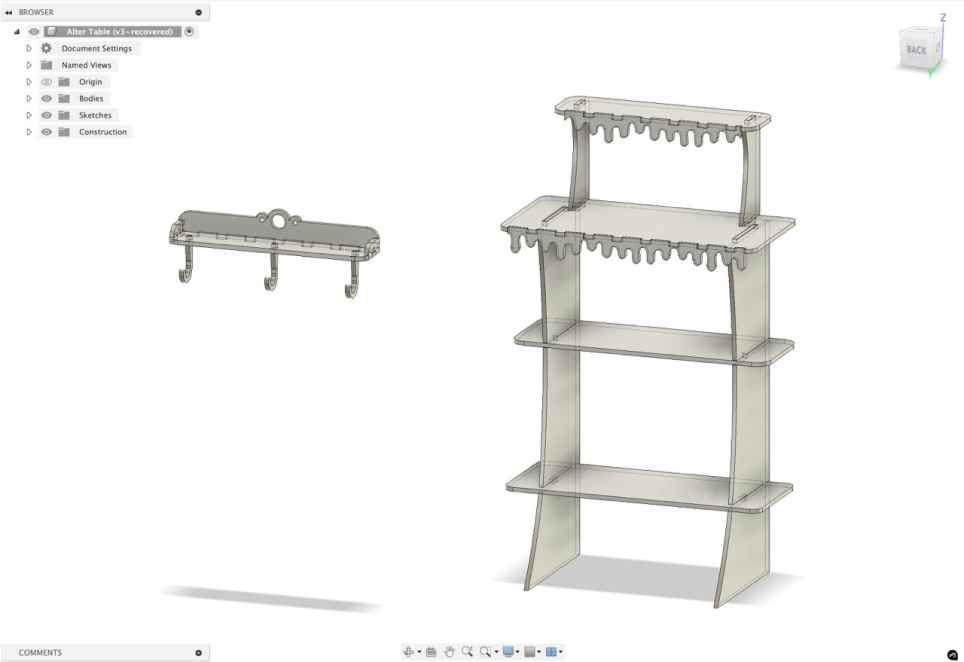

I decided to recreate this table in a new way. To start, I used fusion to
model my table with drips long the edge and later modeled a simple
wall-hanging key or hat rack.
I modeled it to .45” wood thickness.
I modeled it to .45” wood thickness.

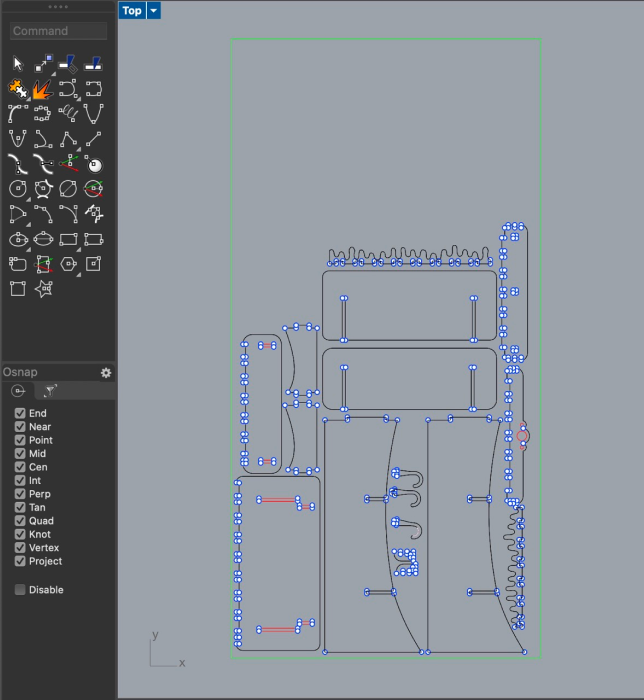

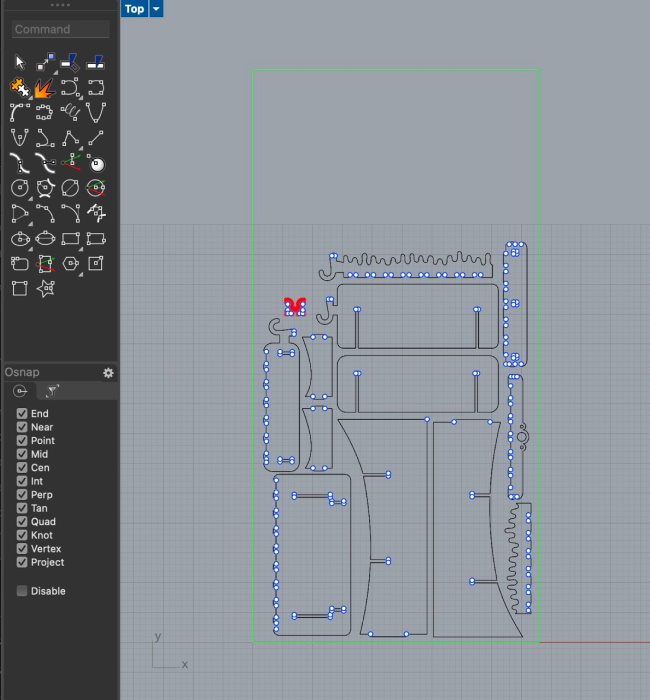

I then sent the files to Rhino 8 to make my dxf files. I used the
Silhouette
command to get the outlines of my 3D wood pieces. After getting some
feedback from Jen and Chris, I made sure the parts thickness was .43”
instead for the joints, and that all my smaller parts such as the hooks
and end arms for the key rack were either large enough not to break
while CNCing or attached to a larger anchor piece.

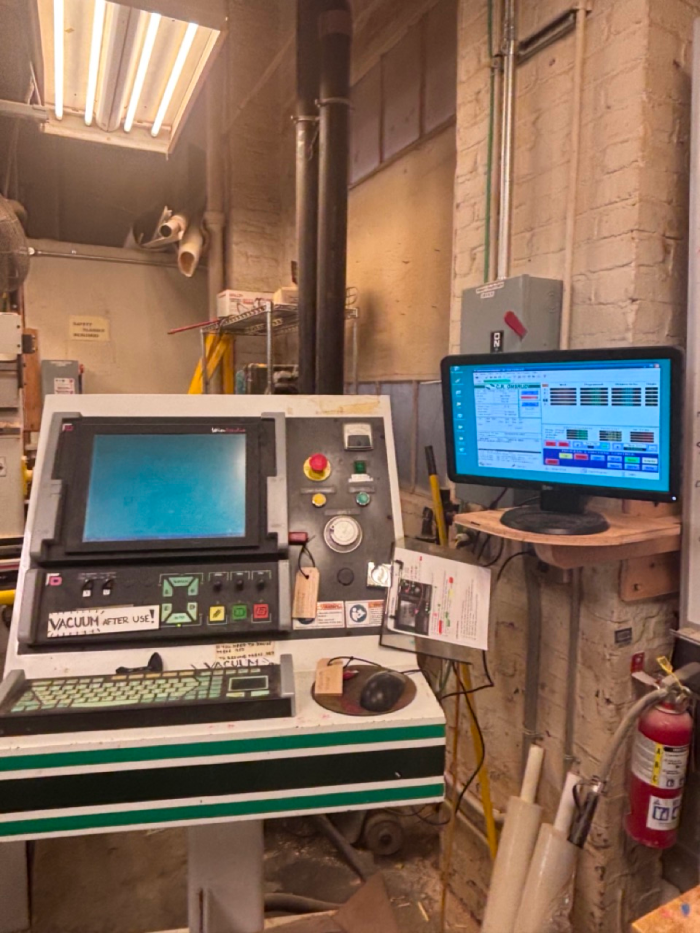

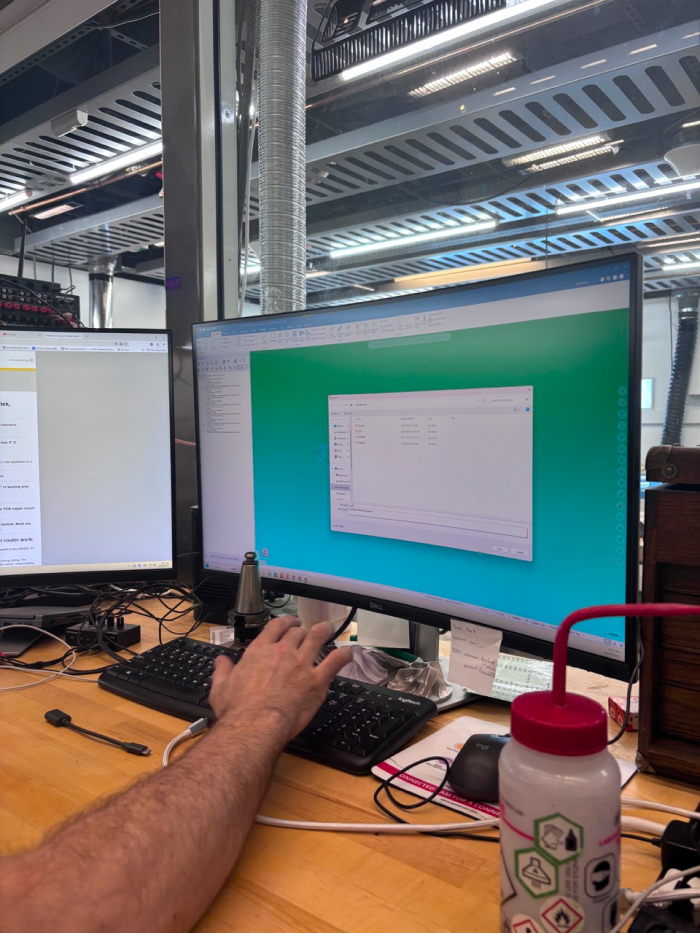

Then we sent the files to MasterCam. The only issue we came across was one
of the pieces being a surface, which resulted in double lines. But once
everything was single lines, we set the 3 tool paths and made sure the end
mills were going counterclockwise around the outside of each shape.

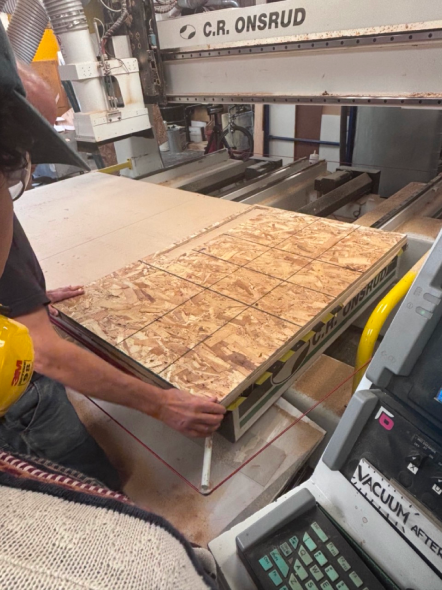

The cut took 28 minutes and used up about 70% of the OSB board.
Before
After
Milling Pass 1 - larger end mill
Milling Pass 2 - 1/8th in end mill - Clean up
Drill Pass
Then after shaking off my cut of sawdust and vacuuming a little, I began to
clean up my pieces so that I could test the fit. I used the routing table to
clean up all edges. It was fun to route along the curves, and was a cool
challenge to try to get the smaller edges of things like hooks. I also used
a bandsaw to detach connecting pieces and was finally left with cleaner
pieces.

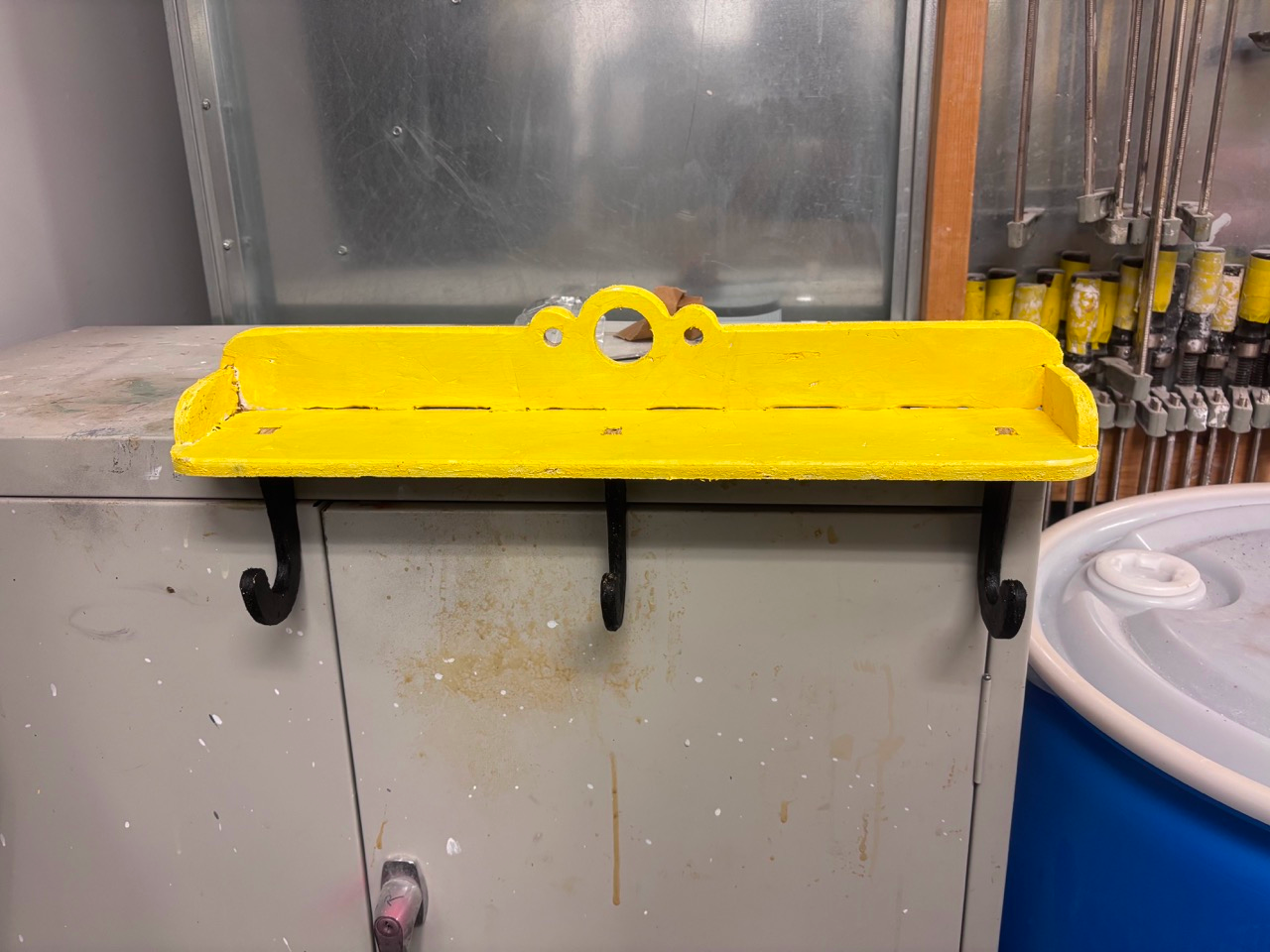

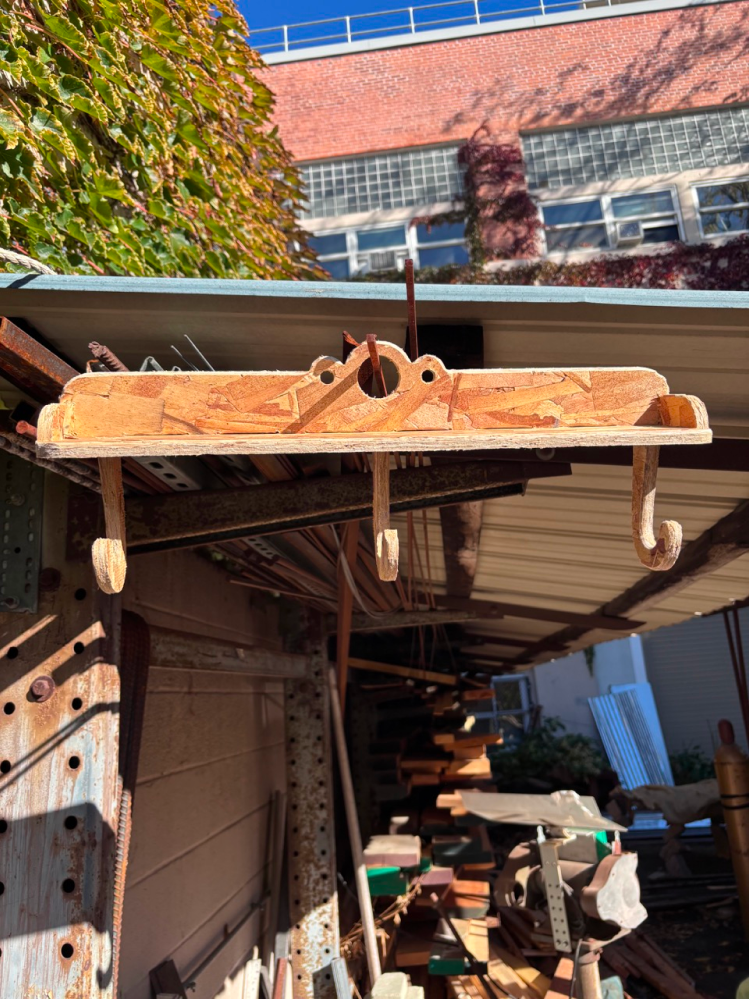

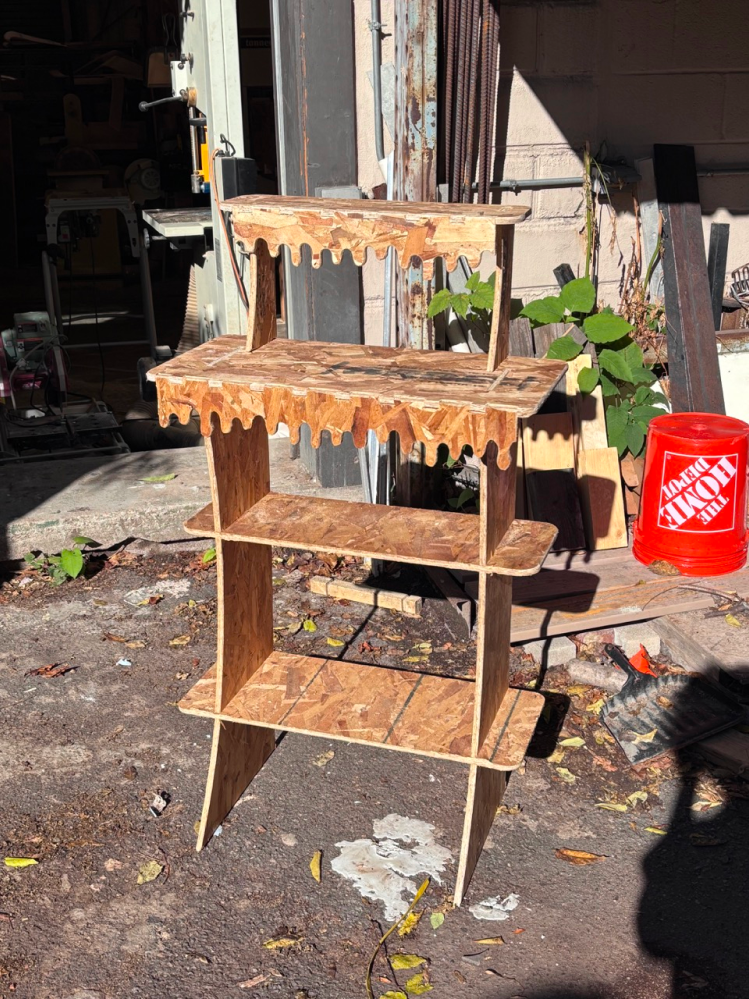

All the pieces fit - Yay!!!! The key rack was a little bigger than I
expected but I don’t mind.

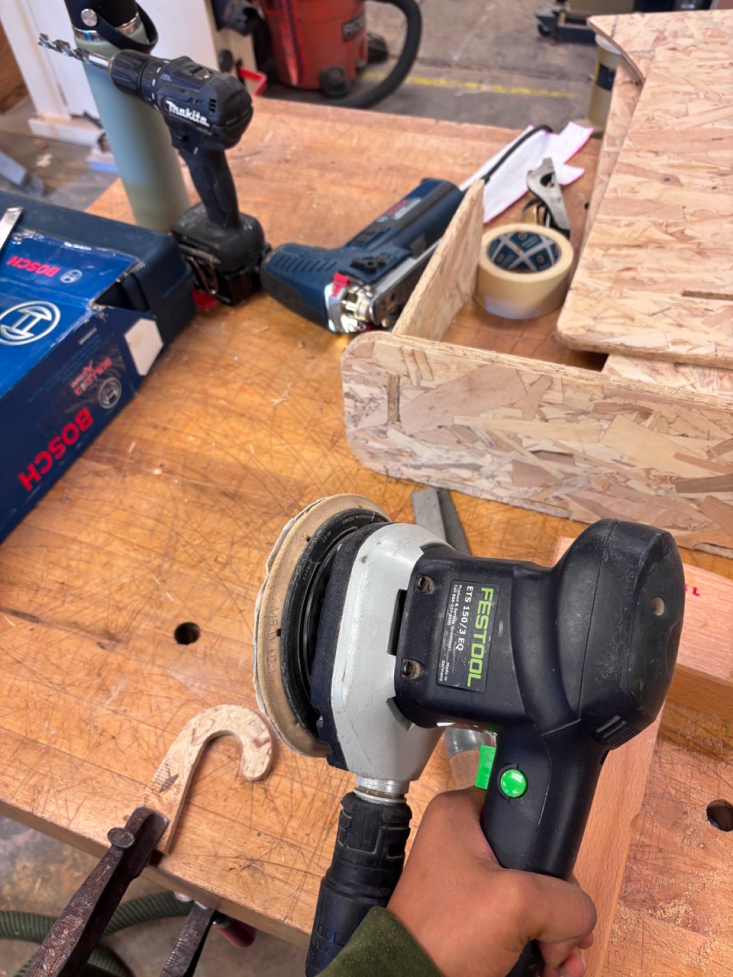

I sanded each surface with an orbital(?) sander with a 150 grit sheet of
sandpaper to smooth the surface for touch as well as for painting, and
filled edges for a softer touch.

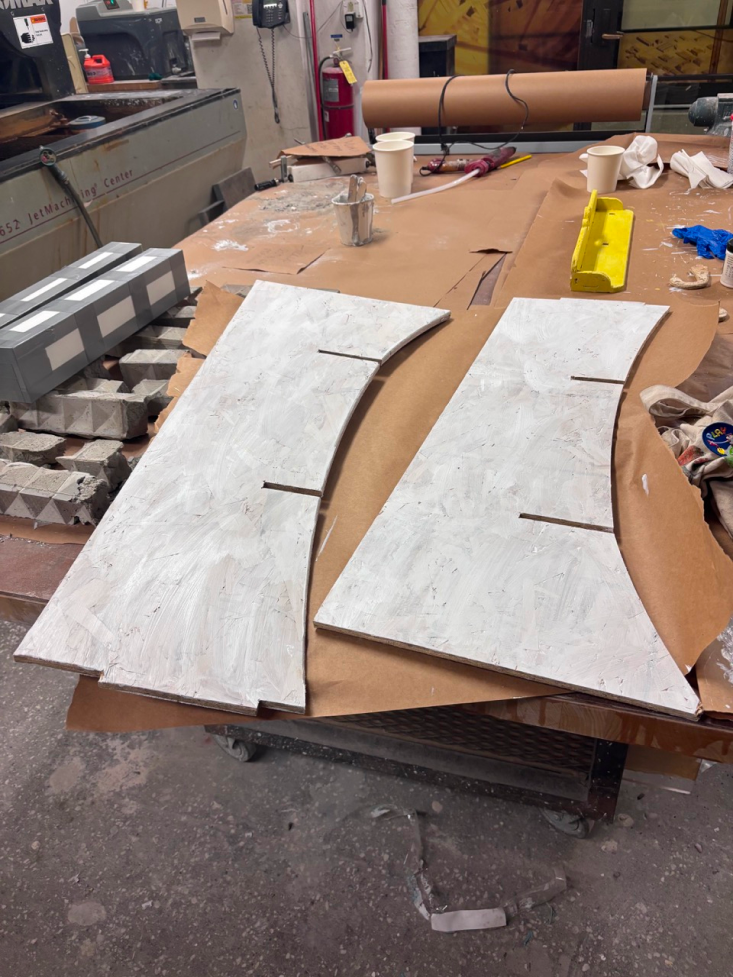

I then added a layer of white acrylic paint to all pieces. I wet the pieces
a tiny bit to allow the paint to spread farther and faster.

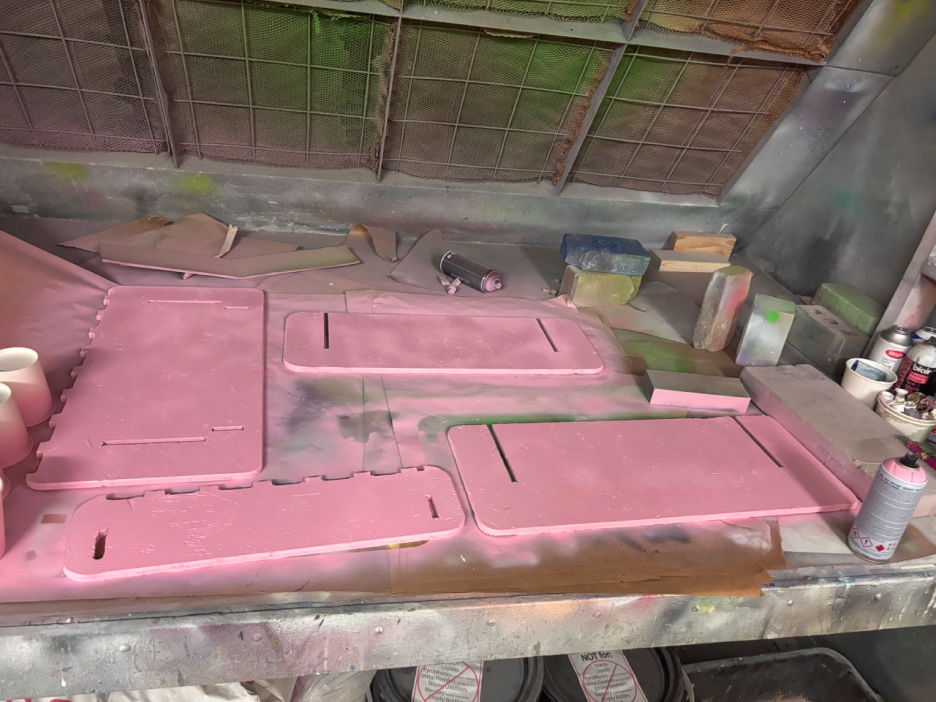

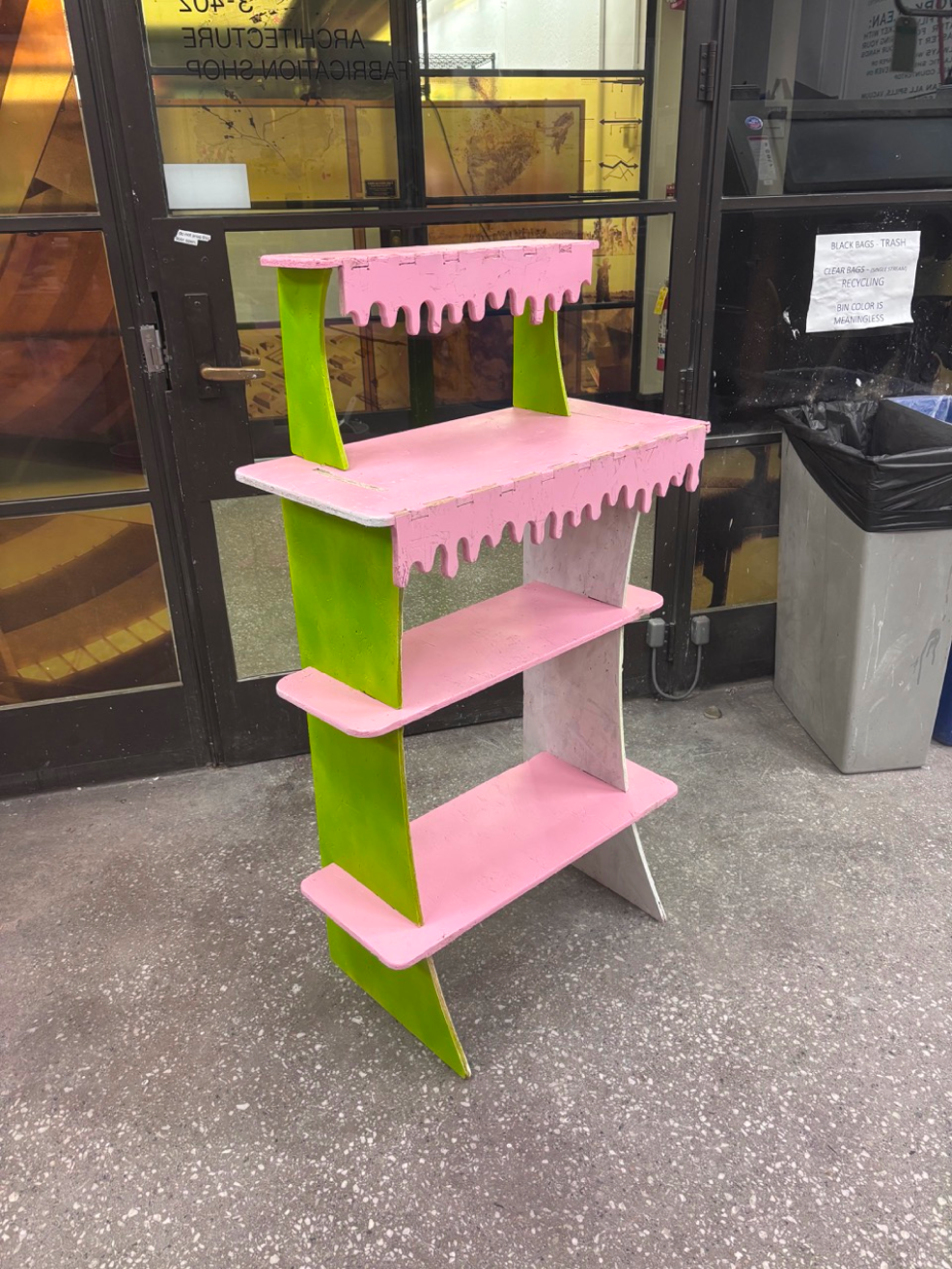

Then I sprayed my pieces!! I used a baby pink that I found at Blicks for the

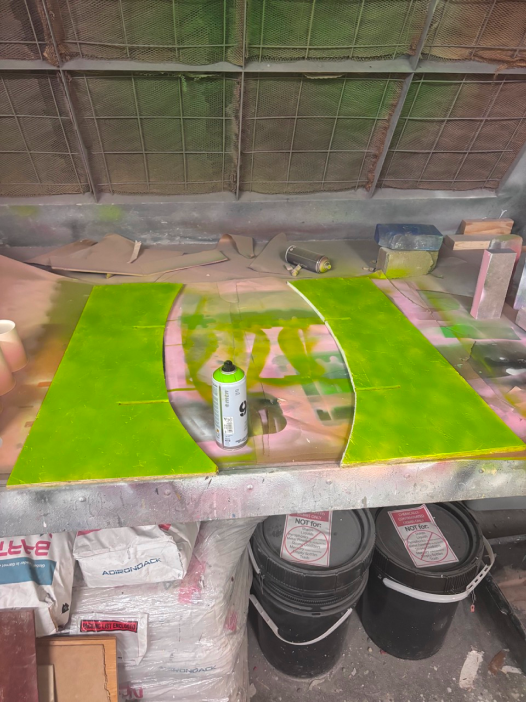

top of the tables and drips, and a leftover green spray (it was not enough
for all of the side pieces).
- Working with OSB board was a bit hard... It flakes very easily and it’s not very dense so even after sanding there were a lot of gaps and texture in the surface. also some wood chips reacted differently to the addition of paint and spray paint, absorbing the layers and making the surface swell a little at different points.
- Patience. I was really hoping to get my object cut before Tuesday but because CNCing takes a while, the schedule was super delayed and there was really nothing else I could do but just wait in the woodshop until the machine was free.
