For this week’s assignment, I used a board that I laser engraved and populated (designed by Tlyer Jensen Hill!) as part of machine week. The board includes a XIAO-ESP32S3, a PCA9685 (16-Channel 12-bit PWM/Servo Driver - I2C interface) and a couple connectors for output servos. My aim was to control the on-board ESP32 via Bluetooth. But first, I wanted to make sure it behaved as expected, before trying to implement any kind of networking.

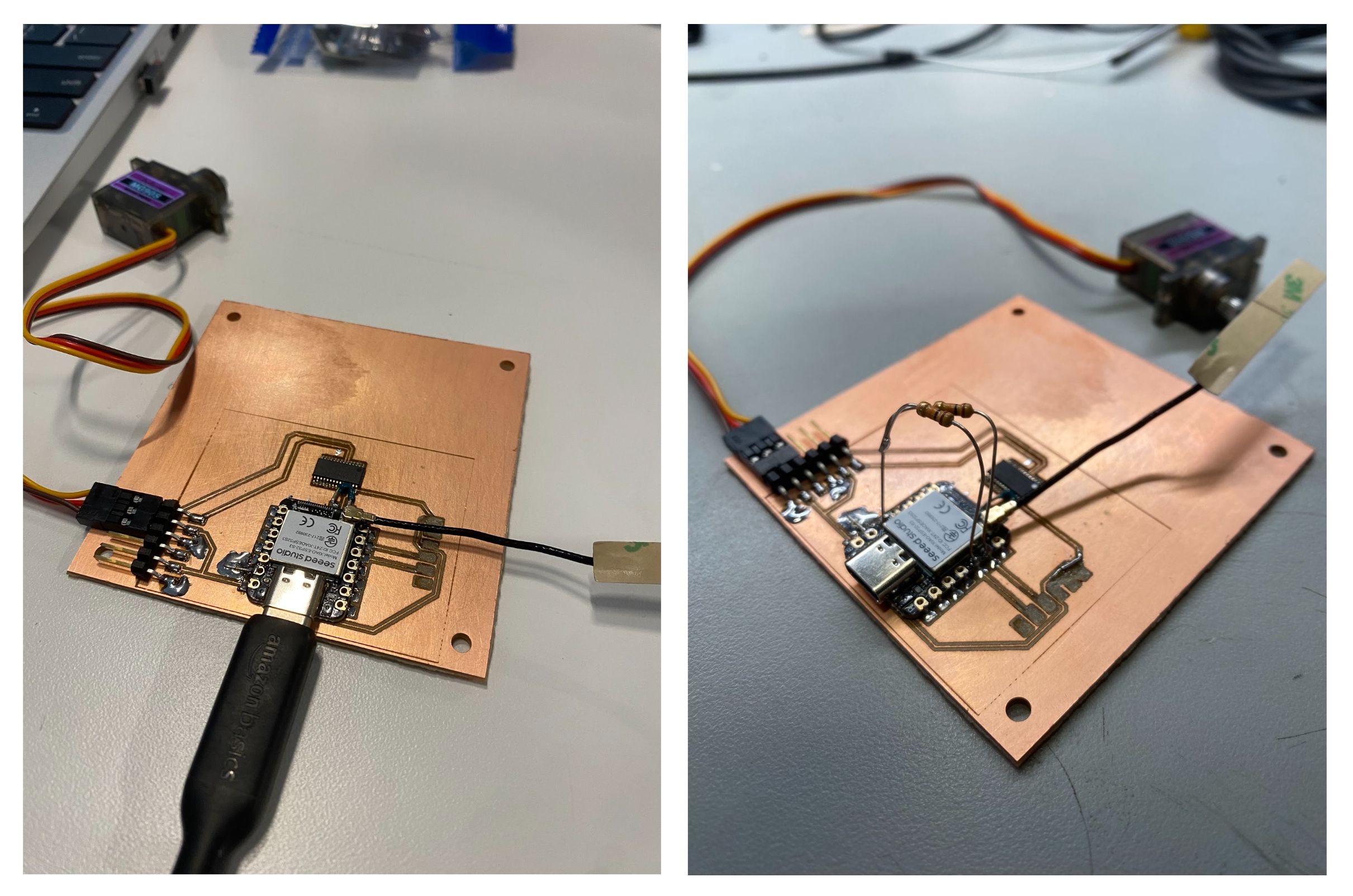

To my chagrin, it did not...Upon further inspection I realized that I'd put this board on my shelf after accidentally ripping off the IMU which was originally a part of this circuit as well. Those traces were also the PCA9685's links to 3v3 and the I2C bus. After applying some quick fixes I was able to get it back up and running again (see below).
Next, it was time to code. Having been very limited with my use of chatgpt in this course, I decided to give it a try for this assignment. I don't know if it slept on the wrong side of the bed that night or I'm just a poor prompt engineer. Either way, I wasn't all that satisfied!

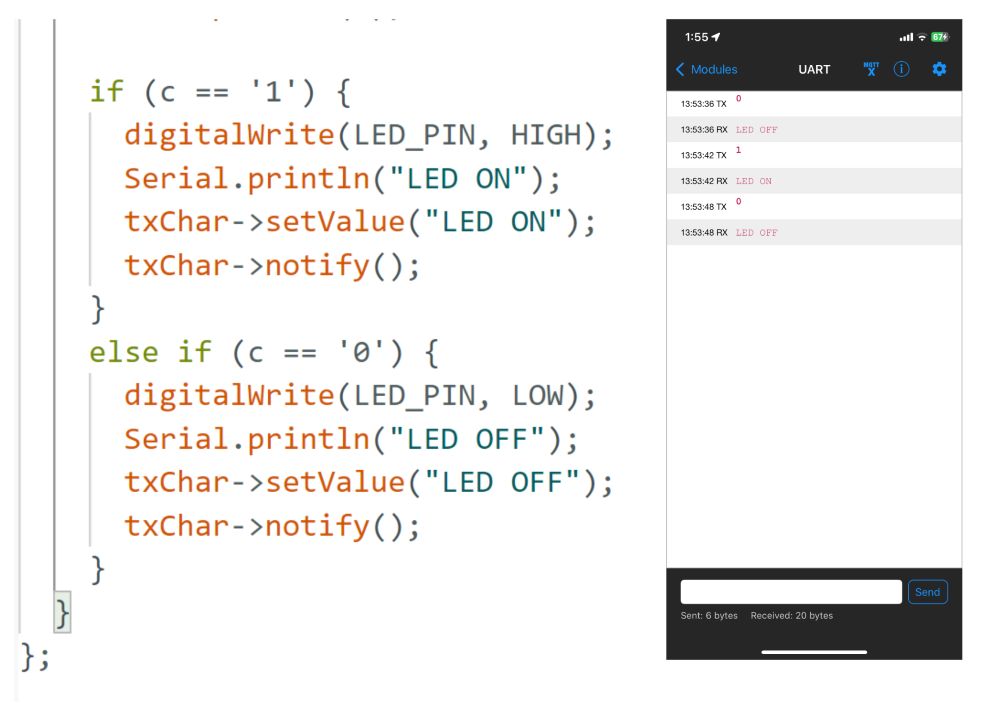

Prompt 1: "please write me a simple arduino script for an ESP32S3 which enables me to send either a 1 or a 0 to the device via Bluefruit LE connect on my phone in order to turn on or off the on board led."
Prompt 2: "please auto-send notifications back to the phone and print out incoming traffic to the serial terminal of the arduino ide"
Prompt 3: "are you expecting an EOL character to be sent from the mobile device?"
Now that it was building from a more standardized base code, it seemed to have an easier time generating something funcitonal.
I then prompted it to make this work for a servo. The resulting code did not work. In order to figure out why, I compared the script it genrated with the adafruit example for controlling a servo with this chip (File>Examples>Adafruit PWM Servo Driver Library>servo), and saw that the pwm clock frequency wasn’t being set. Also the delay that should be inserted after sending the command to the servo was missing.

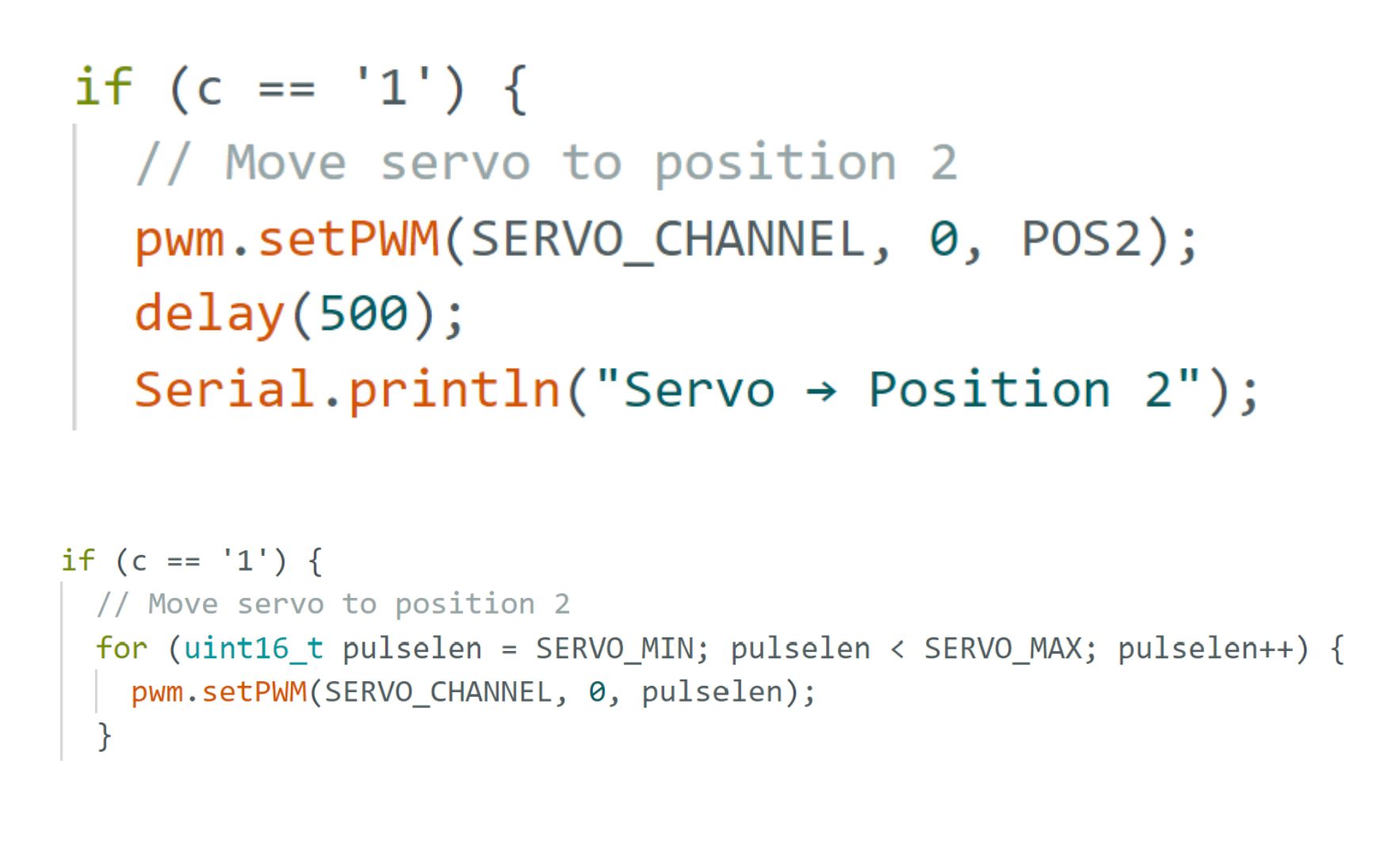

The final change I needed to make: the code chat gpt made sends out a single pwm signal, but the servo did not like this. I implemented the example format (e.g. sweeping through a range of servo values to ramp to the appropriate position) and this worked!
Schematics and fabrication files for this board can be downloaded here PCA9685_helloWorld_v0.zip.
Code can be found here SERVO_CTRL.ino.
The "Bluefruit LE connect" app can be downloaded from the app store.
