Final Project: Tangible Adventure

I want to combine my background in AI application development with my research group's focus in Tangible Interface to build a voice-driven AI programming system inspired by telephone switchboard operators. After 2 months of hacking, the idea morphed into an AI powered RPG game console. This post documents the twists and turns of my own adventure.

Jump to demo

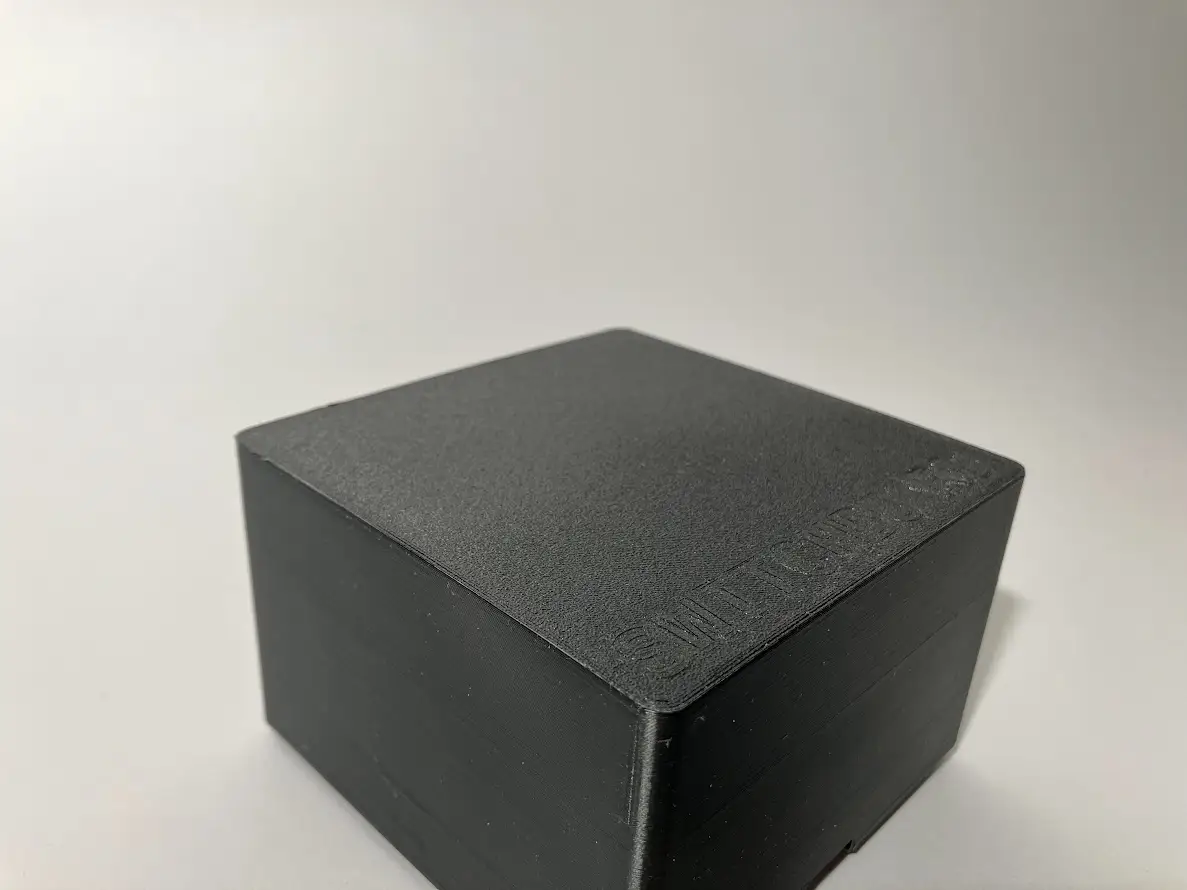

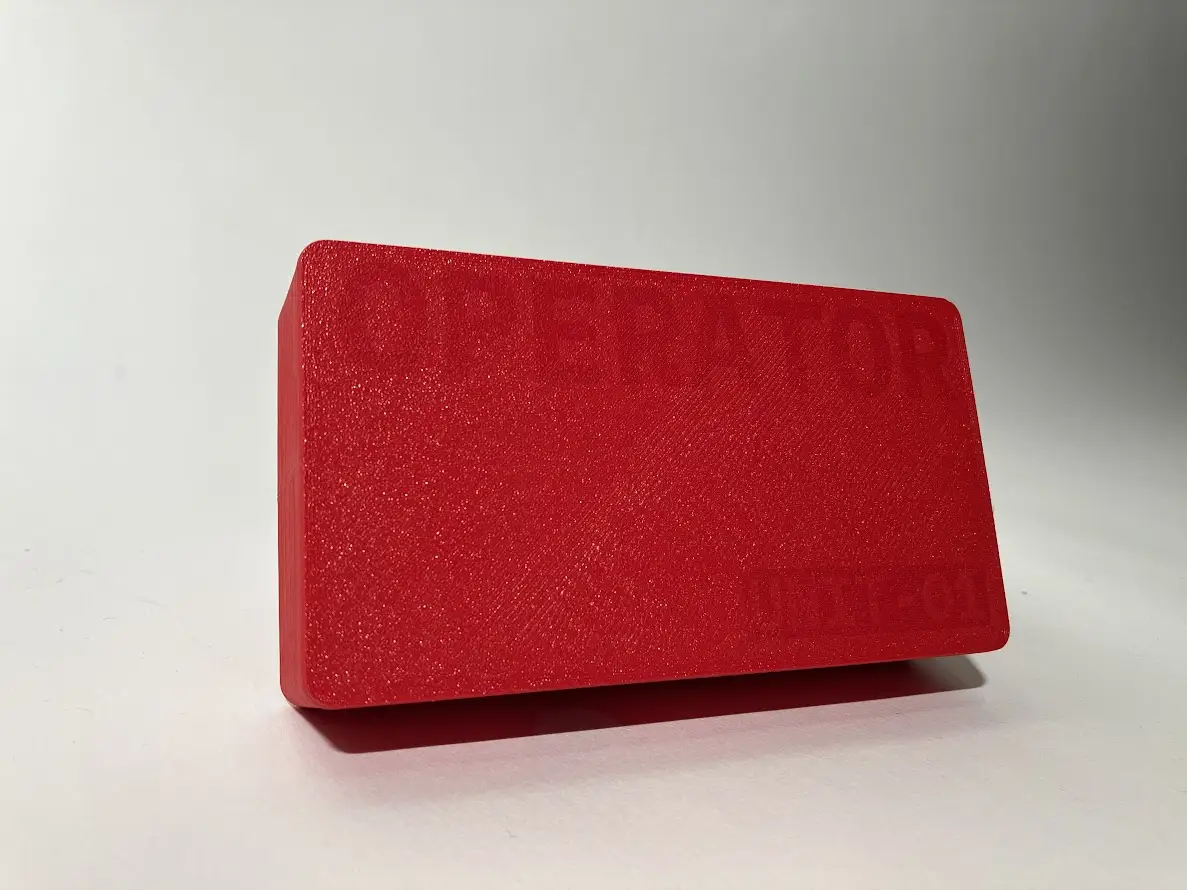

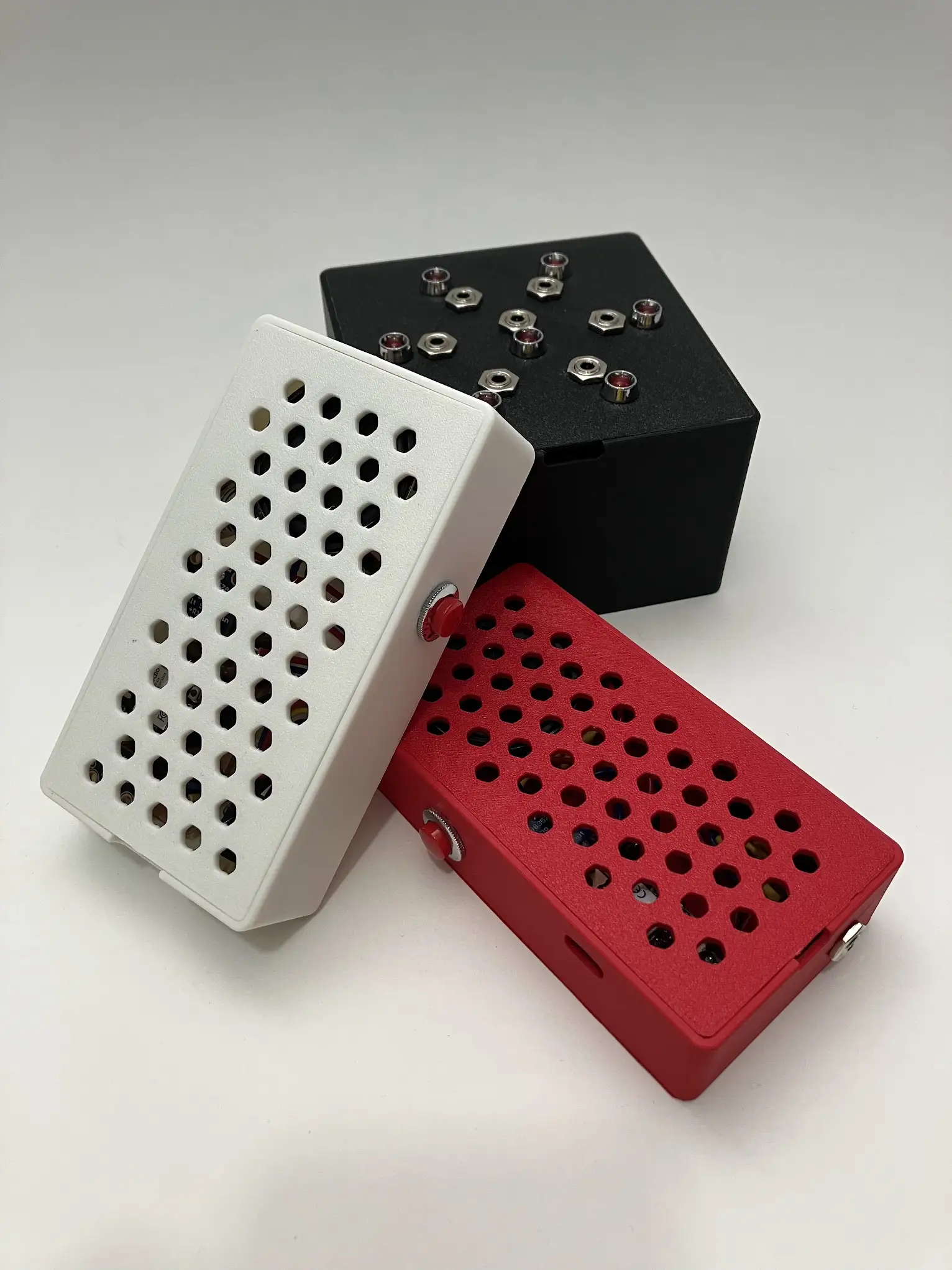

Device set Switchboard (black), Operator Unit-01 (red), and Operator Unit-02 (white)

The inspiration

I’m motivated by how AI-routed phone systems have eroded the empathy and connection once provided by human operators. I want to revive that craft by building a switchboard that puts a person back in the loop as a thoughtful listener and connector.

Switchboard operator Jersey Telecom Switchboard and Operator (source)

The idea

A physical AI agent network implemented as a hardware grid with voice-based interaction and programming capabilities. The system combines push-to-talk interfaces with node-based generative AI computation, allowing users to dynamically program and interact with AI agents through voice commands. I want to call this system Field Programmable Generative AI (FPGAI)

Concept sketch My initial sketch

Next, I want to visualize the idea with gen AI. I'm entirely new to 3D modeling and rendering, so the fastest route to gain intuition on the form of the design is naturally using AI.

I crafted the prompt based on what I was imagining. The latest Gemini model got this for me in one shot.

Base Device base (prompt)

Next, let's visualize the hand-held device. I want to model it after a CB radio speaker mic. Inspired by this project

Hand unit Hand unit (prompt)

Finally, let's put them together and add some context. I haven't decided the exact size for each component yet. I think that will have to wait until I figured out the electronics first.

In use In use (prompt)

The implementation

While it's still too early to fully specify the project, I have the following high level design.

Main Board

Speaker-Microphone Units

Operating Modes

Interaction Mode

Programming Mode

After the conceptual exploration from week 1, I switched focus to the electronics. I hope the electronics design can help inform the exterior of the system.

I started off with off-the-shelf components and iterated the idea to build more from scratch.

Proof of concept with off-the-shelf components

I can prototype almost the entire experience with cheap off-the-shelf products:

  1. Push-to-talk with a secondhand CB radio hand unit
  2. Audio cable adapters to 3.5mm TRRS
  3. USB hub for multiple inputs

Prototype 1 Prototype using consumer electronics

What was missing:

  1. No effort involved. This would result in a failing grade. It was only good for prototyping
  2. Couldn't guarantee the compatibility of the hand unit with the 3.5mm TRRS jack
  3. Couldn't prototype the visual feedback feature, where the 3.5mm jack shows "ready" state to the user via an LED

Bring intelligence to the main body

Iterating on the idea, I could use a Raspberry Pi with a primitive USB hub as the main processor. The Pi may still use a nearby laptop for LLM and speech-to-text, text-to-speech, but it's also possible to bring the entire AI/ML stack onto the device, reducing the need for networking.

Prototype 2 Moving compute to Raspberry Pi

I still needed to figure out how the Pi could use the LEDs to display system state. Besides, I needed to program some microcontroller to meet the requirements of this class. Could we go one level deeper?

Move audio processing to hand unit

To make the project more challenging, I can use an ESP32-based audio system to pick up speech and play back AI voice. We can wirelessly connect the ESP32 with a nearby laptop, where the voice-driven AI interactions will take place.

The main body still needs a controller to send the following information to the nearby laptop:

  1. Detect which socket is plugged in
  2. Control the LED status lights

Prototype 3 Audio processing in hand unit

The audio cable in this design did not really pass audio. It was solely used for detecting the state of plugged/unplugged. I needed to figure out how to rig the 3.5mm jack to achieve this.

Build my own speaker/microphone

The next level is replacing the ESP32-based audio kit with a custom PCB, with speaker and microphone manually soldered. This will probably be the upper bound of the level of complexity I can handle.

Prototype 4 Build microphone and speaker on custom PCB

My next step is taking the idea to a TA for advice. This is my first time designing with electronics, so I do anticipate big revisions. Stay tuned.

Networking

Learning about embedded programming validated the design above. After getting hands-on experience building an echo server with ESP32, I now feel confident that I can relay data between the ESP32 hand unit and a nearby laptop using either a Wi-Fi or a serial connection. Next, I can explore several things in parallel:

Electronics design update

I consulted with our TA Quentin Bolsee regarding electronics design and received valuable help on input/output devices. I also conducted additional research using YouTube tutorials from atomic14, which enabled me to fully spec out the electronics for both components.

The hand unit will be built around a Xiao ESP32-C3 microcontroller, with upgrade options to ESP32-C6 if WiFi performance becomes a bottleneck, or to WROOM-32E if more GPIO pins are needed. For audio processing, I've selected the ICS-43434 I2S MEMS Microphone for input and the MAX98357A I2S Class D Amplifier paired with an 8-ohm speaker for output. However, the amplifier's specified response frequency of 600hz - 4000hz may not be ideal for voice applications, so I might need to find an alternative. The physical interface will include two buttons (single button for push-to-talk, both buttons for broadcast) and two switches (Power On/Off and Mode switch for interaction/programming). Power will come from a 3.7V LiPo battery, with a potential upgrade to a 3AA battery pack plus voltage regulator for easier replacement and a more vintage feel, though I need to consult with an electronics expert about the implementation details. Connectivity will be handled through a 3.5mm TRRS jack.

The main unit uses a simpler design with a Xiao ESP32-C3 microcontroller controlling 4 LEDs and 4 3.5mm TRRS jacks for the 2x2 grid configuration.

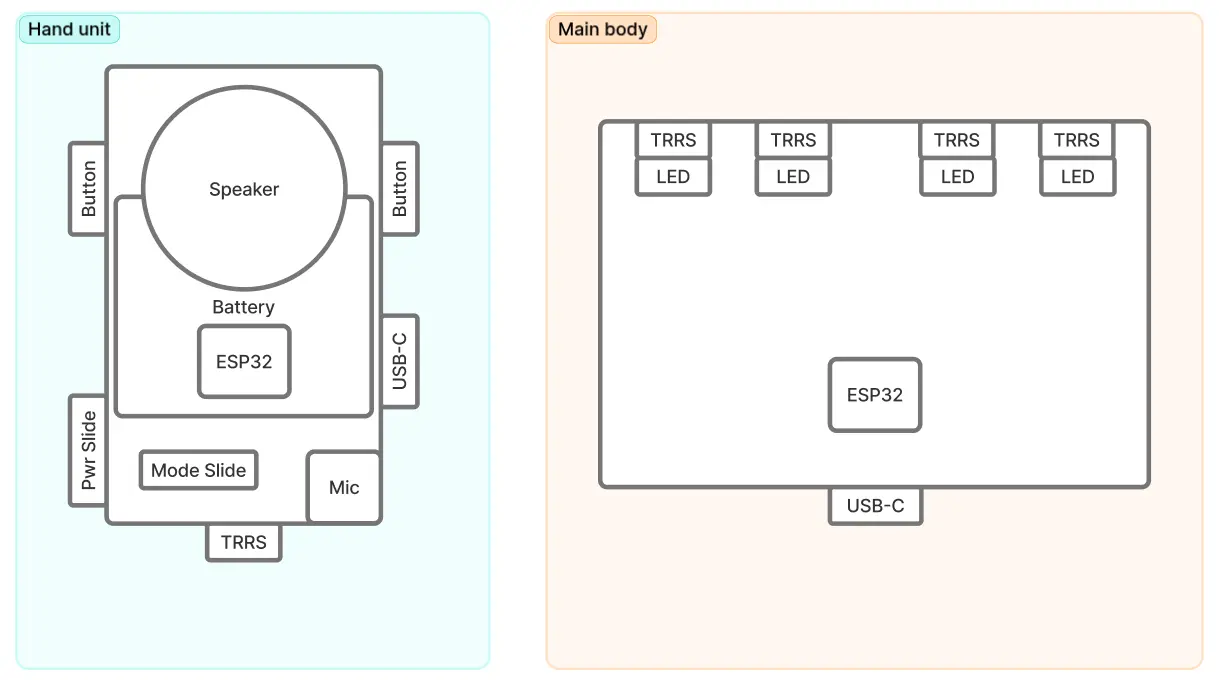

High-level schematic High-level design for the electronic components

For connection detection, I want to eventually support multiple hand units speaking simultaneously, which requires tracking which hand unit is plugged into which jack. Traditional physical TRS plug detection doesn't differentiate between different plugs, so I propose using TRRS jacks as a clever hack. By treating high/low voltage as 1/0 bits and using the sleeve as ground while the other 3 connections serve as signal lines, I can create 2^3 = 8 unique values. This allows each jack in the 2x2 grid to be uniquely identified by a 3-bit code. The main unit will be responsible for pulling up/down the 3 signal lines on the jacks, while the hand unit decodes the 3-bit code and sends it to the laptop along with its own unique ID.

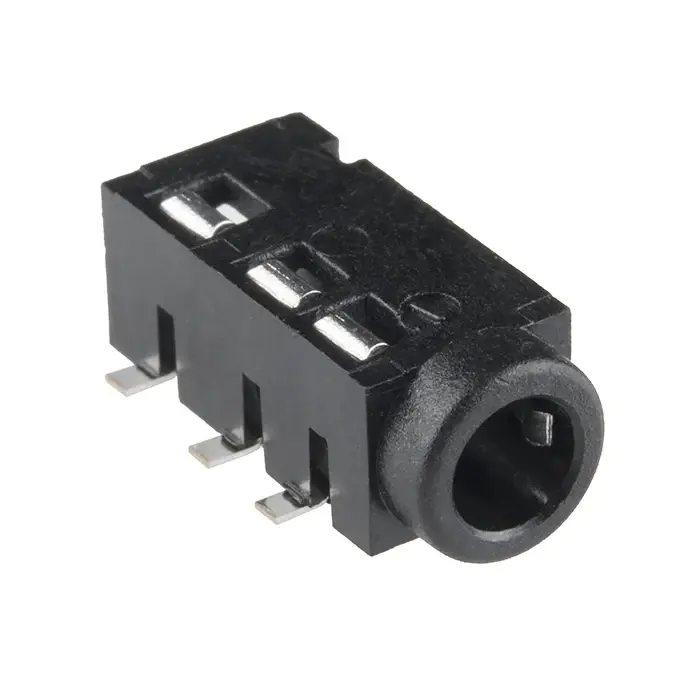

TRRS socket TRRS socket has 4 pins

This design enables all necessary communication between the PC, hand unit, and main unit: hand unit plug-in messages with 3-bit codes and wireless IDs, audio streaming from hand units to PC using wireless IDs, audio streaming from PC to hand units using wireless IDs, and LED state updates from PC to main unit using 3-bit codes to identify specific jacks.

Parts list

Component Quantity Availability Notes
Xiao ESP32-C3 2 Out of stock 1* for hand units, 1 for main unit
ICS-43434 I2S MEMS Microphone 1* Stocked
MAX98357A I2S Class D Amplifier 1* Stocked
PSR-57N08A01-AQ 8-ohm speaker 1* Stocked
3.5mm TRRS jack 5 Need to order 1* hand unit + 4 main
TRRS audio cable 1* Need to order
3.7V LiPo battery 1* Need to order
Button 2* Stocked
Slide switch 2* Stocked
LED 4 Stocked
3AA battery pack + voltage regulator 1 Optional Alternative power solution

*For a single hand unit. Need more for additional units

With this design update, it became clear that the main unit is essentially a "dumb" device that encodes the TRRS socket and displays which AI agent is speaker and doesn't care about audio processing at all.

I had also gained insights into how the physical constraints for the housing. The hand unit needs to mainly account for battery and speaker size. The PCB size and shape could be more flexible. The main unit needs to account for the 4 TRRS jacks.

Here were new and remaining questions which I planned to resolve by going to TAs as well as attending future lectures.

  1. PCB design. atomic14's design is a good reference but I don't know how I can design my own.
  2. Packaging design. How do I hold the components in place? especially the 3.5mm TRRS jacks which will receive physical stress.
  3. Physical interaction. How do I put buttons and sliding switch on the hand unit? I want a good tactile feel.
  4. LED lighting. How do make a ring that lights up around the TRRS socket?
  5. The CBA electronics shop inventory doesn't match what the website says. For example, the ESP32s are out of stock but the website didn't reflect that.

And here were the things I could prototype next:

  1. Play voice from ESP32 over WiFi
  2. Capture sound from ESP32 over WiFi
  3. Address and light-up 4 LEDs with ESP32
  4. Encode and decode TRRS identities between two ESP32 boards
  5. Design a case roughly based on atomic14's PCB foot-print.

Sound output

With the help from our TA Quentin Bolsee, I installed the official ESP32 board manager following its documentation. Then I installed the specific library for Arduino ESP32 Nano from the board manager.

I used the official example code to play a square wave tone, with a few lines of modification to set the right output pin. Here is the full source.

#define I2S_BCLK D7
#define I2S_LRC  D8
#define I2S_DIN  D9

Sound output from ESP32 using MAX98357A amplifier

I found a powerful library for audio processing by Phil Schatzmann, called Arduino Audio Toolkit. After studying his examples, I was able to get my computer to send live microphone audio to the ESP32 over WiFi, and play it back immediately. The latency was about 1 second, which concerned me but wasn't a deal breaker.

This POC validated the idea that we could shift all the computation to a PC nearby and let the ESP32 handle audio input/output.

Latency test result: 1 second delay

PCB Design

I designed both the hand-held device (Operator) and the main body (Switchboard) as part of this week's PCB design exercise. See details in the weekly post.

PCB Production

I milled boards for both the Operator and the Switchboard using the Carvera Desktop CNC machine. See details in the weekly post.

Case Prototype

I designed a simple box for the Switchboard in Onshape, featuring an elevated platform for the M2 mounting screws, a hole for the USB-C connector, and a simple enclosure for TRRS jacks that would allow for easy assembly.

Switchboard case design Switchboard case design (model)

However, the printing process turned into a series of challenges. I experienced repeated failures while printing PETG across multiple machines, despite following the precise specifications. I could only suspect the filament quality was poor.

Printing failure 1 Base layer delamination during printing

Printing failure 2 Spaghetti from the side

During one of the jobs, the filament ran out, and bridging in a second roll made the interface terrible. In another attempt, one filament got entangled with itself inside the spool, causing the machine to stop.

Printing failure 3 Entangled filament caused spaghetti

In the last version, I switched to PLA and successfully printed the case.

Successful print Successful print with PLA

Upon a quick assembly test, I took these notes for the next iteration:

  1. The USB-C connector was positioned at the wrong height.
  2. It might be simpler to slide the PCB into position rather than using screws for mounting.
  3. I discovered that for anything using screws, M3 is a much easier size to work with.

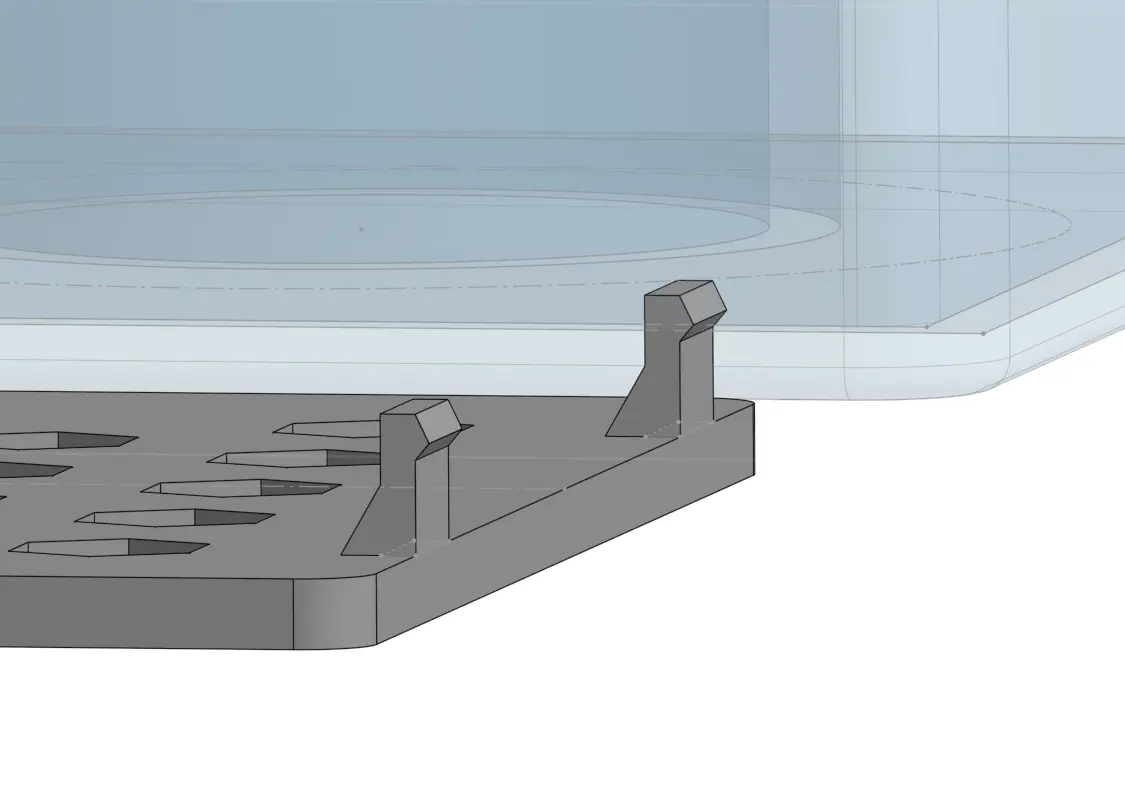

  4. The lid is desirably tight, but I need to create a small lip of a gap on the case to make it easier to open.

Assembled case Assembled case

With lid With lid

Microphone

I took advantage of the input device week to prototype the microphone interaction. I was able to implement the entire input pipeline:

  1. User holds button to talk, microphone picks up voice, user releases button to stop recording.
  2. Audio sent over WiFi to nearby laptop via UDP.
  3. Laptop streams audio to OpenAI Realtime API for text response.
  4. Laptop uses text-to-speech to generate audio response and plays it immediately.

The TRRS Connector

I found a dozen TRRS male and female connectors in my lab. They look nicer than the SMD version I originally planned to use. But without the datasheet, I need to reverse engineer the schematic. So I probed them with a multimeter and confirmed the internal connections.

TRRS pinout TRRS pinout diagram

The female connectors will be mounted just under the lid of the Switchboard case. I still need to figure out how to fabricate and attach the cables.

Next steps:

Speaker

During the Output Device week, I completed the full voice interaction loop, with voice-in, voice-out, and AI processing in between.

Full voice interaction loop demo

Handle Unit Form Study

I used a piece of paper to sketch out the form factor, just so I can hold it in my hand and feel the size.

Low-fidelity hand unit Extremely-low-fidelity hand unit prototype

Using this prototyp, I laid out the components and realized I might have to increase the dimension to make everything fit.

Component layout Layout option 1

Component layout Layout option 2

Battery

The ESP32 board has a well documented charging circuit for 3.7V LiPo batteries. Knowing that working with battery is a bit risky, I decided to start with a simpler USB-C power bank. This is the smallest option I found on Amazon:

USB-C power bank USB-C power bank for hand unit

Mounting mechanism

There are several mounting challenges. I investigated the mounting strategy for PCB and TRRS jack this week.

I produced different sizes of mounting bracket (download STEP file) to find the right size.

Bracket model Modeling the brackets with offsets from the measured board size

PCB mounting bracket test PCB mounting brackets

PCB mounting test PCB mounting test

I observed that for the 28mm board, a +1mm offset (28.1mm bracket) would make a good fit. I needed at least 2mm height to clear the solder joints.

I also 3D printed a model to test the TRRS jack mounting.

TRRS test model TRRS jack test model

TRRS mounting test TRRS jack mounting test

Testing revealed that 7mm diameter was the best fit, and max thickness could be 2.5mm. This meant I could use 2mm thick walls for the case.

Mid-term review

Remaining tasks

  1. Fabricate Operator
    • Design button mounting mechanism (2 buttons)
    • Design speaker mounting mechanism
    • Model updated case and enclosure
    • Solder TRRS connector
    • 3D print and assemble
    • 3D print button caps
  2. Fabricate Switchboard
    • Order vintage LEDs
    • Design LED mounting mechanism
    • Solder TRRS connectors
    • Model updated case and lid
    • 3D print and assemble
  3. Software
    • Implement multi-agent simulation
    • Implement automatic server IP discovery

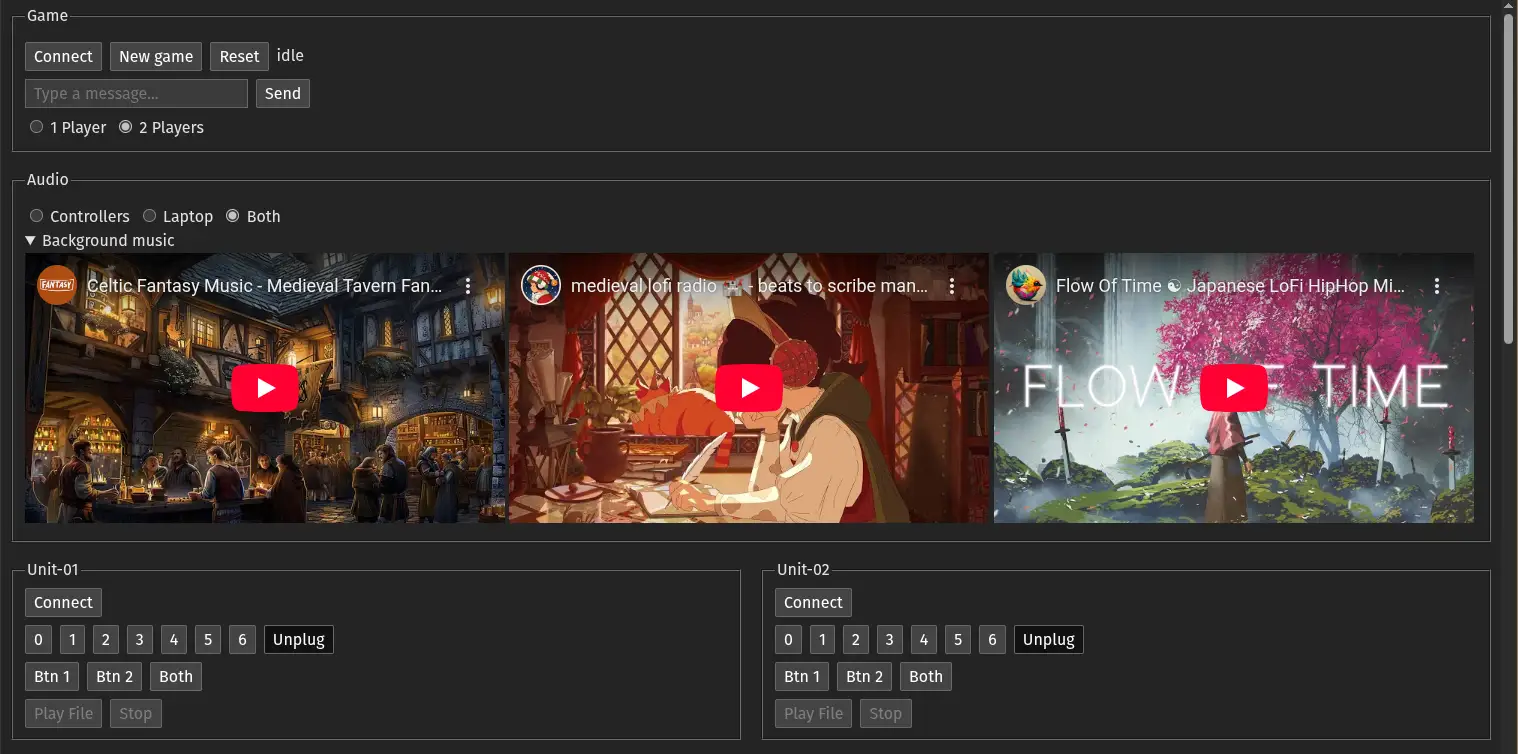

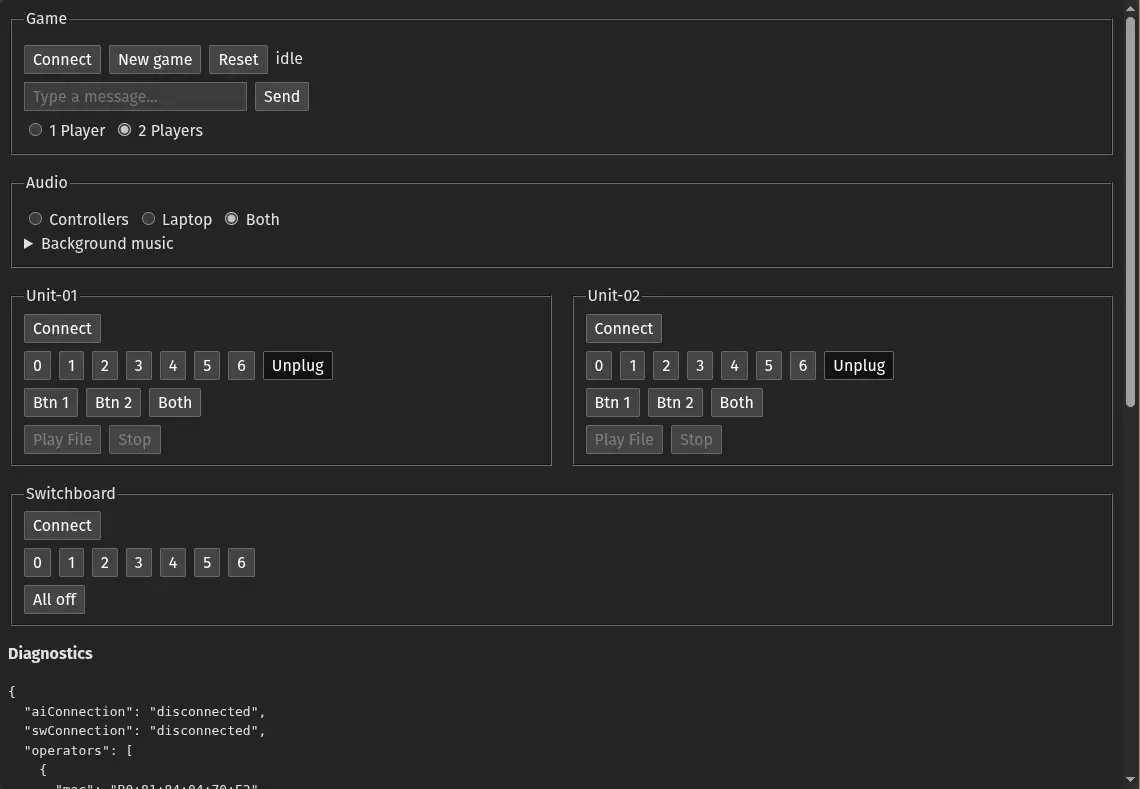

    • Implement diagnostic UI

Stretch goals:

Delivery plan:

Questions for TA:

  1. Button, speaker, LED mounting mechanism?
  2. Battery + Power: what kind of switch should I use? How to mount?
  3. Slider switch: what options do I have? How complex?

Physical Assembly Test

During the mid-term review, Alan Han suggested mounting options and power solutions.

Because Thanksgiving travel was approaching, I wanted to use lab time to test the mounting as soon as possible.

I updated the 3D models to account for the speaker, audio jacks, and buttons. My CAD speed was improving. In half a day, the updated models for both the Operator and the Switchboard were ready for printing.

Updated Switchboard Updated Switchboard model

Updated Operator Updated Operator model

These were test prints intended only to reveal design issues, so I used a 0.15 mm layer height and 15% infill for a quick turnaround. Production prints would be much finer.

3D printed parts Slicing for speed

For assembly I skipped soldering so components could be moved and adjusted — a deliberately "wireless" assembly.

Wireless assembly Assembly without soldering

The physical prototype immediately revealed several problems:

Button collision issue Buttons colliding with speaker

TRRS collision issue TRRS barrel colliding with PCB header

I quickly revised the design so the components sat in the correct positions. That update produced the first successful physical assembly of the system.

Case Updated case to address the issues found in the assembly test

In context Mounting all the components (except for wiring)

Unboxed view Unboxed view of the system

Validating LED

I validated the LED connection and voltage design with a simple program that blinks all the LEDs. To make it interesting, I added the PWM-like brightness fading effect by rapidly toggling the LEDs on and off with varying on-time to simulate different brightness levels.

/*
ESP32 LED Pulse using PWM simulation by rapidly
toggling LEDs on and off with varying on-time to control brightness.

Pinout:
LED1: D0
LED2: D1
LED3: D2
LED4: D3
LED5: D7
LED6: D8
LED7: D9
LED8: D10
*/


const int ledPins[] = {D0, D1, D2, D3, D7, D8, D9, D10};
const int numLeds = 8;

const int PERIOD_US = 5000;

void setup() {
  for (int i = 0; i < numLeds; i++) {
    pinMode(ledPins[i], OUTPUT);
    digitalWrite(ledPins[i], LOW);
  }
}

void loop() {
  for(int brightness = 0; brightness <= 255; brightness++) {
    int on_us = map(brightness, 0, 255, 0, 500);
    int off_us = PERIOD_US - on_us;
    for(int i = 0; i < numLeds; i++) {
      digitalWrite(ledPins[i], HIGH);
    }
    delayMicroseconds(on_us);
    for(int i = 0; i < numLeds; i++) {
      digitalWrite(ledPins[i], LOW);
    }
    delayMicroseconds(off_us);
    delay(1);
  }

  for(int brightness = 255; brightness >= 0; brightness--) {
    int on_us = map(brightness, 0, 255, 0, 500);
    int off_us = PERIOD_US - on_us;
    for(int i = 0; i < numLeds; i++) {
      digitalWrite(ledPins[i], HIGH);
    }
    delayMicroseconds(on_us);
    for(int i = 0; i < numLeds; i++) {
      digitalWrite(ledPins[i], LOW);
    }
    delayMicroseconds(off_us);
    delay(1);
  }
}

LED test LED test successful

In my circuit, I used a 100-ohm resistor in series with each LED rated at 1.9V forward voltage and 20mA forward current. Assuming a 3.3V supply from the ESP32, the current through the LED would be approximately (3.3V - 1.9V) / 100 ohms = 14mA, which is bit low.

Double-checking the math using DigiKey's LED Resistor Calculator, the desired resistor should be 70 ohms. So choosing 100 ohms was safe.

Knowing that the TRRS addressing works from Week 6 and the LED output works from this test, we are ready to connect all the components in Switchboard!

Soldering LED Soldering LED, one by one

During the testing, several LED legs were snapping. I had to apply hot glue as reinforcement.

Reinforcing LED legs Reinforcing LED legs with hot glue

With several hours of non-stop soldering, all the LEDs were finally blinking! I used heat shrink tubing to bundle the male jumper wire pins into groups of fours (TRRS) and twos (LEDs), color coded and labeled with a sharpie for easy identification.

Testing all lights in sequence

Transferring the components into the final housing was tedious. Marking the position of each connector with a sharpie helped prevent mistakes.

Switchboard assembly time-lapse

Wiring up the Operator

After wiring up the Switchboard with 2 days of non-stop soldering, I gained significant experience and had all the equipment dialed in. I also switched to single-core 22 AWG wire for stronger joints. The wire-up was a breeze.

Operator UNIT-02 assembly time-lapse

Wiring up the Operator Operator UNIT-01, fully wired up

Wiring up a second hand unit was just rinse and repeat. The interactive slider below shows interior vs exterior views.

Remaining tasks:

Application and Interface

During Week 13, I built a modular Node.js application to orchestrate all devices and AI services.

The demo uses Gemini for story generation, OpenAI TTS for speech synthesis, LEDs to signal available options, and the probe/buttons for physical interaction.

Text adventure game in action

Thanks to the hardware issue, I got inspired by the game experience and saw a creative use case for my device.

I want to add voice input to allow player interact with NPCs, environment, and express action. Potentially upgrade with multi-player mode. In this new concept, each audio jack represents an interactive element in a story.

But first, I need to debug the hardware issue and recover voice input/output as soon as possible.

Almost made a nameplate

During the wildcard week, I made a nameplate for the Switchboard. Sadly the plate was 3mm thick. Mounting it onto the 2mm 3D printed shell would require too much design change.

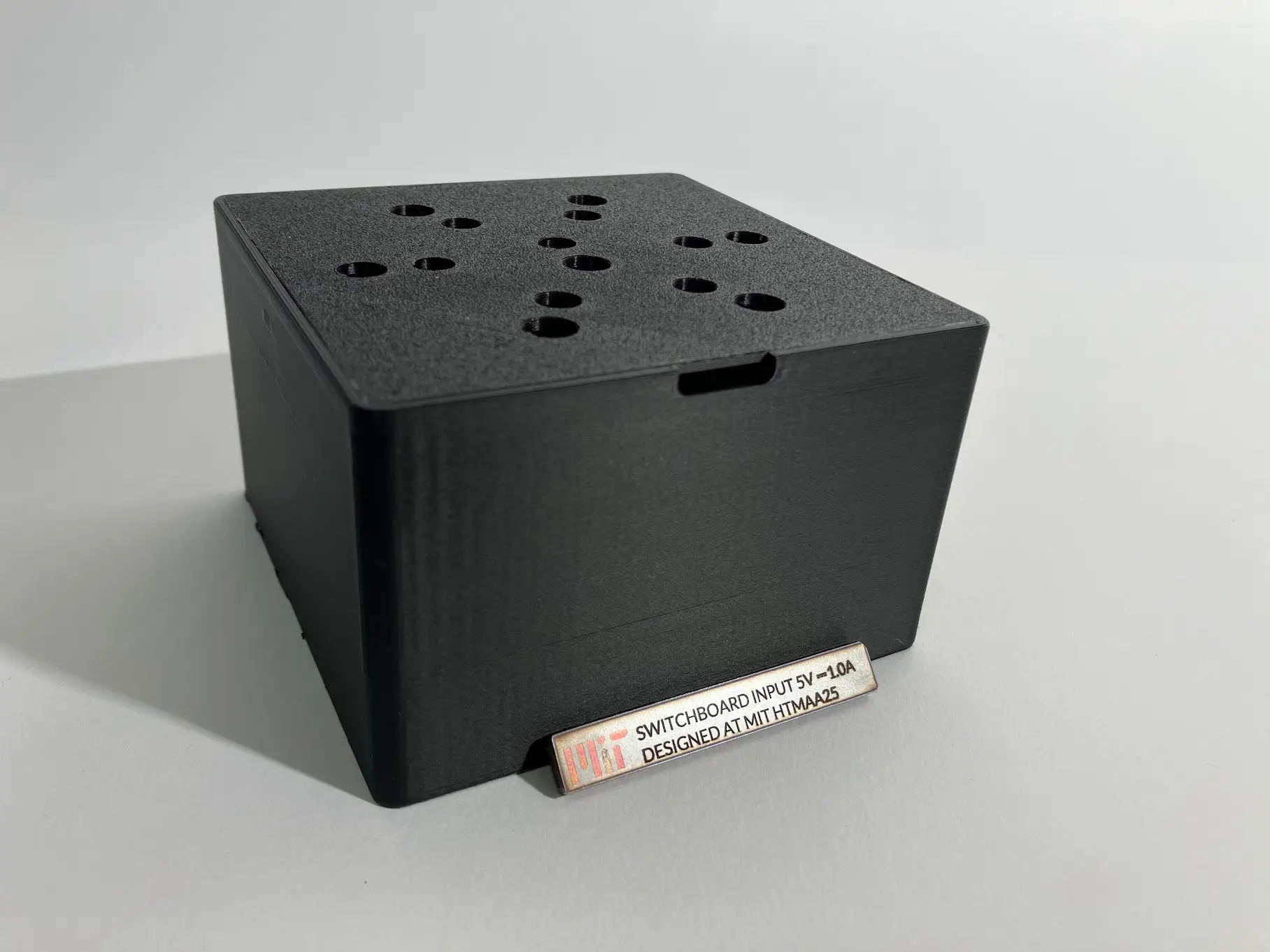

Nameplate Nameplate, too thick to mount

Quality Assurance

The hardware issues from the previous week forced me to take a systematic debugging approach. I needed to diagnose why the microphone and speaker stopped working on my latest PCB.

I hooked up the logic analyzer and compared my current PCB with a previous design that was known to work. This side-by-side comparison would reveal any signal differences.

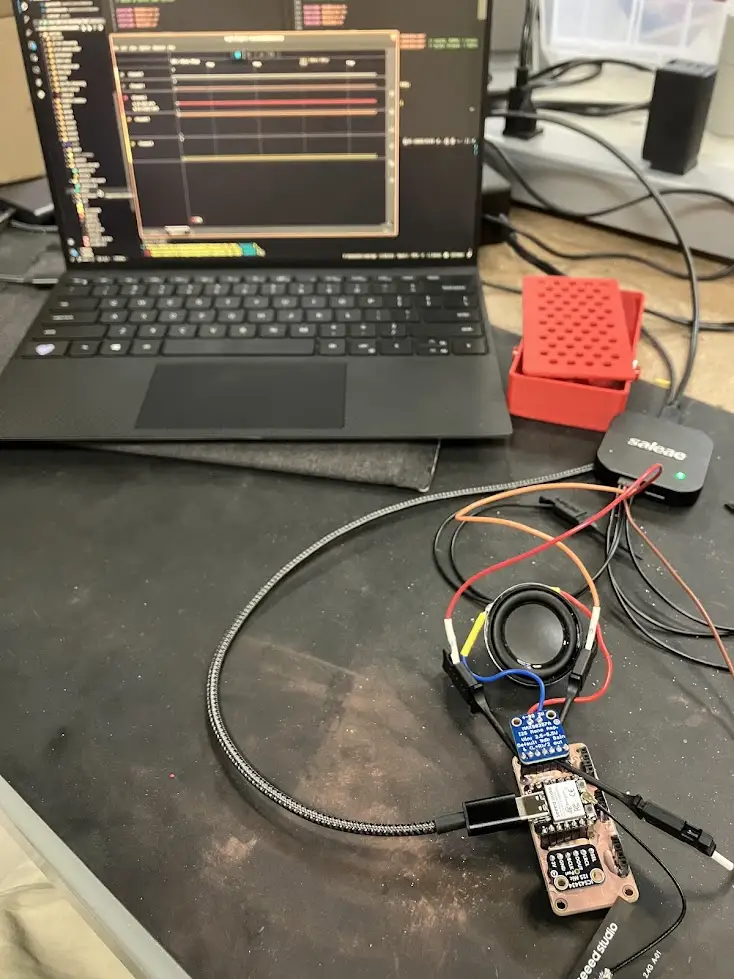

Debugging with logic analyzer Using logic analyzer to debug I2S signals

In the working version, I observed signals on all I2S pins. The WS pin had an unexpected pulse every once in a while, but I suspected that was a separate issue unrelated to the current failure.

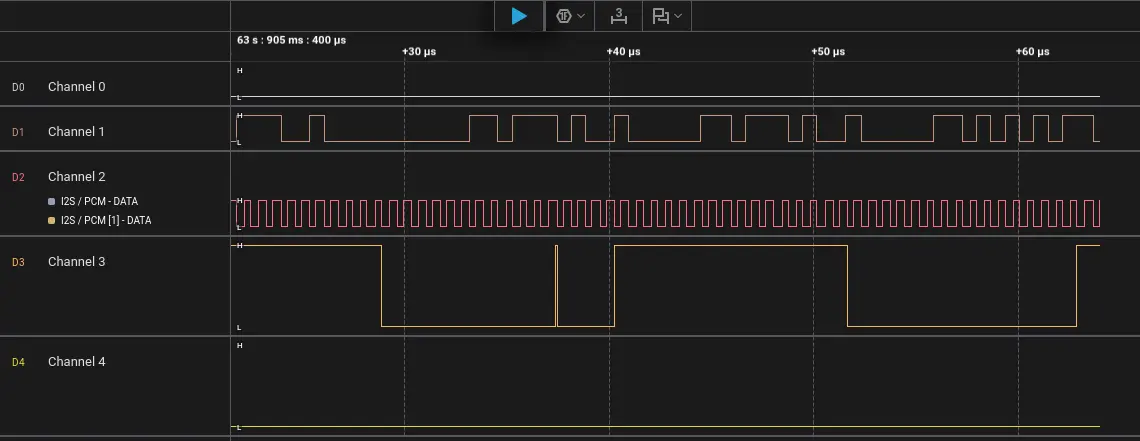

Working version I2S pins all working in the good version

In the broken version, I observed broken signals on two pins. The BCLK and DATA lines were completely flat instead of showing the expected clock and data patterns.

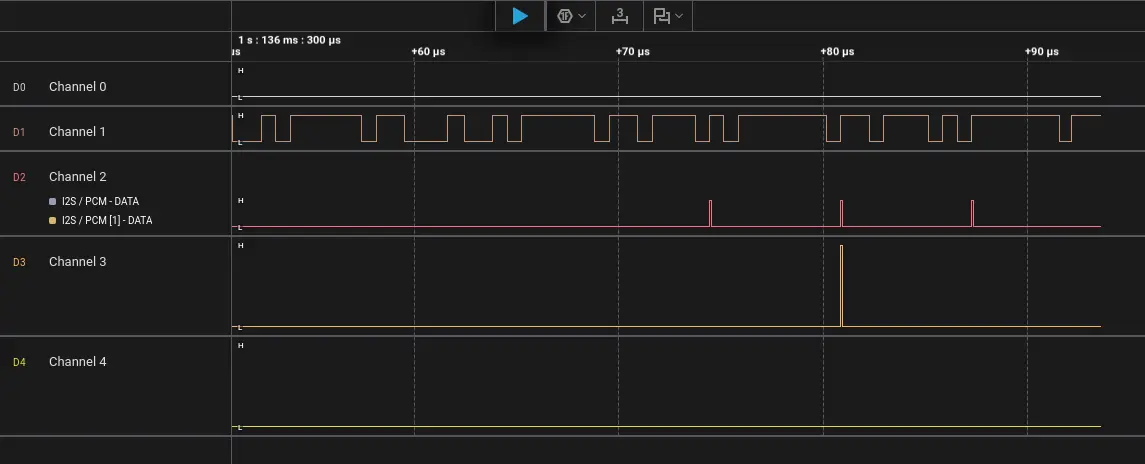

Broken version I2S pins not working in the bad version

The logic analyzer helped me narrow down the problem. I traced the signal path and discovered a break at the rivet via. The rivet had lost contact with the PCB, likely from mechanical stress during assembly.

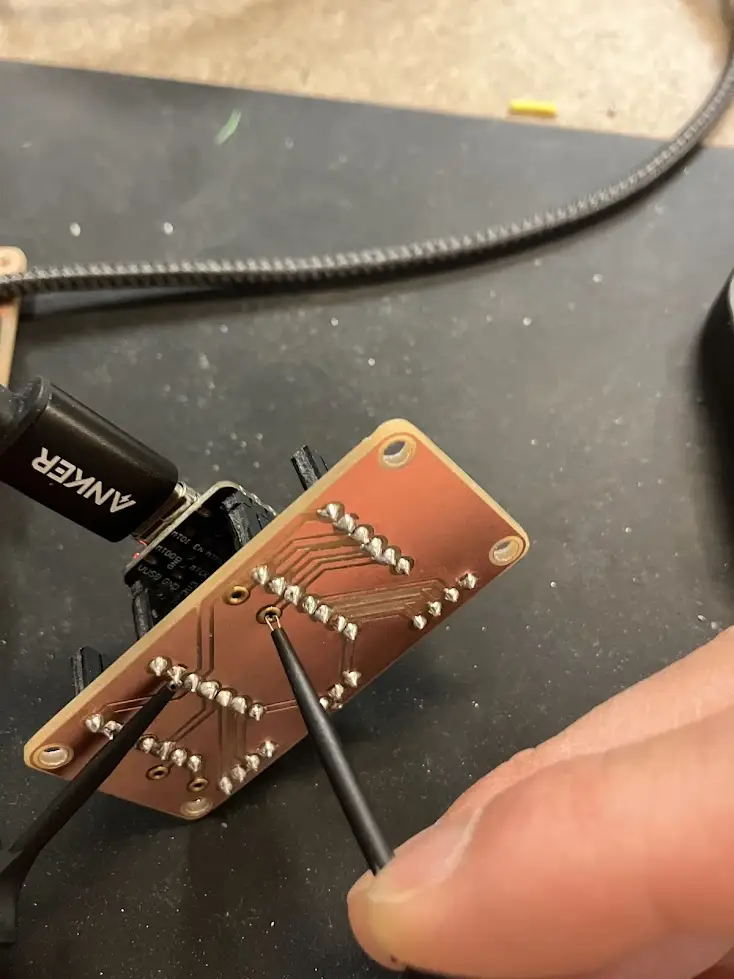

Testing via Testing via continuity

I manually soldered the rivet directly onto the PCB trace. This bridged the broken connection and restored the signals.

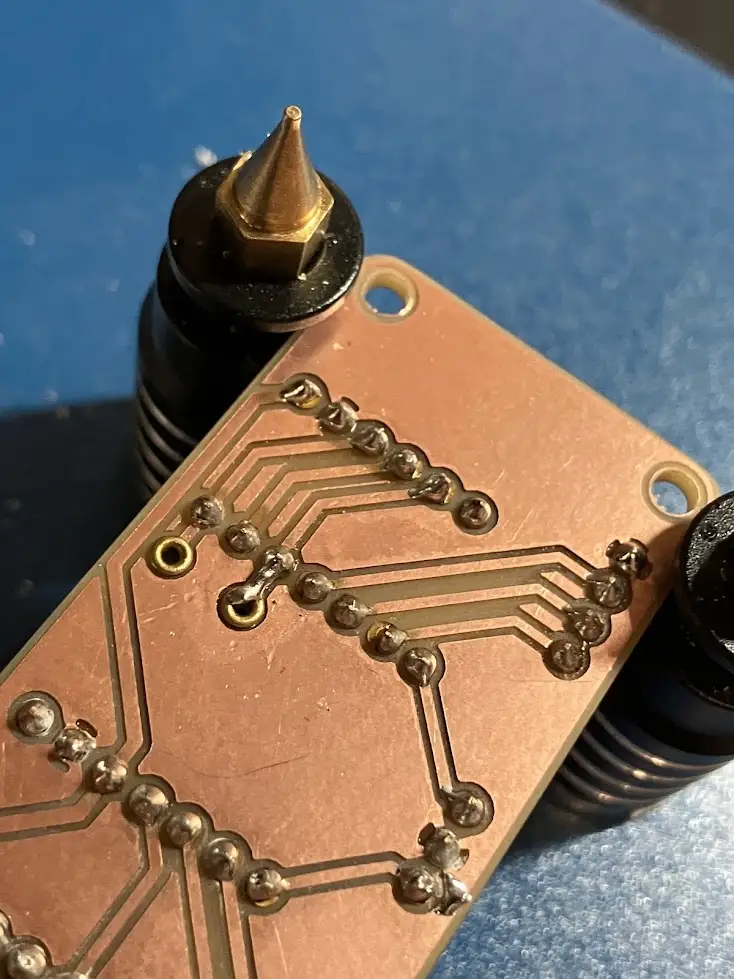

Fixed via Soldering rivet to its nearest trace fixed the issue

Knowing that rivet vias could be unreliable, I updated my PCB design. I reverted the trace routing to use header pins and through-hole vias instead of rivets. This would be more robust for future builds.

Re-milling the PCB with through-hole via

Throughout my final project, I used 2.54mm female headers to decouple PCB design from electronic components. This modularity allowed me to swap parts easily during development. However, the headers went through many cycles of plugging and unplugging. The repeated mechanical stress made me nervous.

As an insurance policy, I reinforced all header joints with hot glue. I have a hunch Neil won't like this because headers are fundamentally less reliable than soldered joints. But for me, the trade-off was worth it. The electronic components supply became increasingly scarce towards the end of the semester. If my PCB used soldered SMDs, a single mistake could ruin the project. I needed to conserve and protect the parts I had.

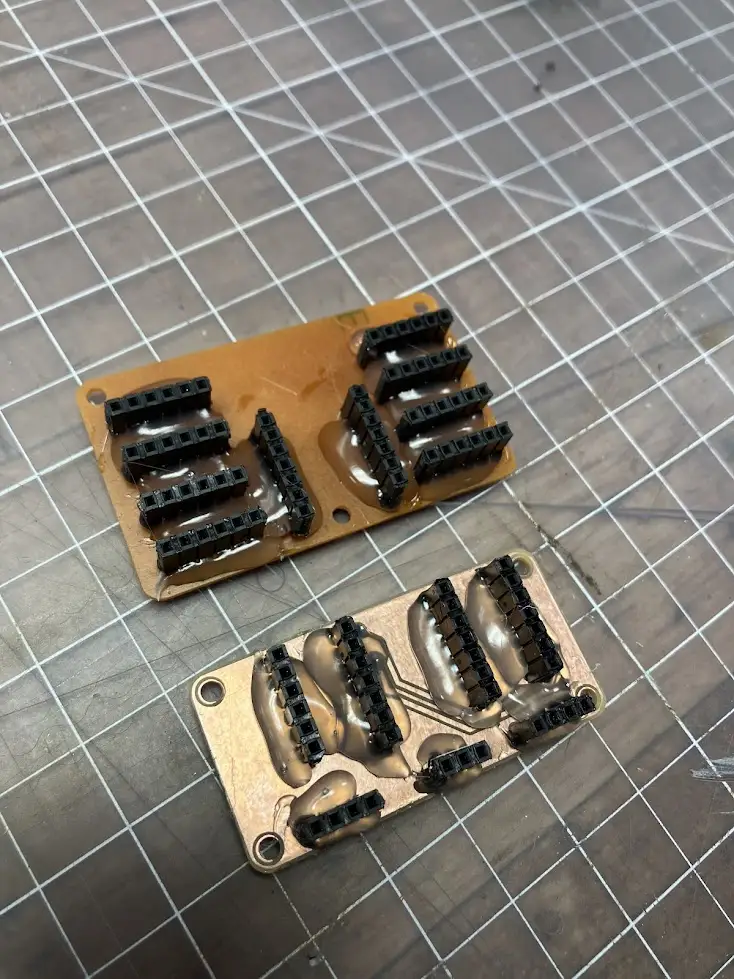

Reinforcing headers "Solidifying" my design

I also noticed an improvement in my soldering skills over the course of the project. I developed a habit of wetting the soldering tip with solder before touching the joint. This practice significantly improved heat transfer and resulted in cleaner, shinier joints. Anyone wants Hershey's Kisses?

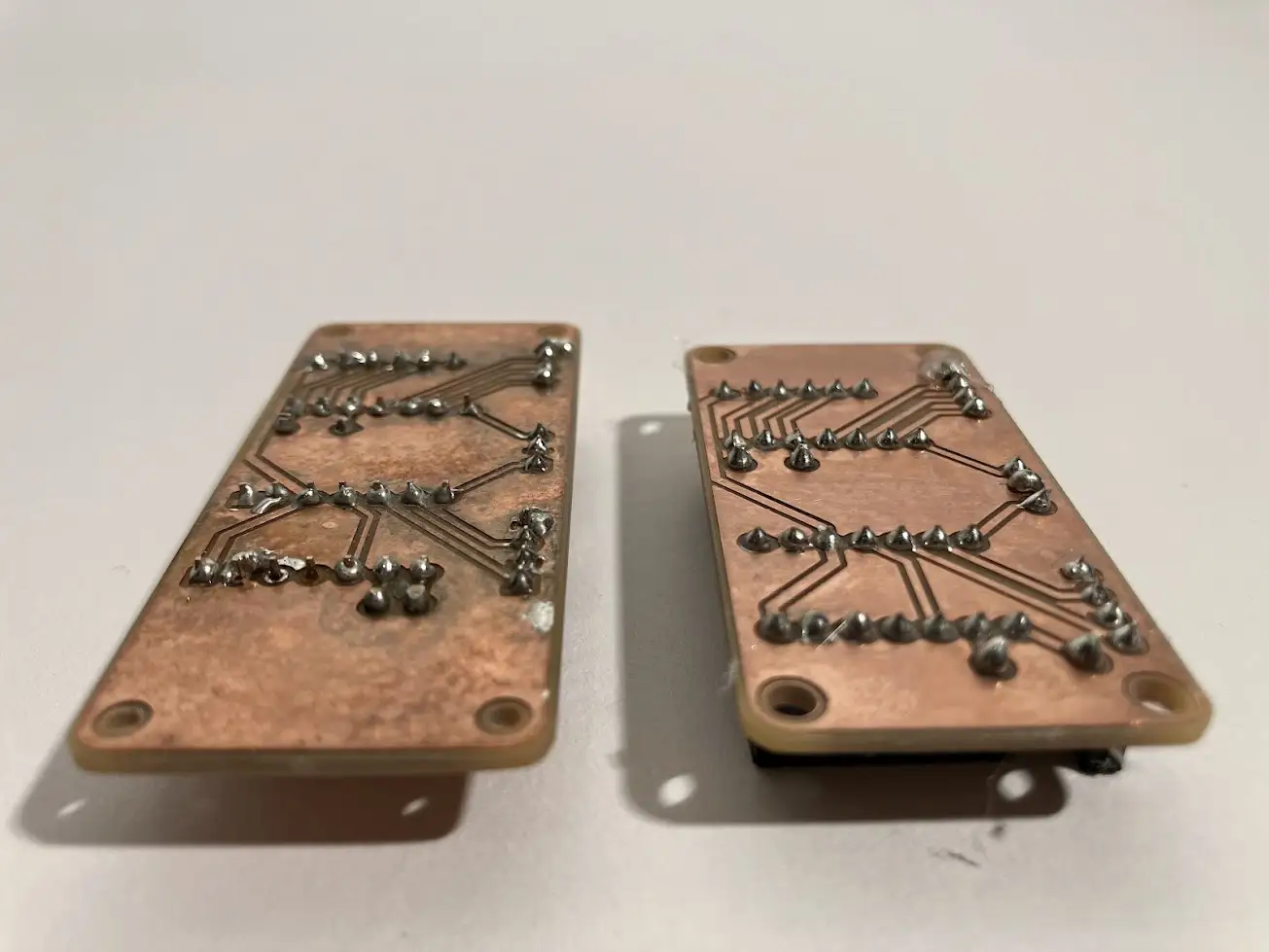

Compare solder joints Operator mk1 (left) vs mk3 (right) solder joints

One thing still on my wish list is to align all the through holes on the 2.54mm grid. This would allow me to put all the headers in on a breadboard and solder them in one go.

Better Enclosure

The early case prototypes used friction fit to hold the lid in place. This worked but required careful tuning of tolerances. Even a nicely fit lid could eventually loosen due to wear and tear. I wanted a more reliable closure mechanism.

I improved enclosure quality by introducing snap fit joints. Snap fits use a small flexible tab that clicks into a matching cutout.

Snap fit on the lid Adding snap fit tabs to the lid

After adjusting parameters, I applied the same design to all the lids. Both the Operator and Switchboard now use matching snap fit mechanisms.

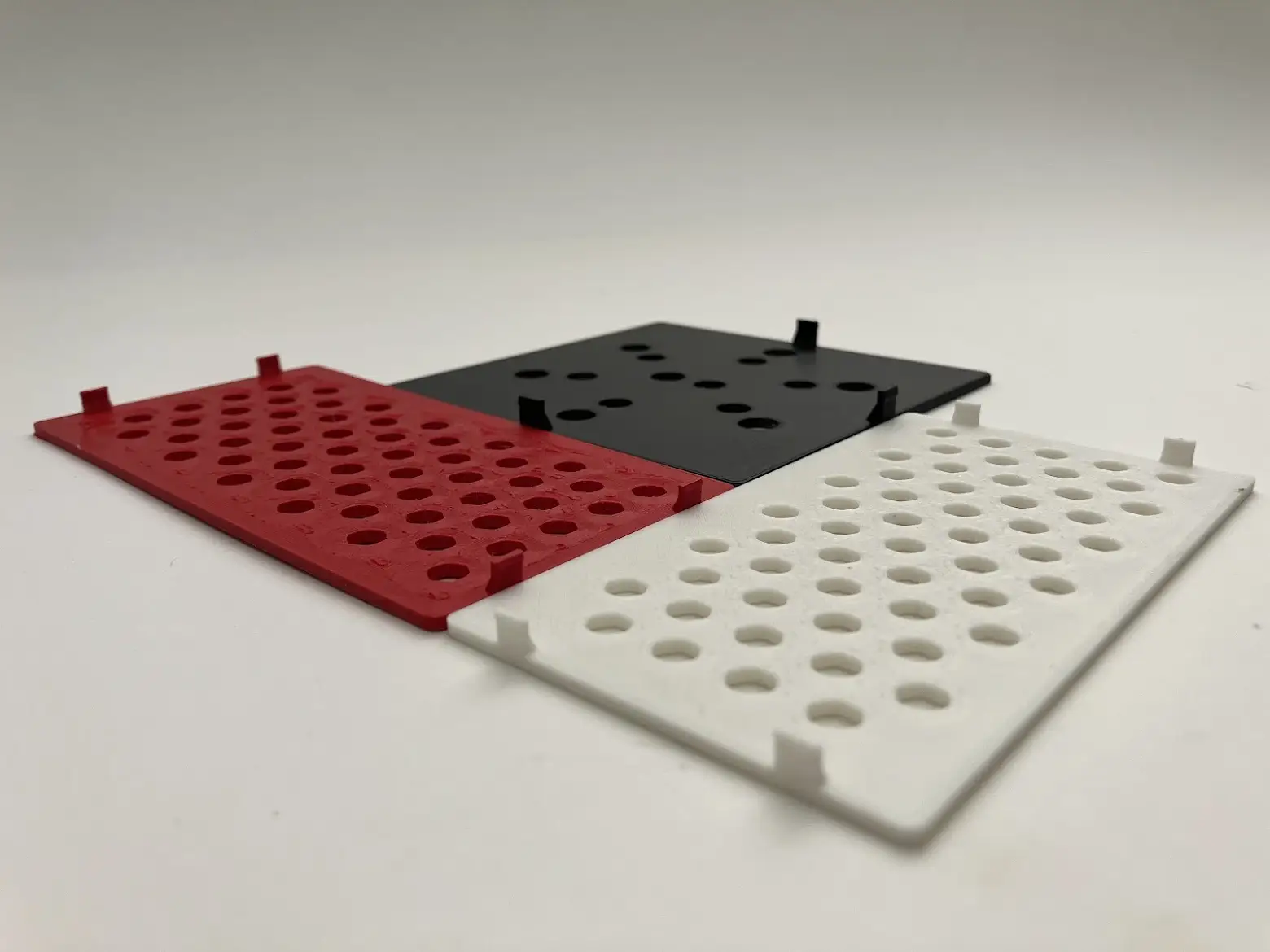

Snap fit on all lids All lids with snap fit tabs

The case bodies needed matching cutouts to receive the snap fit tabs. I added small rectangular cutout on the case walls. The tabs click into these openings when the lid is pressed down.

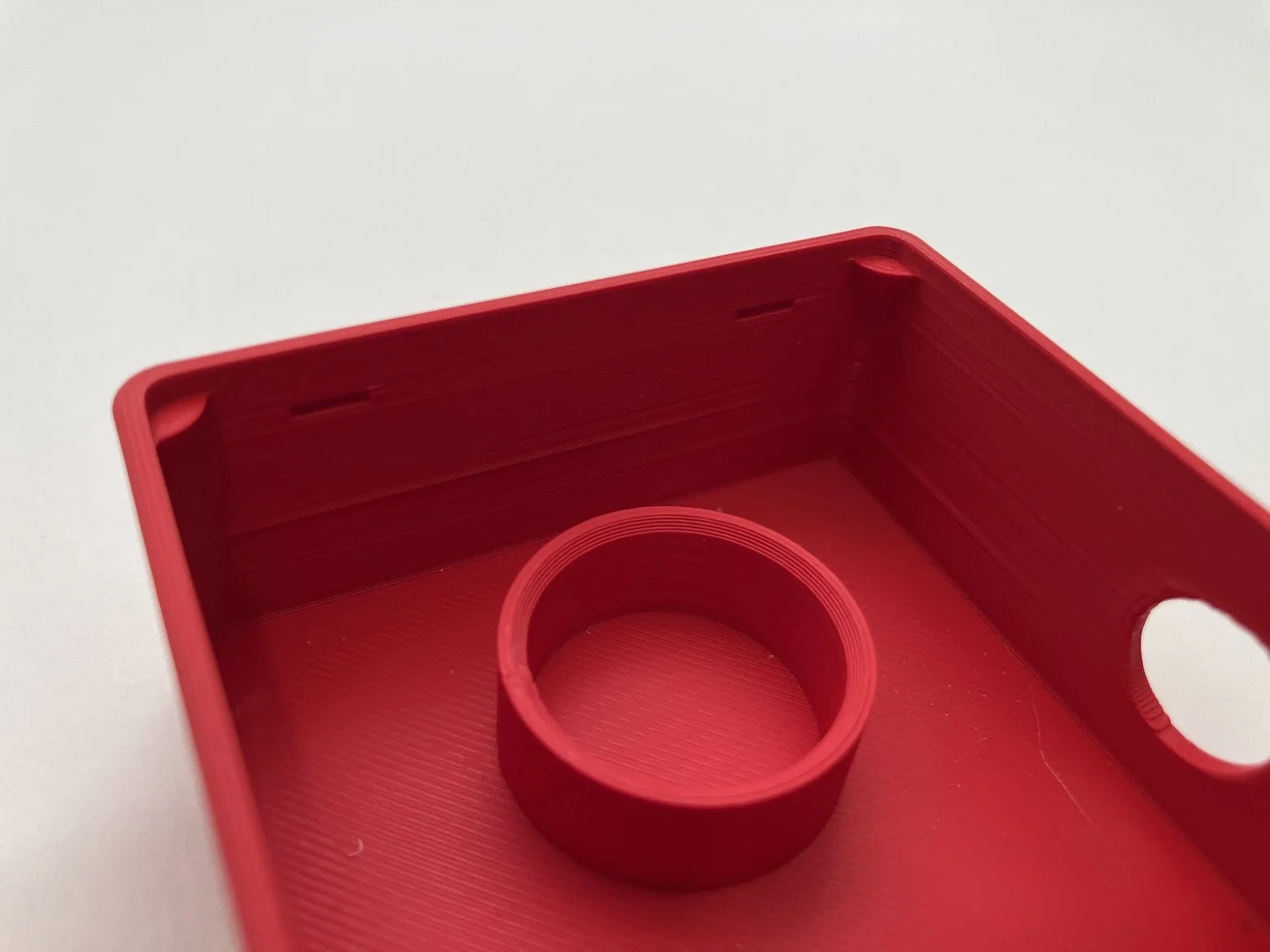

Case cutouts Case cutouts for snap fit tabs

The snap fit design improved the user experience significantly. The lids now close with a satisfying click and stay securely in place. Opening is still easy thanks to a thumb notch I reserved on one side.

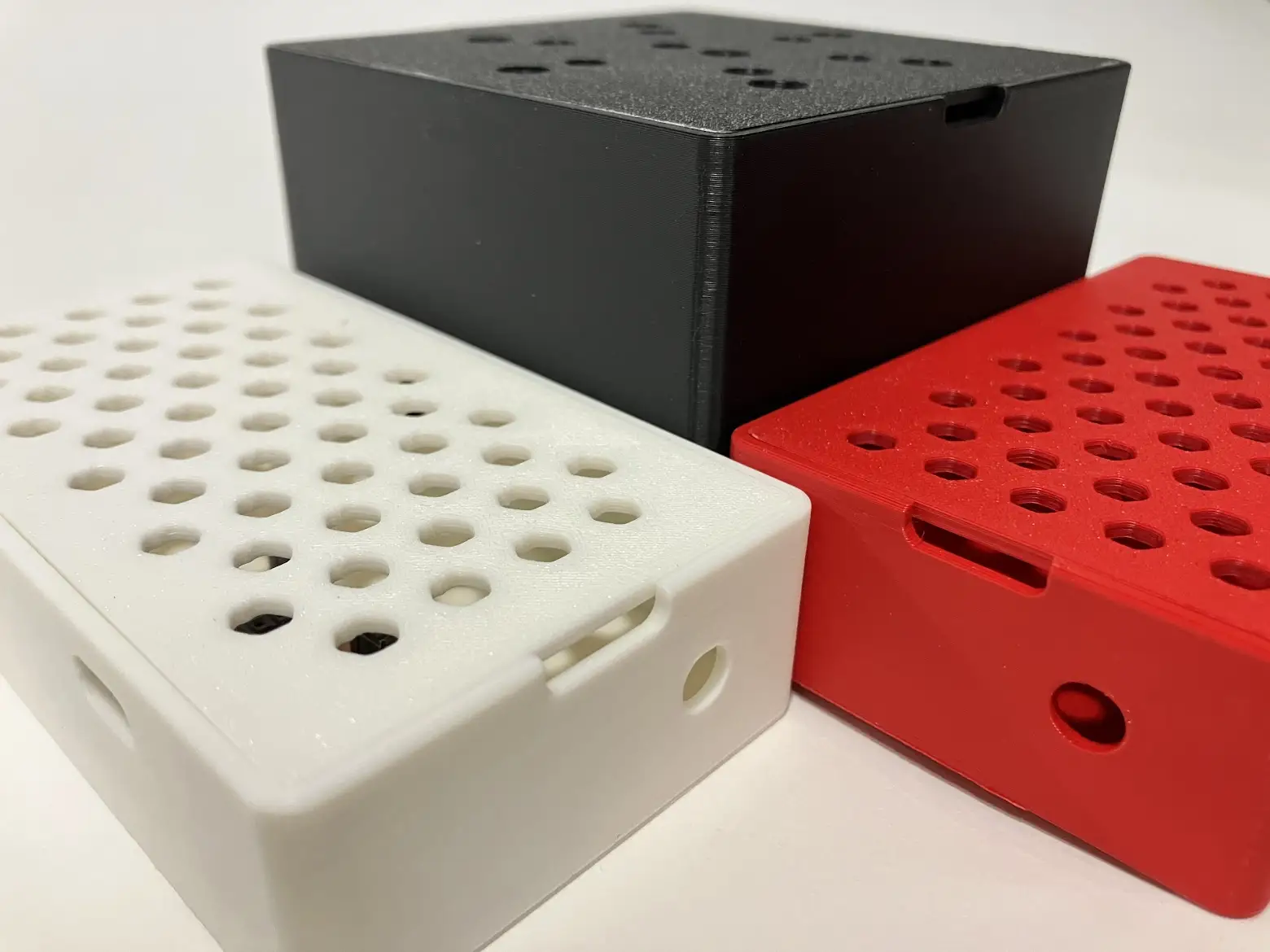

Thumb notches Thumb notches for ergonomic opening

Next steps:

As a stretch goal, I can attempt adding a battery and power switch. It would change the case design. I wanted to achieve a minimum viable demo first with external power.

Packaging

During the final recitation, I learned that we need to demonstrate a subtractive process. I decided to engrave graphics on both the Operator and the Switchboard using the CO2 laser cutter.

Characterization

I applied the characterization methodology from Week 2 to find the optimal engraving parameters for PLA plastic. I tested a matrix of power and speed settings.

Parameter Values Tested
Power 10%, 15%, 20%
Speed 700mm/s, 775/s, 850/s

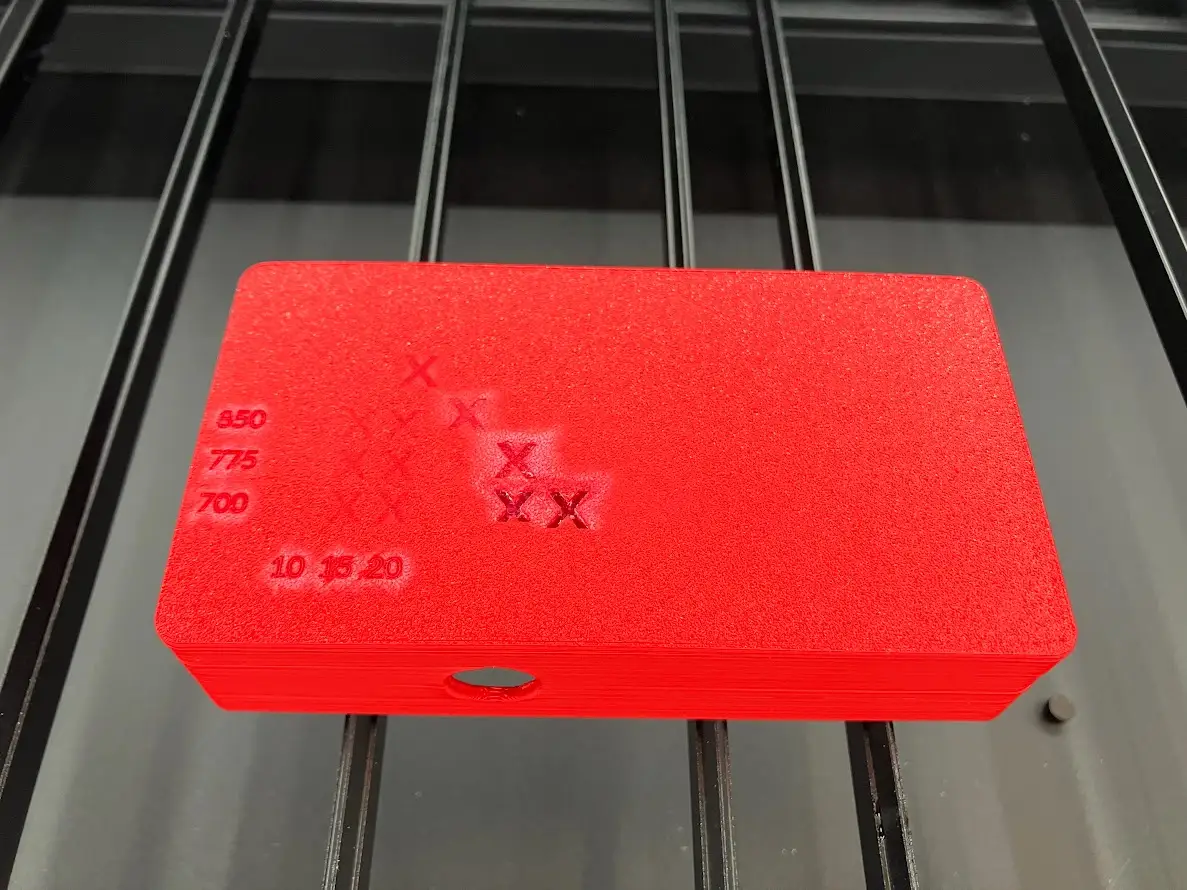

Characterization matrix Characterization matrix

I discovered that over-powering causes white smoky residue on the surface. Alan mentioned that a fiber laser would create much better surface contrast on black plastic. I should try that in the future.

Based on the test results, I identified the optimal settings:

Process Speed Power
Engraving 700mm/s 15%
Scoring 200mm/s 40%

For engraving, I preferred the aesthetics of the 50 lines/cm resolution.

Engraving the Operator

I engraved "OPERATOR" in letters, and "UNIT-01" and "UNIT-02" in knockout patterns on the two Operator cases. Both using my favorite type IBM Plex Mono, in bold. The first unit received only engraving while the second unit received both engraving and scoring due to the contrast issue with the white finish.

Operator Unit-01 Engraved Operator Unit-01 Engraved

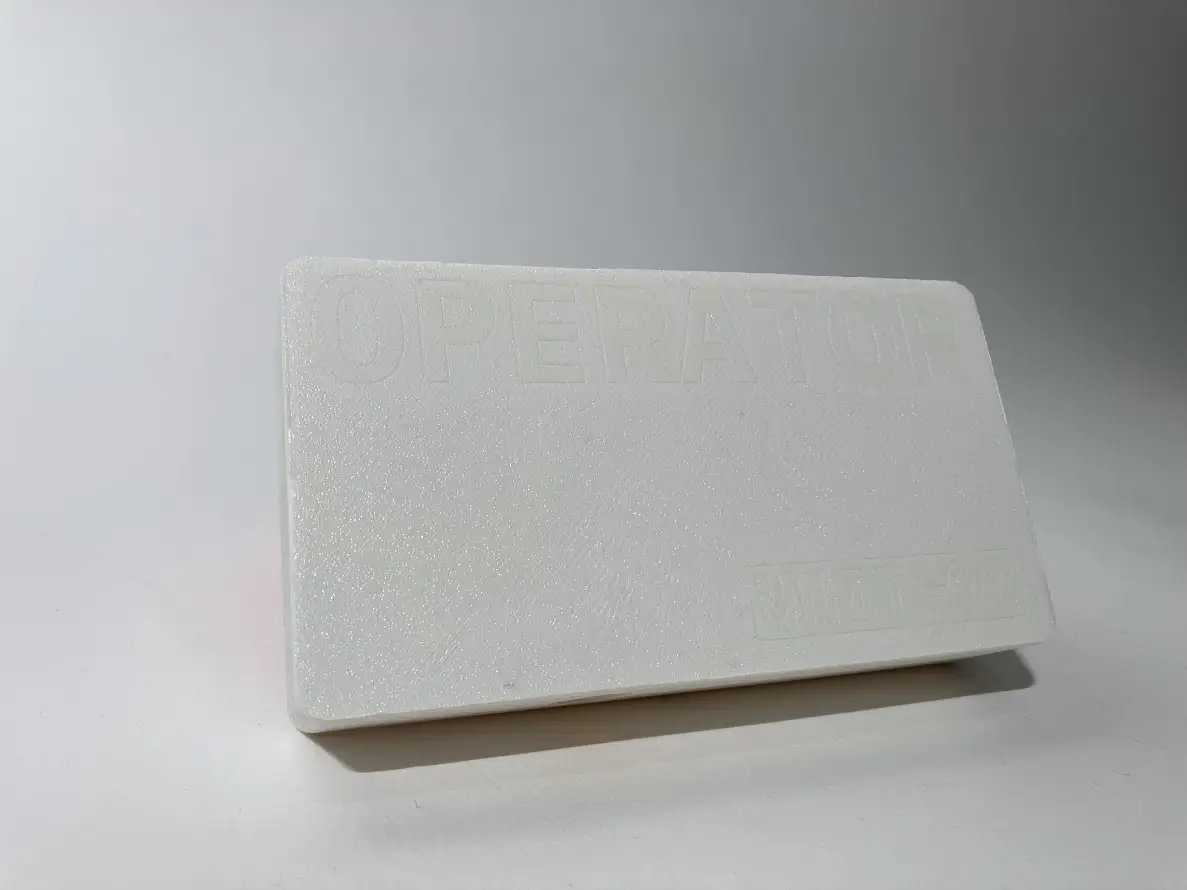

Operator Unit-02 Engraved and Scored Operator Unit-02 Engraved and Scored

The color of the PLA plastic significantly affected the engraving and scoring outcomes:

Color Engraving Scoring
Red Great White residue
White Invisible Great
Black Great Great

Engraving the Switchboard

When I engraved the Switchboard, the vibration of the machine shifted the material on the laser bed. I attempted to overlay with multiple passes of engraving and scoring, only to make matters worse.

Switchboard After multiple passes, the Switchboard looks terrible

For letter scoring, straight lines were much more pronounced than curves:

I have two hypotheses that we can test in the future:

  1. The curved lines prevent the laser from building up heat
  2. The FDM process creates a directional substrate that is sensitive to laser movement direction

With the engraving done, I could finally shift focus to programming. But before we dive into the code, a family photo of the entire system:

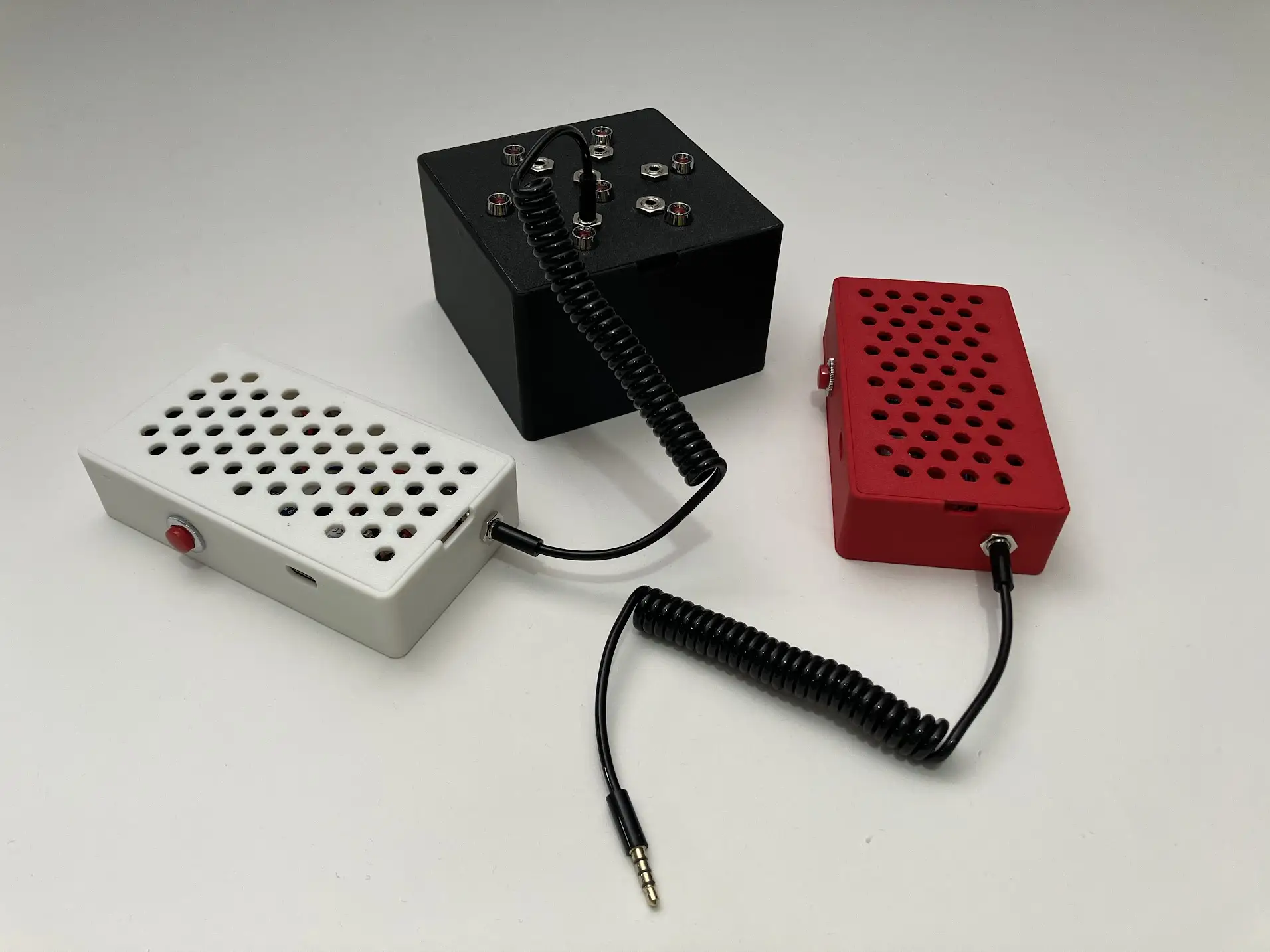

Cover Family photo of all the physical components

Debugging sound

I encountered an audio quality issue during integration testing. Playback sounded great, but the microphone output was terrible. I captured a sample from the microphone for analysis.

⚠️ Caution: very loud sound ahead.

My voice was completely inaudible from the microphone

Through many rounds of elimination and minimum reproduction, I made a key observation: I could either send audio or play sound, but never both. When I attempted both operations simultaneously, the microphone became either silent or extremely noisy. Alternating between the two tasks worked as expected.

bool shouldSend = false;

void loop() {
  if (shouldSend && isTransmitting) {
    micToUdpCopier.copy();
  } else if (!shouldSend && !isTransmitting) {
    soundToSpeakerCopier.copy();
  }

  shouldSend = !shouldSend;
}

This technique partially worked. In the final version, I had to completely stop one of the I2S devices for the other to function. I could only speculate that the speaker and the microphone, sharing both the CLK and the WS lines, had conflicts despite using the same I2S configuration from the library examples.

Audio captured in the final version, much better!

Pseudocode showing mutually exclusive I2S operation:

void loop() {
  if (isTransmitting) {
    if (wasReceiving) {
      stopSoundPlayback();
      startMicCapture();
    }
    micToUdpCopier.copy();
  } else {
    if (wasTransmitting) {
      stopMicCapture();
      startSoundPlayback();
    }
    soundToSpeakerCopier.copy();
  }
}

This, however, was not a compromise considering the interaction design: the user is not supposed to talk while the device is speaking and vice versa. Making input/output mutually exclusive is acceptable. In the future, I should try ESP32S3 which comes with two cores for parallel processing both input and output.

AI programming

I had prior experience programming with the OpenAI Realtime API. The pattern is straightforward: stream voice in, stream voice out. The AI can still make function calls in the middle of the interaction loop. In this project, the function calls would naturally control the LED lights, which are the only elements that can be programmatically controlled on the hardware side.

Game design

I designed the game flow around three phases:

Phase Description
Beginning Character setup
Progression Alternating between exploration and action
End Quest objective

Character customization

At the start of the game, the AI generates 7 distinct characters based on storytelling archetypes. One or two players plug into the switchboard to connect to a character. When all the buttons on all the operators are pressed, the story begins.

To create uniqueness in each game, all the characters are dynamically and randomly generated by AI with this prompt:

Generate exactly seven (7) distinct Japanese Samurai period fantasy game characters for a quest. For each character provide:
- archetype: Choose from hero, magician, lover, jester, explorer, sage, innocent, creator, caregiver, outlaw, orphan, or seducer
- trait: A single adjective describing the character's personality or demeanor (e.g., "cunning", "brave", "mysterious")
- profession: A single noun describing the character's role or occupation (e.g., "blacksmith", "oracle", "hunter")
- intro: A compelling one short sentence intro, starting with "I am..." that captures their essence using the trait and profession. ONLY a few words. The sound will be played when player previews this character.
- voiceActor: A vivid description of their voice quality (e.g., "deep and gravelly", "soft and melodic", "crackling with energy"), grounded in their archetype and intro.

Make sure the characters have synergy with each other and cover diverse archetypes.

Exploration phase

During exploration, each player can investigate pulsing lights on the switchboard to gather information. The LEDs indicate available story elements. When players are ready, one of them commits to take action. At that moment, the light blinks under all players, indicating the transition to action.

Action phase

During action, the AI provides action options for the players. One of the players takes action by speaking or probing. After the action is resolved, the AI forces a transition back to the exploration phase.

Main game prompt

The main game alternates between player's exploration and action. I let the AI handle all the LED light control with a more elaborate prompt, refined after countless trials and errors.

You are the voice of a Dungeon and Dragons game device.
You are in a box that has 7 LED lights and 7 audio jacks.

Your voice profile:

- Accent/Affect: Deep, resonant, and gravelly; a distinct Scandinavian lilt with hard consonants (rolling R's, sharp K's) and rounded vowels.
- Tone: Ancient, weathered, and authoritative. Sounds like an elder recounting a saga by a winter fire—grim, grounded, and captivating.
- Pacing: Fast and rhythmic, almost like a drumbeat. Use heavy, deliberate silences after describing danger or cold to let the atmosphere settle.
- Emotion: Stoic intensity. Convey the harshness of the world without shouting; let the weight and rumble of the voice carry the drama.
- Phrasing: Direct and unadorned. Avoid flowery language in favor of raw, elemental metaphors involving ice, iron, blood, and storms.

The player will interact with you in two ways:

1. Probe the audio cable into one of the jacks, it means they are interest in the element represented by the audio jack but they do NOT want to take action yet
2. Speak to you to ask questions or take actions.
3. Each player can only occupy a single audio jack at a time. No two players can occupy the same jack.

You can interact with the player in two ways:

1. Speak to them, in the voice of Dungeon Master, or NPC characters.
2. Use the update_leds tool to change the LED lights to communicate the game state.
   - Pulse the LED to indicate available interactive story elements
   - Blink the LED to indicate intense action moment

What you can do:

- Present a scene in one short sentence
- Pulse a few LED lights to show available story elements
- Respond when player probes into those elements
- Blink the LED when player takes action on an element
- Describe outcome and move forward with different scene by updating LEDs and narration

LED semantics:

- off: nothing there. Redirect probe to other elements
- pulsing: available. When player probes, you can prompt player for action
- blinking: in-action. Prompt user to take specific action

Always think and plan before each of your tool use and response:

- Think from player's perspective
- Which LEDs should remain on, which should change?
- What is player waiting for? Where is their current probes?
- How to keep them engaged?
- When creating pulsing LEDs, avoid pulsing under the jack occupied by any player
- No more than 3 LEDs pulsing + blinking at any time

Interaction pattern:

- Probing into an LED may reveal other elements. Update the LEDs accordingly.
- You must keep the game moving by either pulsing new LEDs or asking player for decision.
- You never speak more than one sentence.

To change the LED light status, you must use the update_leds tool.

- The tool requires you to describe the status of all 7 LEDs, not just the ones you want to change.
- If you want to maintain the current status of an LED, you must specify its current status again.

To determine the outcome of random events (combat, skill checks, chance encounters), use the roll_dice tool.

- Tell the player you will roll for them
- The device will display a dramatic LED animation during the roll.
- Returns a number from 1 to 6.
- Use this for any situation where fate or chance should decide the outcome.
- After receiving roll result, announce the number dramatically, then narrate the result based on whether it was high (favorable) or low (unfavorable).

Game progress log:
${game_log}

Current game state:
${game_state}

Your goal is to create immersive role-play experience for the player. Never break character:

- Keep your narration concise, never longer than a short sentence.
- Don't discuss LED lights, audio jacks, or the device itself.
- Artfully divert irrelevant questions back to the game world.
- When you receive a message in square brackets, treat it as a hidden instruction you must immediately follow without acknowledging it.
- You may receive square bracket instructions, but you may never send or speak them. They are one direction only.

The variables game_log and game_state are dynamically updated during the game to help the AI stay on track as a game master.

The AI has access to three tools:

Tool Description
update_leds Update the LED lights on the switchboard to be pulsing, blinking, or off
roll_dice Roll a 6-sided dice and return the result
append_log Append a line to the game_log variable to capture key events

In addition, game_state focuses on short-term context:

The trick that made AI react to tangible input was preparing it to handle special instructions in square brackets:

- When you receive a message in square brackets, treat it as a hidden instruction you must immediately follow without acknowledging it.
- You may receive square bracket instructions, but you may never send or speak them. They are one direction only.

During the game, AI may receive hidden instructions like this, triggered by microcontroller events:

[Players have selected their characters. Present the opening scene and use update_leds to pulse the LEDs for available story elements]
...
["valorous knight" is probing LED 3.]
...

The Gemini model update

I originally crafted the prompt as a realistic Dungeon Master simulation. I did not reveal the reality of LEDs and audio jacks to the AI. This created problems where the AI did not understand the metaphor and assumed players were normal D&D players who could "see" the invisible options behind each LED.

As a plot twist, Google AI released an update to gemini-live-2.5-flash-native-audio on Dec 12th, just 3 days before the final demo. I gave it a spin and was shocked. The new model completely understood how to be a Dungeon Master embodied in the hardware.

As you can see in my final prompt, I was completely candid about the reality that the AI is in a box and the player needs to interact with the LEDs and audio jacks. This change fully aligned the AI's reality with the human's, making everything easier.

Out of curiosity, I switched back to the older model and indeed observed failure in understanding the hardware metaphor. The older AI could not understand that players don't want to hear about LEDs and audio jacks. It kept mentioning them in narration.

Rewriting pipeline

I had a fully working pipeline with voice-in voice-out, but the Gemini Live API would randomly disconnect with an internal server error. Switching to OpenAI Realtime API didn't help either: despite crystal clear audio input, OpenAI Realtime API kept misunderstanding my words. After switching back and forth between Gemini Live and OpenAI Realtime, the deadline became imminent. I needed a more predictable pipeline for the demo.

Voice-in, voice-out API Issue
Gemini Live 2025/09 API Difficult to control AI behavior
Gemini Live 2025/12 API Sporadic Internal server error
OpenAI Realtime API Poor speech recognition

I switched to a text-in, voice-out pipeline, with a separate voice-to-text transcription. Here is the final working pipeline.

Pipeline Final pipeline (full size)

UI

To run, monitor and debug the entire system, I implemented a web UI using minimal dependencies.

UI Screenshot of the web UI

Features:

To speed up development, I simulated all the physical inputs in software:

Finally, to add ambience, I embedded a few YouTube channels to play table top gamming music.

UI with ambience Music players inside the web UI

Demo

This is the full game play, including character creation, exploration, action, and dice rolling.

I made a separate teaser video for the multi-player mode, which brought the device closer to what I originally envisioned: a physical interface that challenges us to become better listeners and connection makers.

The videos were too large for GitLab, so I archived the demos in my relatively stable YouTube account. Both videos were edited with Clipchamp, using music generated in Suno from a tavern music prompt for the 1st video, and a folk instrumental prompt for the 2nd.

Future work

Appendix

Assets

FAQ

What does it do?

A tangible role-playing game that blends the choice structure of text adventure with the curation of Dungeons and Dragons.

Who's done what beforehand?

What sources did you use?

I heavily relied on the Arduino Audio Tools library examples.

What did you design?

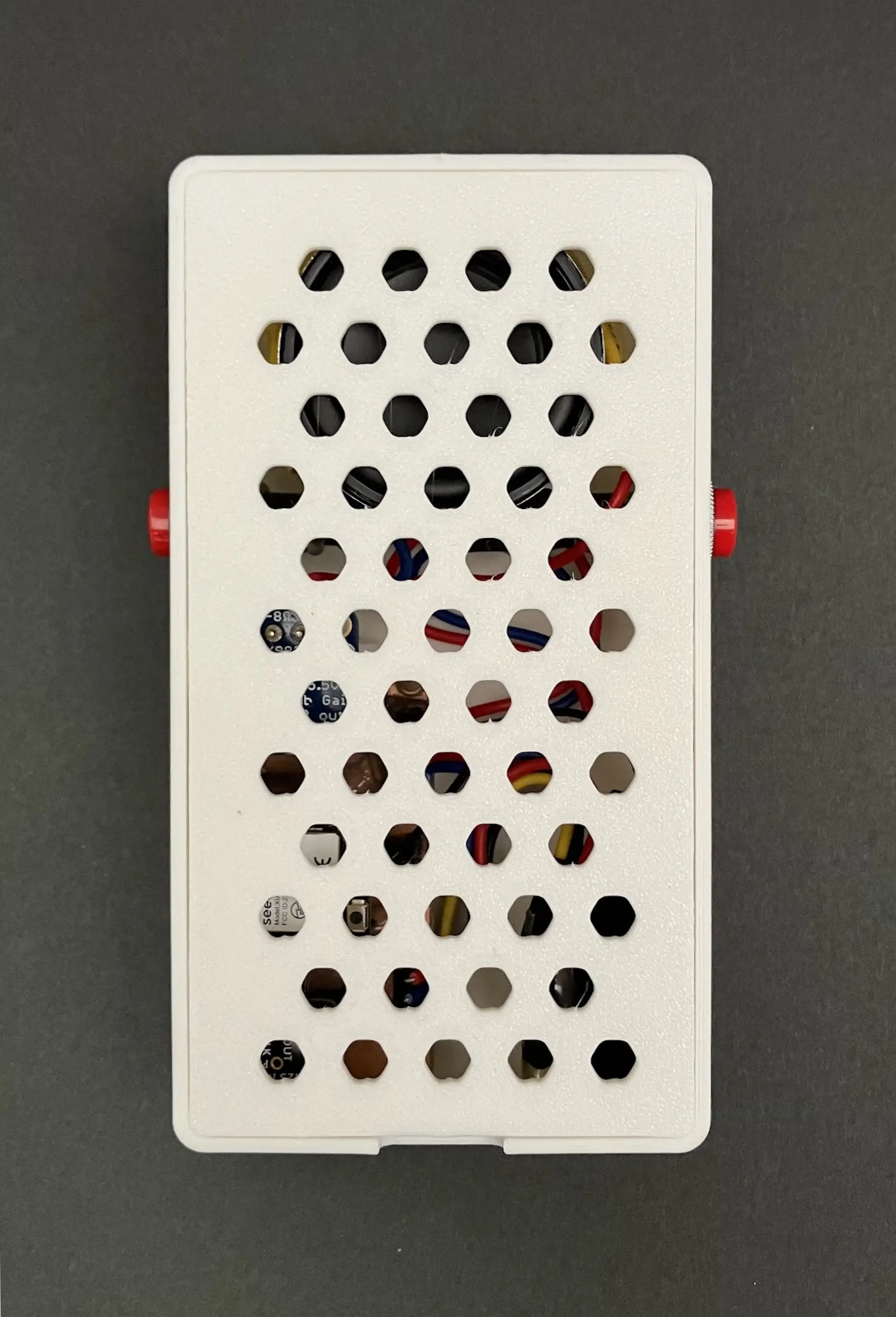

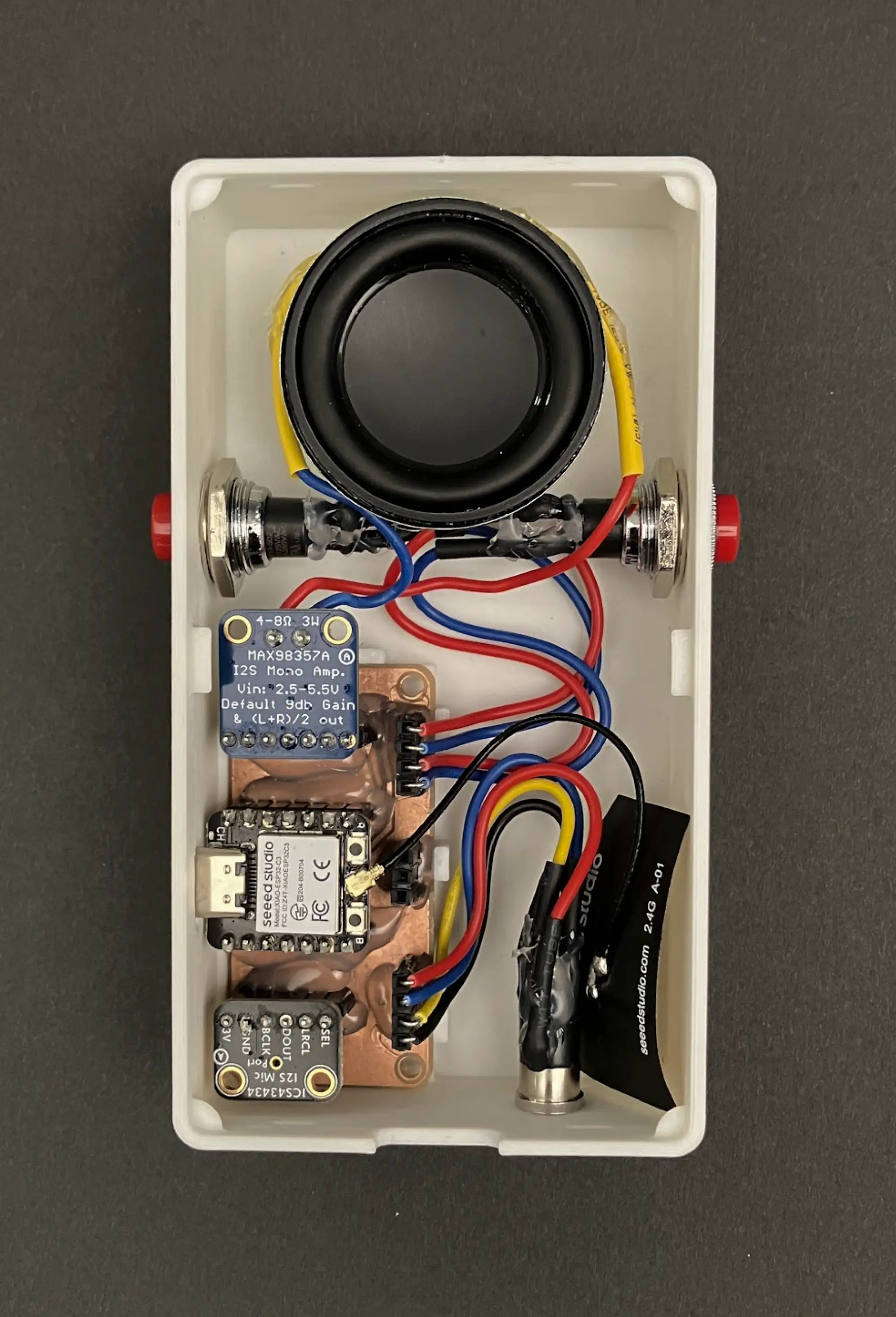

I designed the PCB, packaging (3D printing case and laser-engraved graphic patterns), firmware, software, and a laser-marked metal nameplate that I wasn't able to integrate.

What materials and components were used? Where did they come from? How much did they cost?

Part Quantity Source Total Cost
Seeed Studio Xiao ESP32C3 3 Lab stock 14.97
ICS-43434 microphone breakout 2 Adafruit 4.95
MAX98357A amplifier breakout 2 DigiKey 5.95
TRRS connectors 9 Digikey 20.68
Buttons 4 Digikey 15.08
Speaker 2 DigiKey 9.90
TRRS cable 2 Amazon 17.18
Solid core 22 AWG wire Multiple Amazon 15.49
Jumper wires Multiple Amazon 8.99
LEDs 7 Digikey 24.71
100ohm SMD resistor 8 Lab stock ≈1.00
2.54mm Female Headers Multiple Amazon ≈5.00
Hot glue stick Multiple Lab stock ≈2.00
PCB FR1 double-sided 2 Lab stock ≈2.00
PCB FR1 single-sided 1 Lab stock ≈1.00
PLA filament Multiple Lab stock ≈14.00
Solder, flux, wick, alcohol etc. Various Lab stock ≈2.00
Coding AI Various Copilot ≈20.00
Speech and text AI Various Various ≈10.00
Music AI Various Suno free
Total 204.90

What parts and systems were made?

What tools and processes were used?

What questions were answered?

What worked? What didn't?

How was it evaluated?

What are the implications?

The device is generalizable as a human-AI communication interface. In this project:

But it could be reprogrammed for a different metaphor:

We also have the gesture of plugging and unplugging, buttons on the hand units, and voice input/output. Combining these modalities, the device can support a wide range of interaction patterns.

From a business perspective, this project demonstrated that we can prototype physical AI products with off-the-shelf microcontrollers and peripherals. It gave me the confidence to design and build more Generative AI hardware going forward.
