Week 1
Computer Aided Design
Assignment
- Model (raster, vector, 2D, 3D, render, animate, simulate, ...) a possible final project
- compress your images and videos
- post a description with your design files on your class page
Final Project Idea
Idea: Smart HangBoardA rock climber's ideal training companion: a hangboard equipped with LED lights that indicate which holds to use. It features a timer activated by a load sensor, allowing you to program the board through an app on your phone that logs your workouts.
Initial Concept

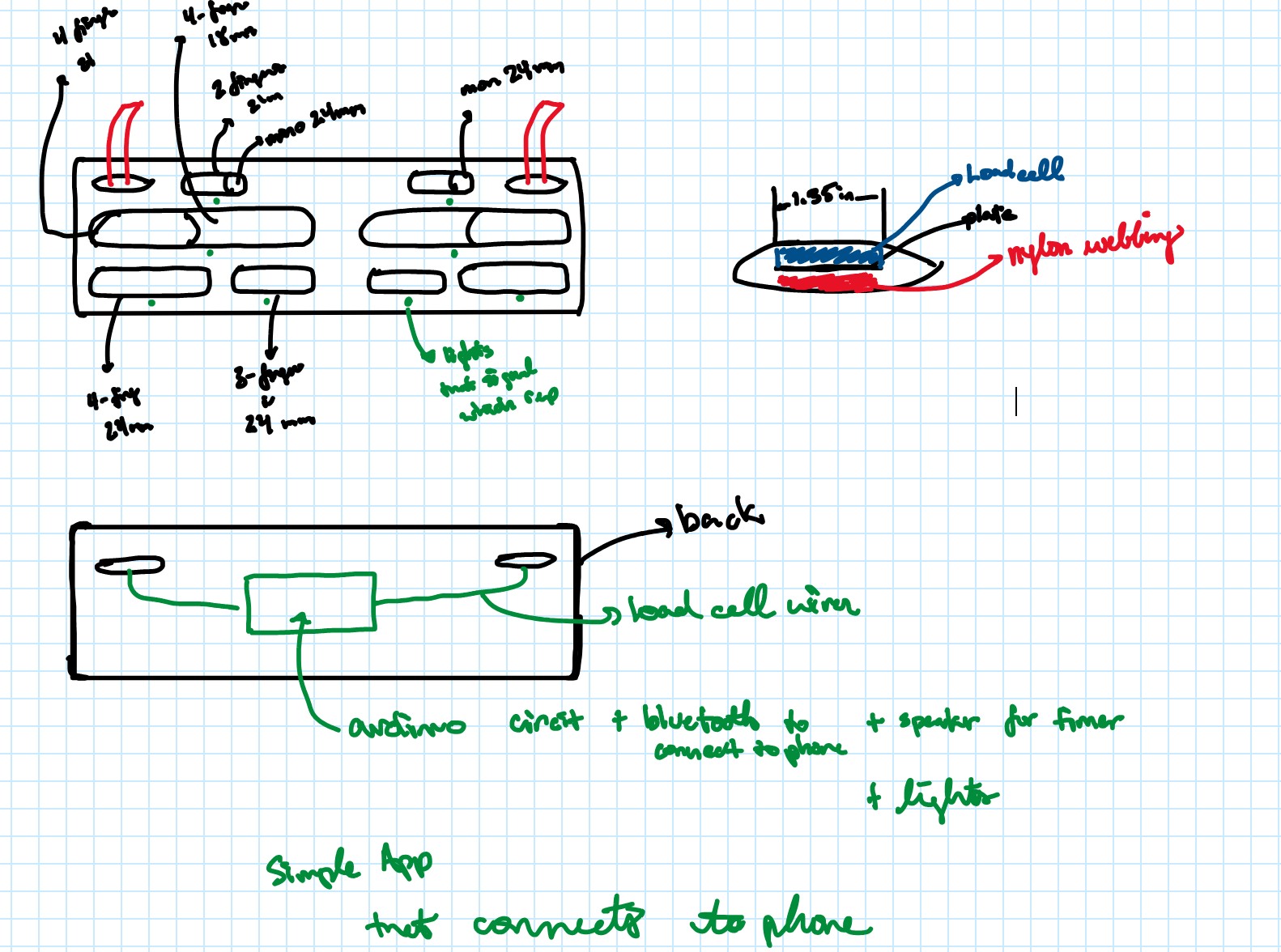

Looked at Two Stones HangBoard to get an idea for dimensions I used oneNote to sketch out some ideas.
Solidworks Models

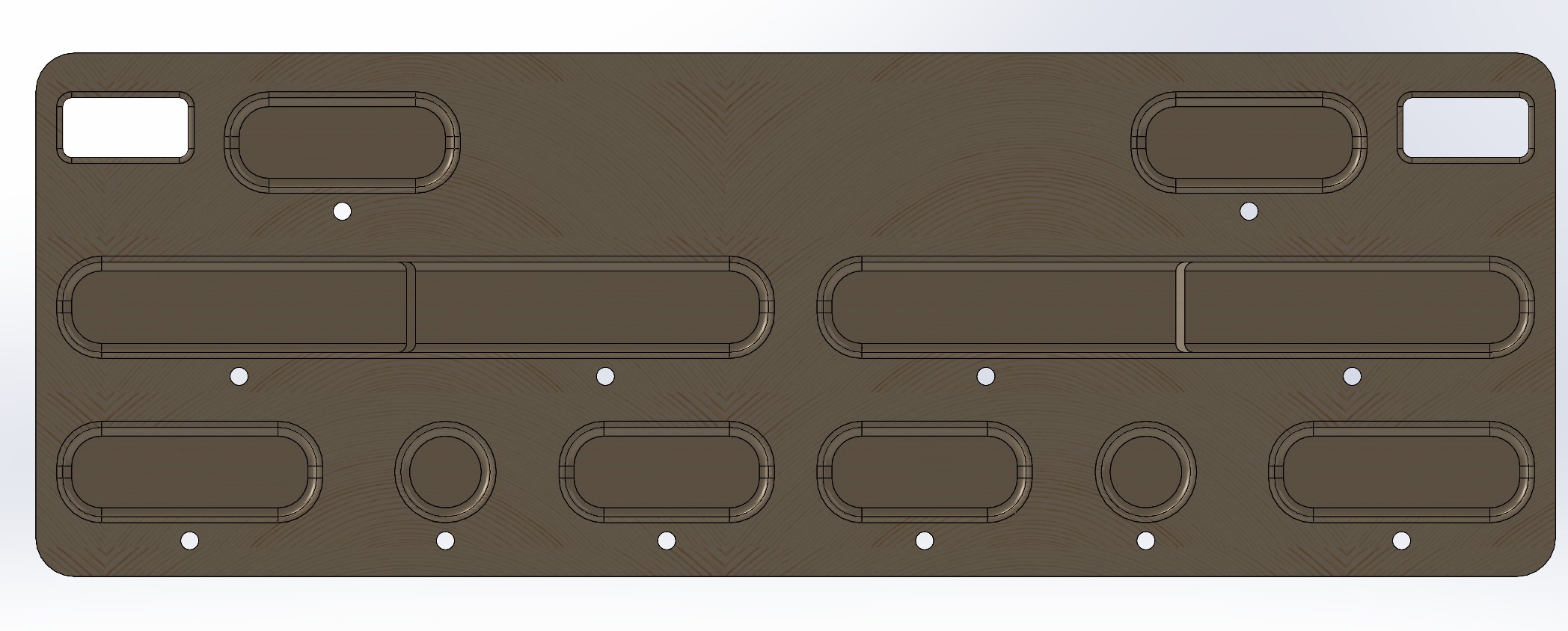

The Hangboard
The System
The hangboard can be mounted on any pull-up bar.
