Fundamentals

Resistance

Potentiometer (can measure rotation, or position if linear)
Force Sensitive Resistor (FSR) => Piezoresistivity (Piezo: from Ancient Greek πιέζω, “to press”).
Bonus: DIY approach with chemical functionalization:

Capacitance

The classics (1/2): MCU approach: (credit: Arduino)
The classics (2/2): 12 more pins with the NXP MPR121
Mutual Capacitance Matrix: MuCa: (open hard+software)
3d sensing: Microchip GestIC series (credit: Microchip)
High Accuracy (up to 28bits) “Capacitance-Digital Converter”: TI FDC2214
- demo of its “noise-immunity”
- github repo for dev board use with python (great for interstitial capacitance measurement)

Note: these examples focused on touch/finger sensing, but these sensors can measure much more (water level, shape distortion, etc).

Inductance

High Accuracy (up to 28bits) “Inductance-Digital Converter”: TI LDC1614
- github repo for dev board use with python + demo: Bonus: visualization of resonant frequency with remote resistance measurement.
- Research Application example

Acoustic

Types of Microphones: (credit: Grace Noel - Fiber@MIT)
MEMS mic: (credit: Coventor)
Bonus: MEMS mic jamming:

(credit: uChicago)

Bonus: custom speaker => custom mic:

Space

Distance

Sonar
- Principle:
(credit: Trion Projects)
- MEMS transducer:
(credit: Semiconductor Store)

Radar
- Principle: (more)
(credit: The Signal Path)
- Google Soli:
- Texas Instruments’ AWR6843AOP (dev. board)
Optical
- Sharp Familly:
- ST Familly (wider Field of View):
(credit: Pololu)
- APDS9960 multifunction: Proximity, Light, RGB, and Gesture Sensor!
(credit: ProtoSupplies)
- Depth sensor list - From the Kinect to the iPhone:

(credit: Microsoft, Apple)

3d Positioning

Lasers: Hivetracker
Magnetic:
- Polhemus Fastrak (example project)
- Razer Hydra

(credit: Razer, howiem.com)

Open Alternative: Plume (+dev logs)
RSSI & TDOA in UWB (6 GHz): DecaWave DWM1000

(credit: Adafruit)

Differential GPS (high-accuracy GPS): Example with Swift Navigation

(credit: Swift Navigation)

Inertial Measurement Units

IMU Basics:
- Accelerometer: it gives linear accelerations (and gravity vector)
- Gyroscope: it gives angular rate, it’s great for dynamic measures but it needs integration for orientation estimation and it creates drift (noise is accumulated)
- Magnetometer: it is slow but it doesn’t drift
More

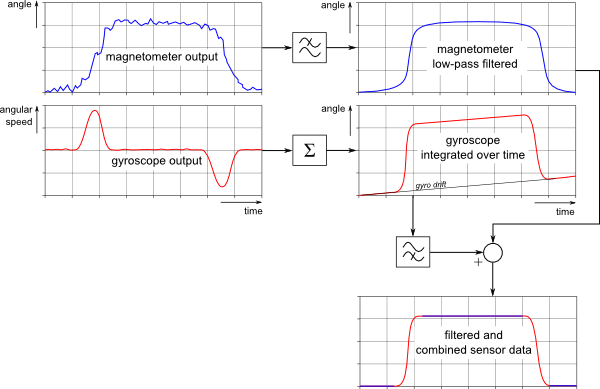

Sensor Fusion illustration

(credit: codeproject.com)

The most practical IC: BNO055 (with embedded sensor fusion)
Wireless IMU boards:
DIY: Optical Accelerometer!?

Biosignals

Start Experimenting

You can get a basic sensor kit for $10 or less:

(credit: Aliexpress)

Looking for a part?

The octopart comparator will usually find some of the cheapest in the fast providers
AliExpress will probably be cheaper, but usually slower
If you work with a Chinese manufacturer, TaoBao might be better (but not practical to send outside of China)
