Hydration Monitor Robot

Initial Ideas

Here's my thought process to a final project

I wanted a project that fell into 3 main criteria:

• 1. Something cute - The project had to have a cute factor, look good and like something I'd want to interact with
• 2. Something interactive - I wanted rather than a static light display, I wanted something where actions that the user took affect the state of the item. I wanted the item to give feedback to the user.
• 3. Something useful - I wanted an item that I would be compelled to use in my daily life. Though I realize now this list of demands is a bit high for a semester project so now I'm thinking as long as I get to make something that I get to use my art and embedded programming skills in one project, I don't care so much for it being super practical.

The Winning Idea: How Hydrated Am I?

I used to use apps where you water a cute plant by logging whenever you drank water as a way to motivate you to stay hydrated. However, I found that with no accountability, I would just log I drank water when I didn't so my plants wouldn't die.

The solution: A device that automatically measures how much water you drink using a load cell, then communicates via Bluetooth to a cute robot companion that reacts with different emotions based on your hydration level.

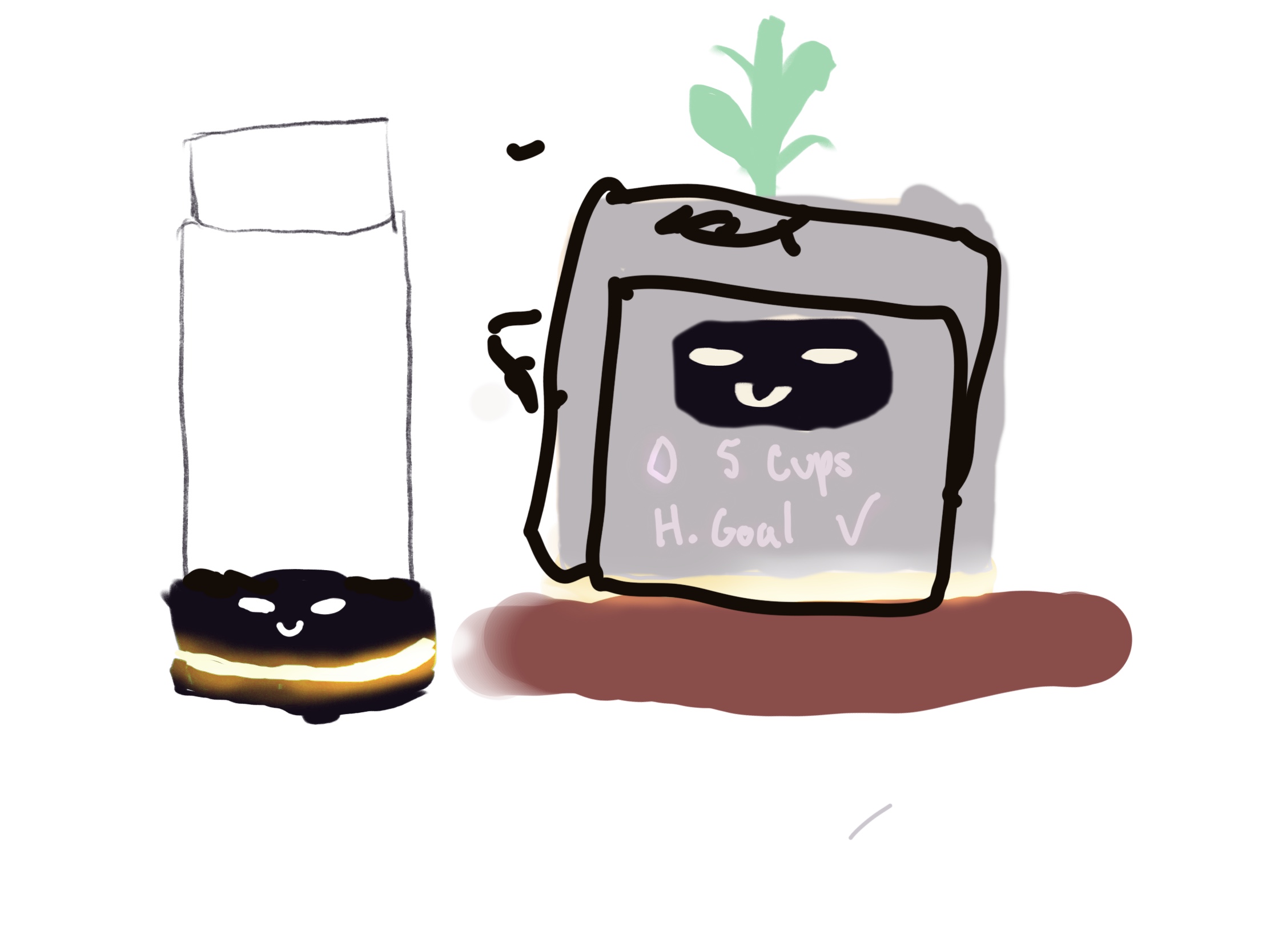

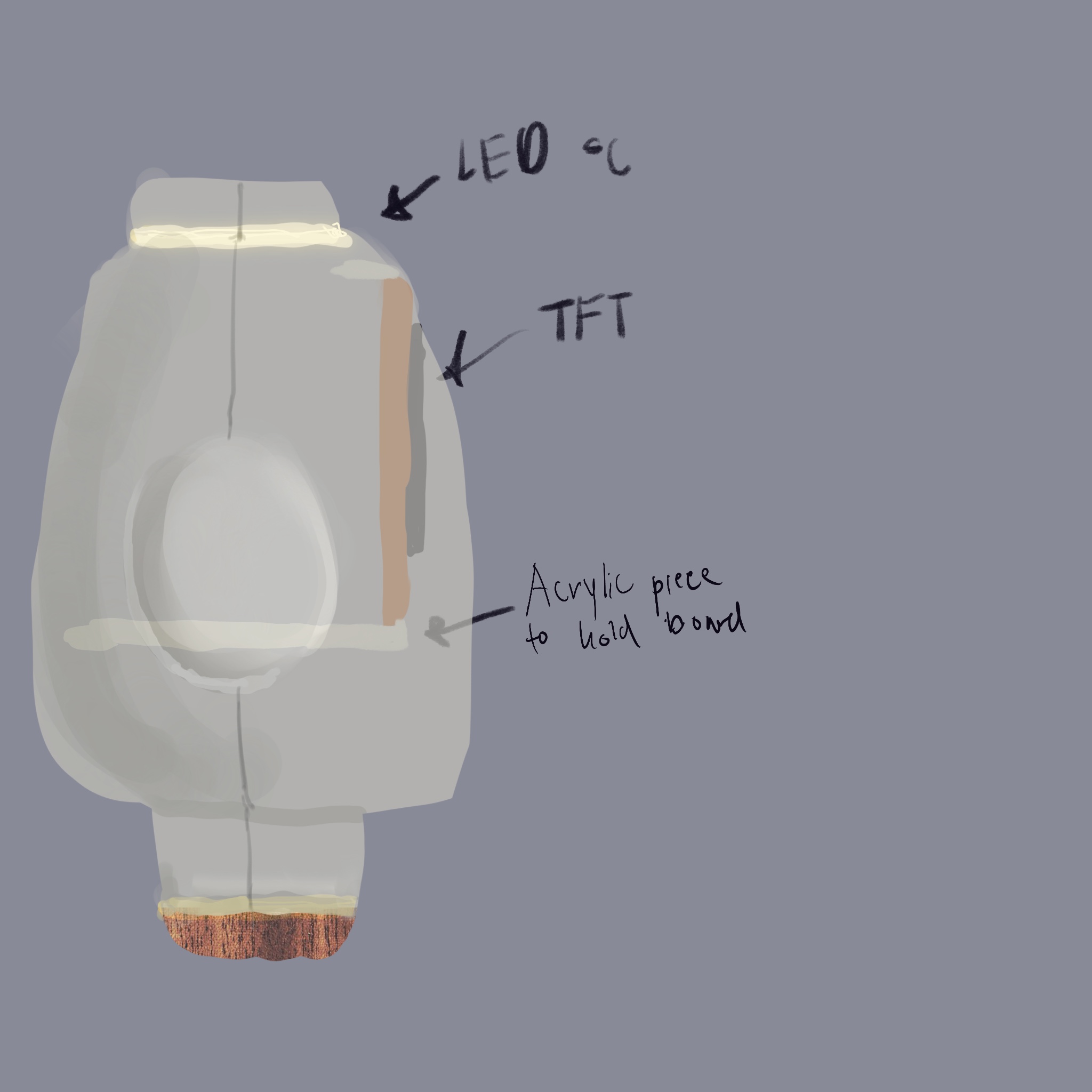

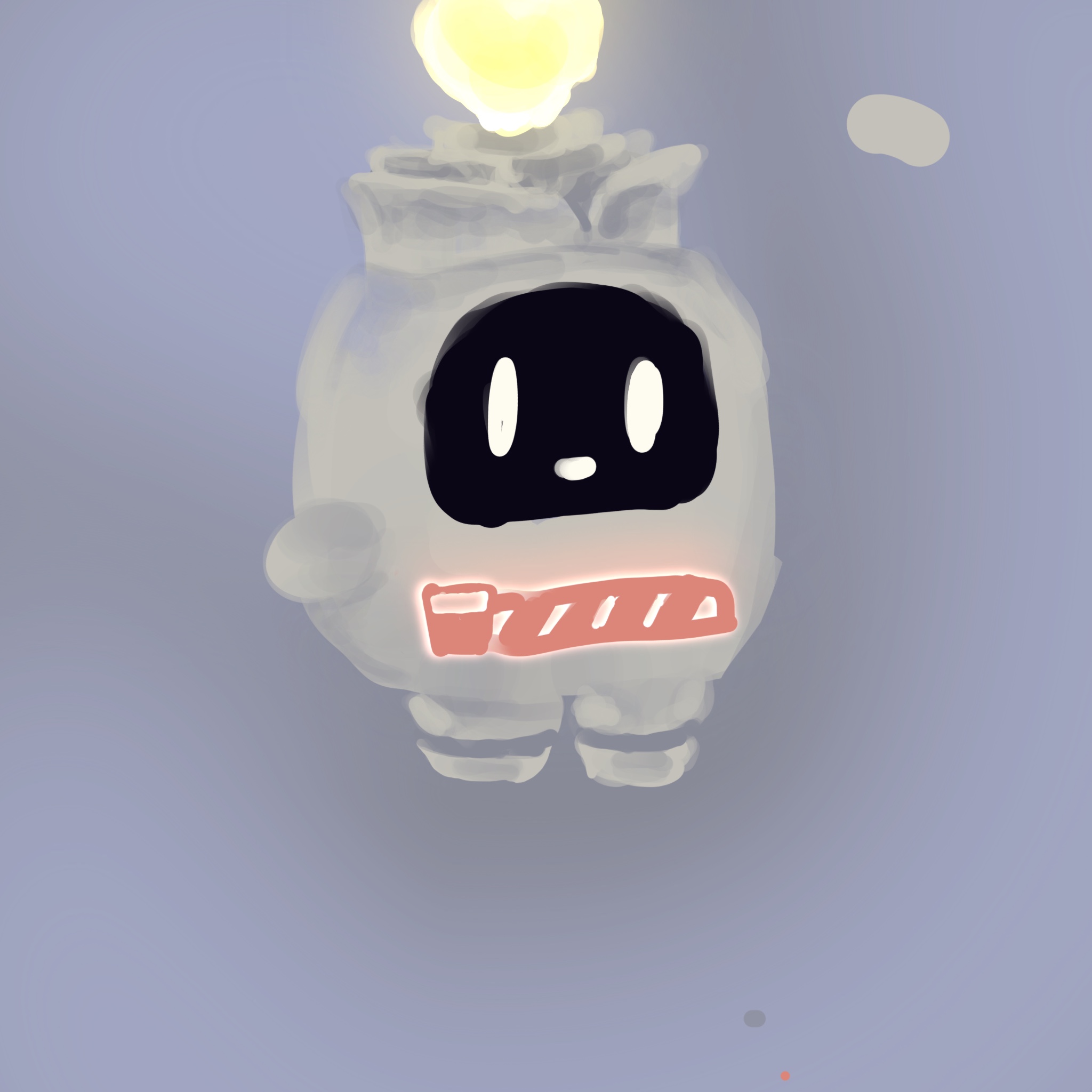

Project Sketches

Early concept sketches exploring different form factors and interaction models for the hydration monitor system.

Project Inspiration

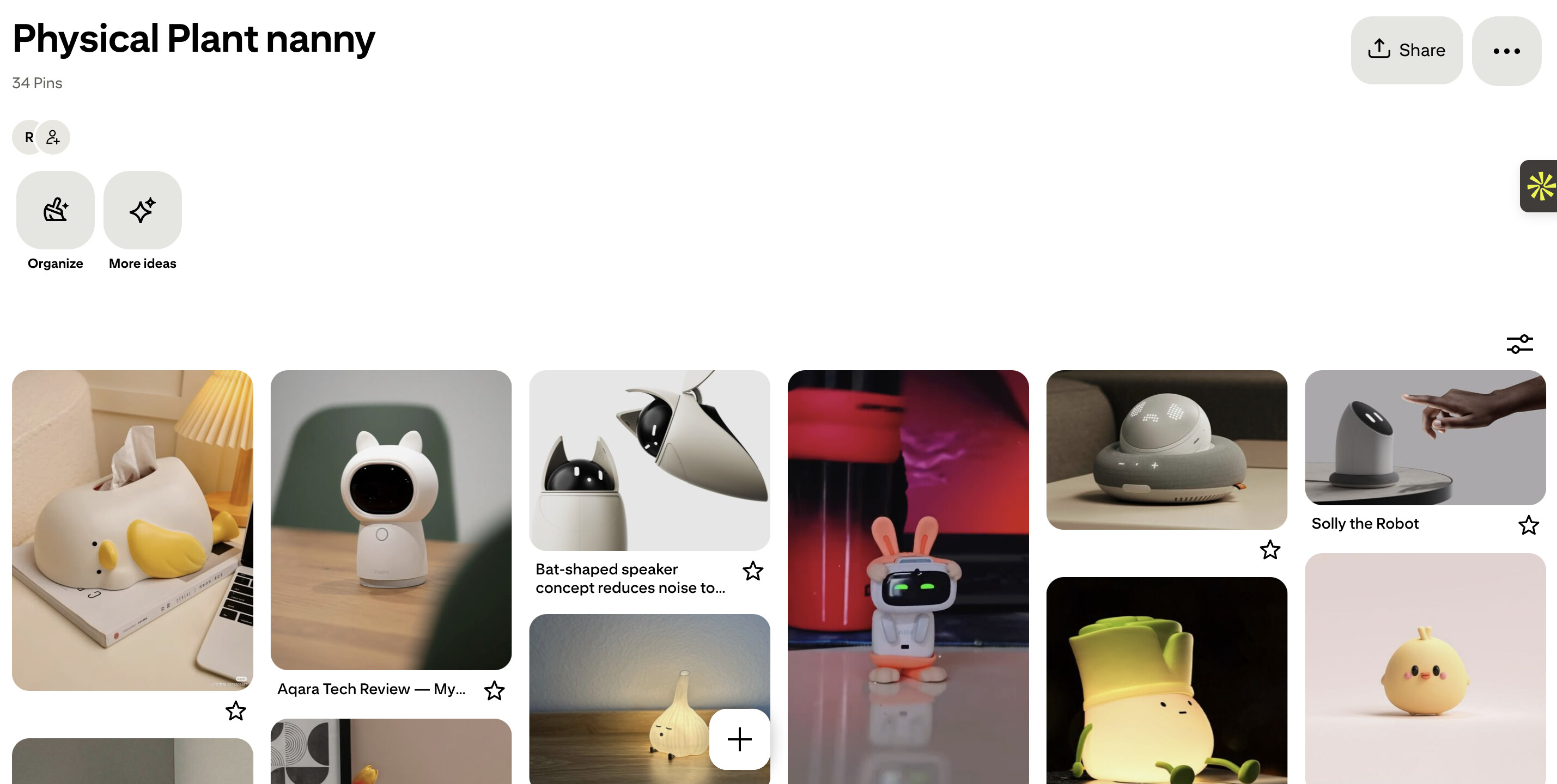

Visual Inspiration: Cute Robots

I drew inspiration from minimalist robot designs that use simple geometric shapes to convey emotion effectively. The goal was to create a character that feels alive and personable despite using only basic shapes on a monochrome display.

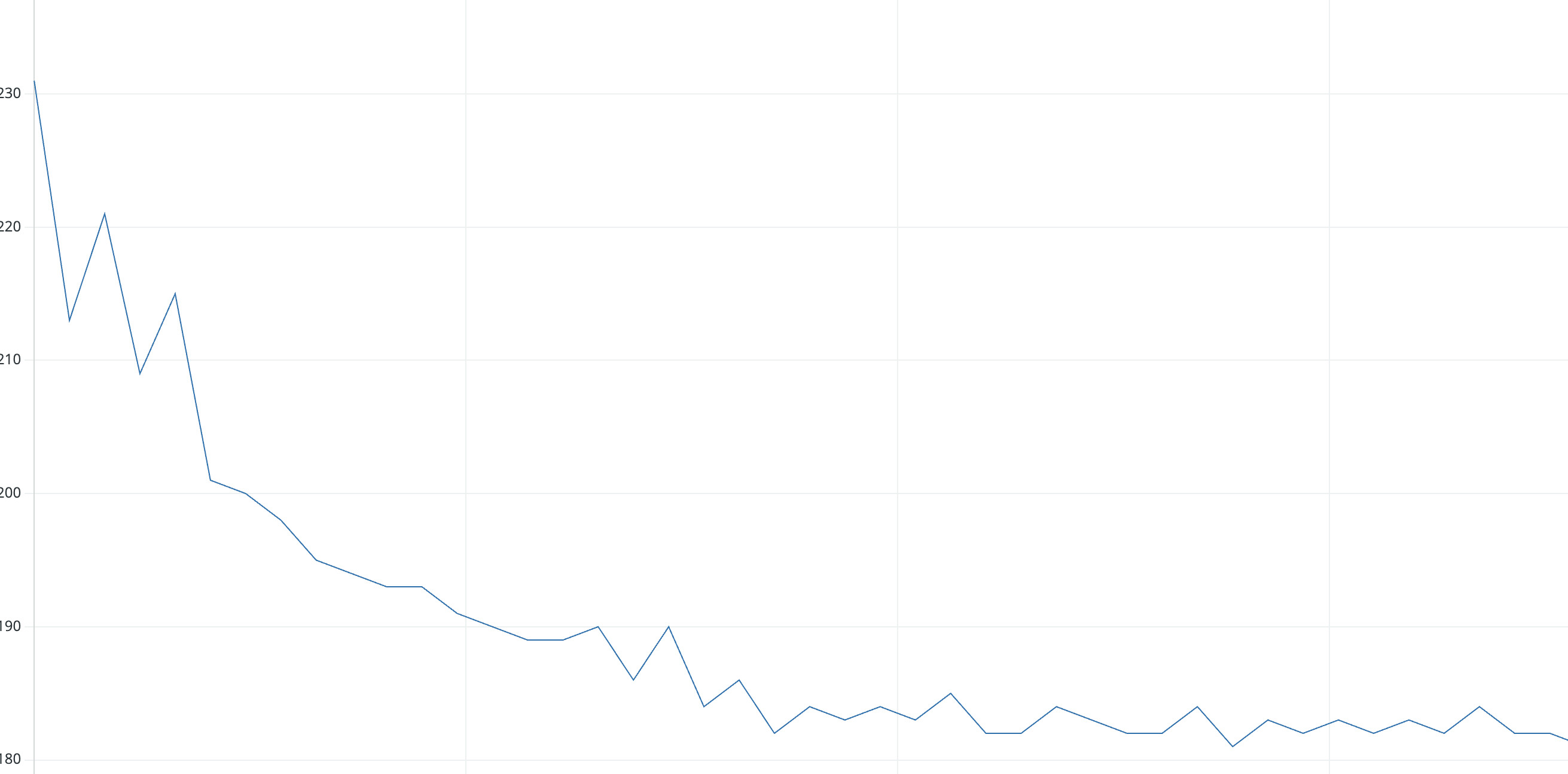

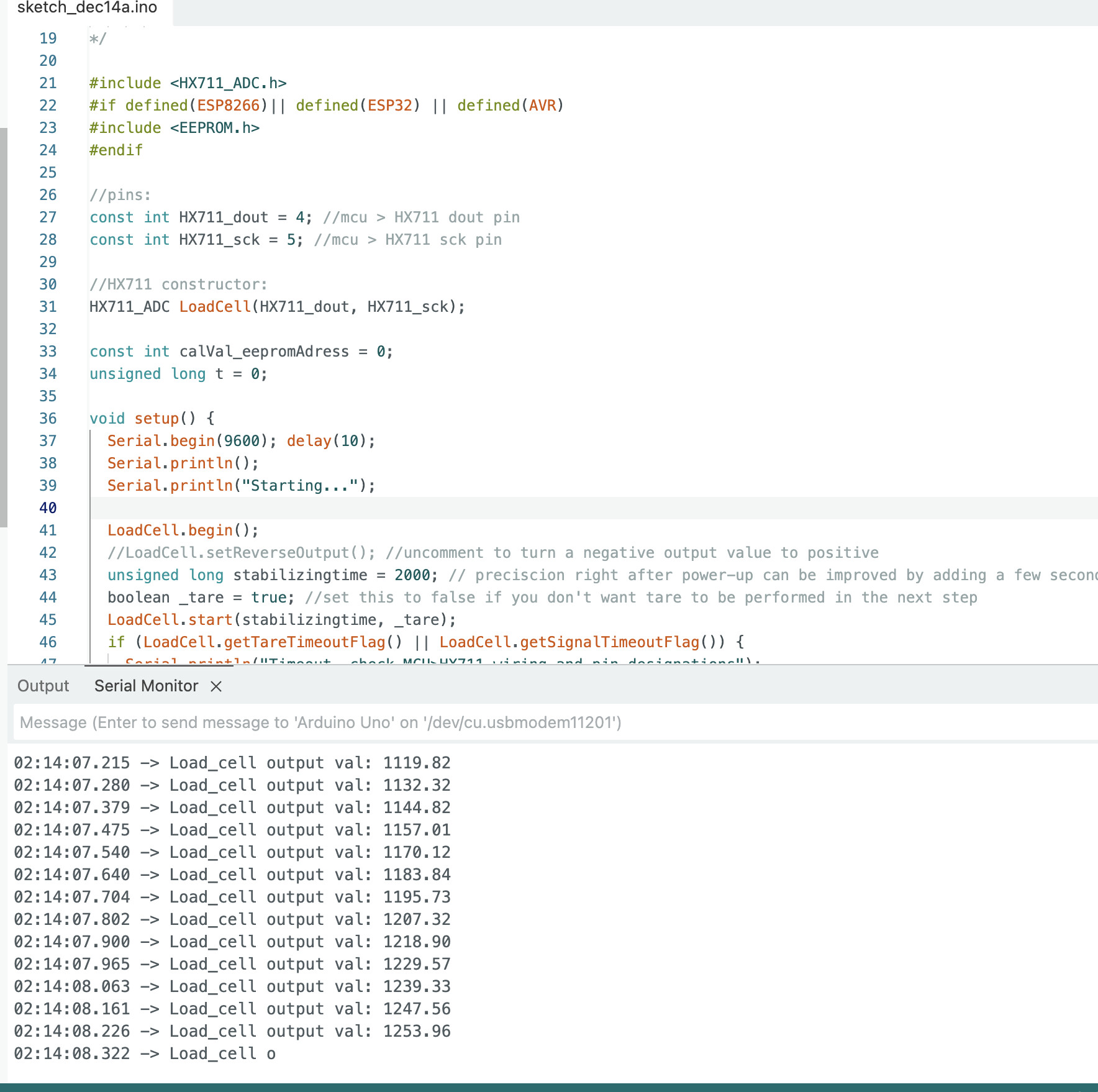

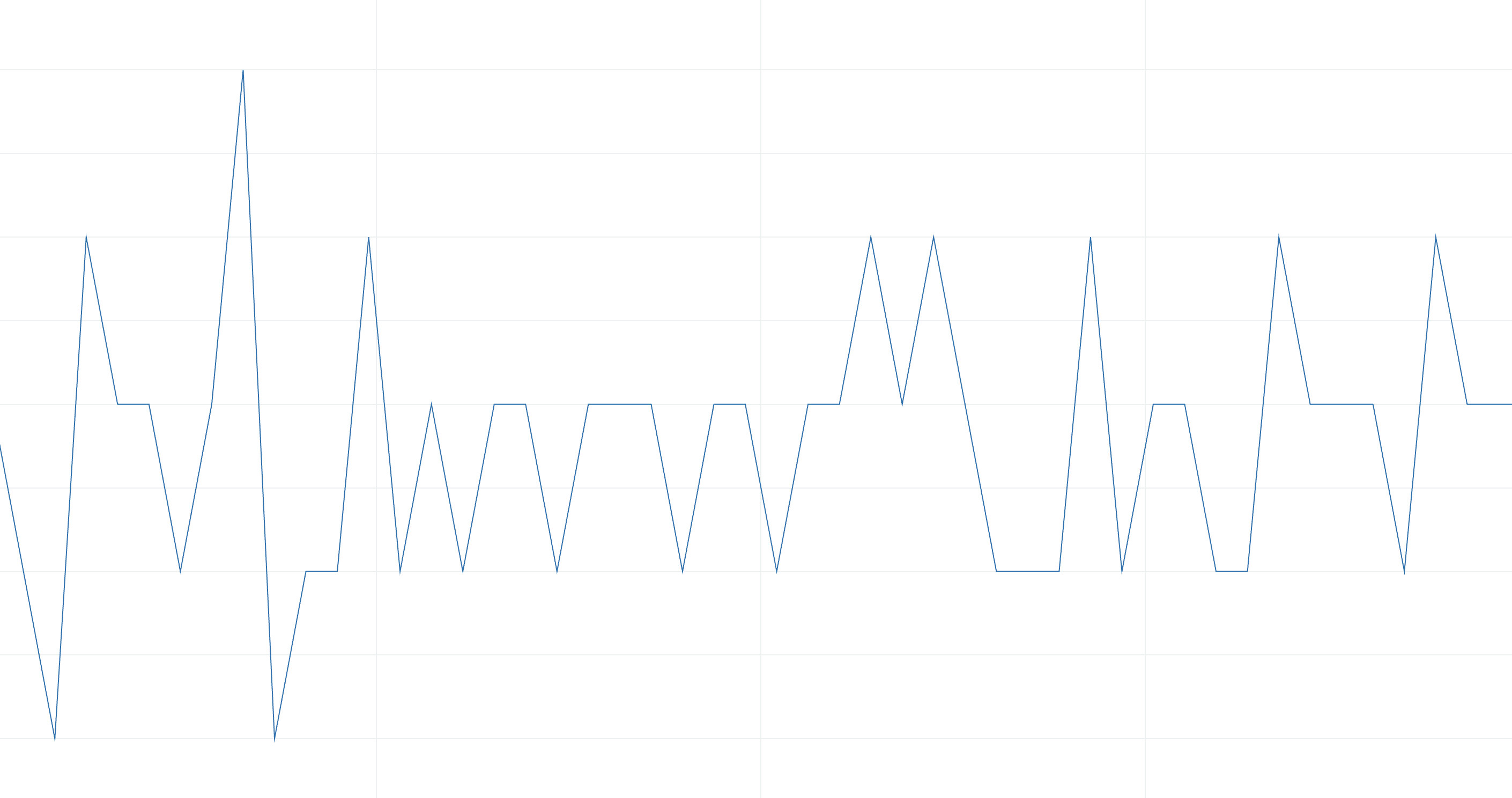

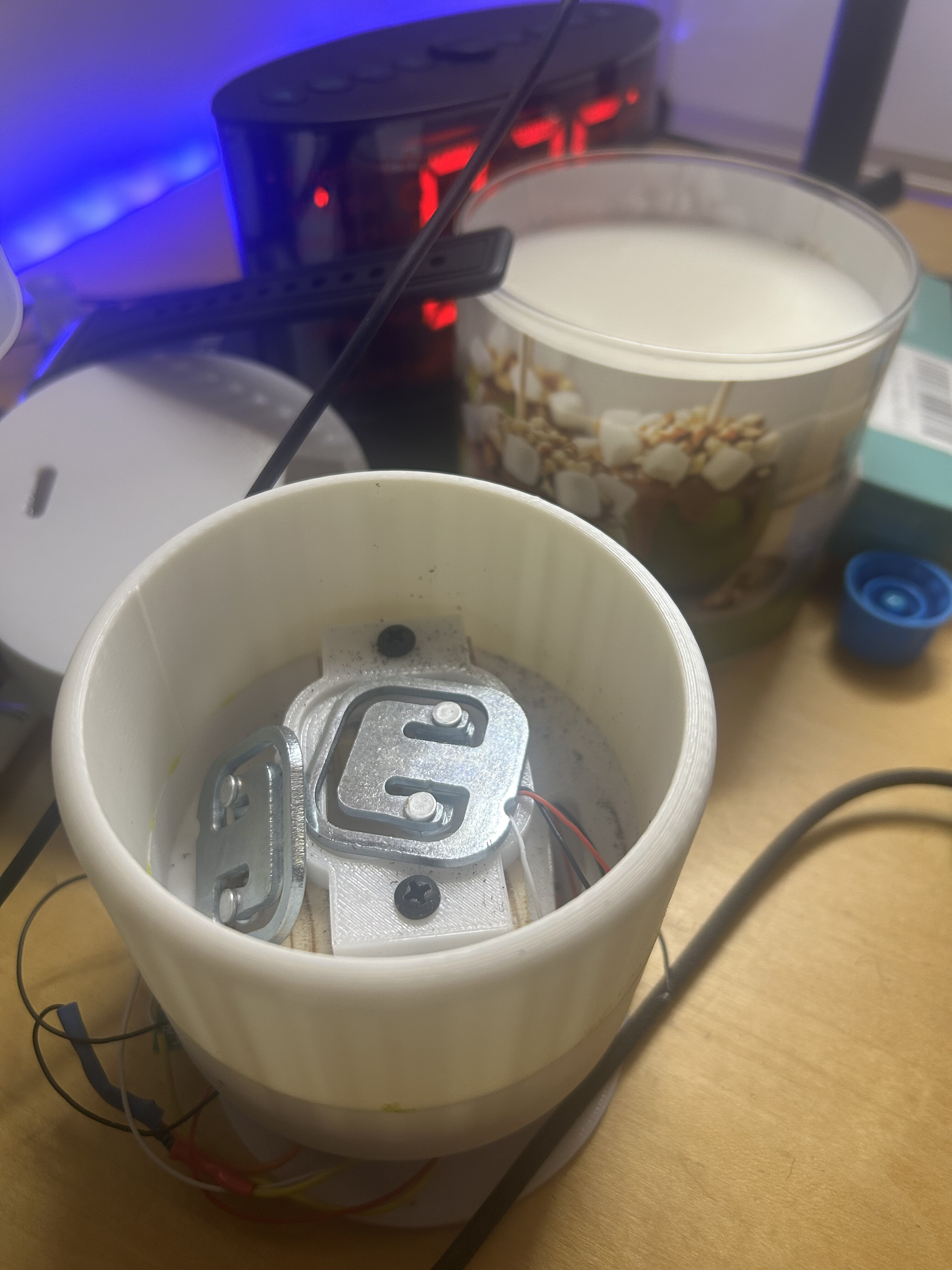

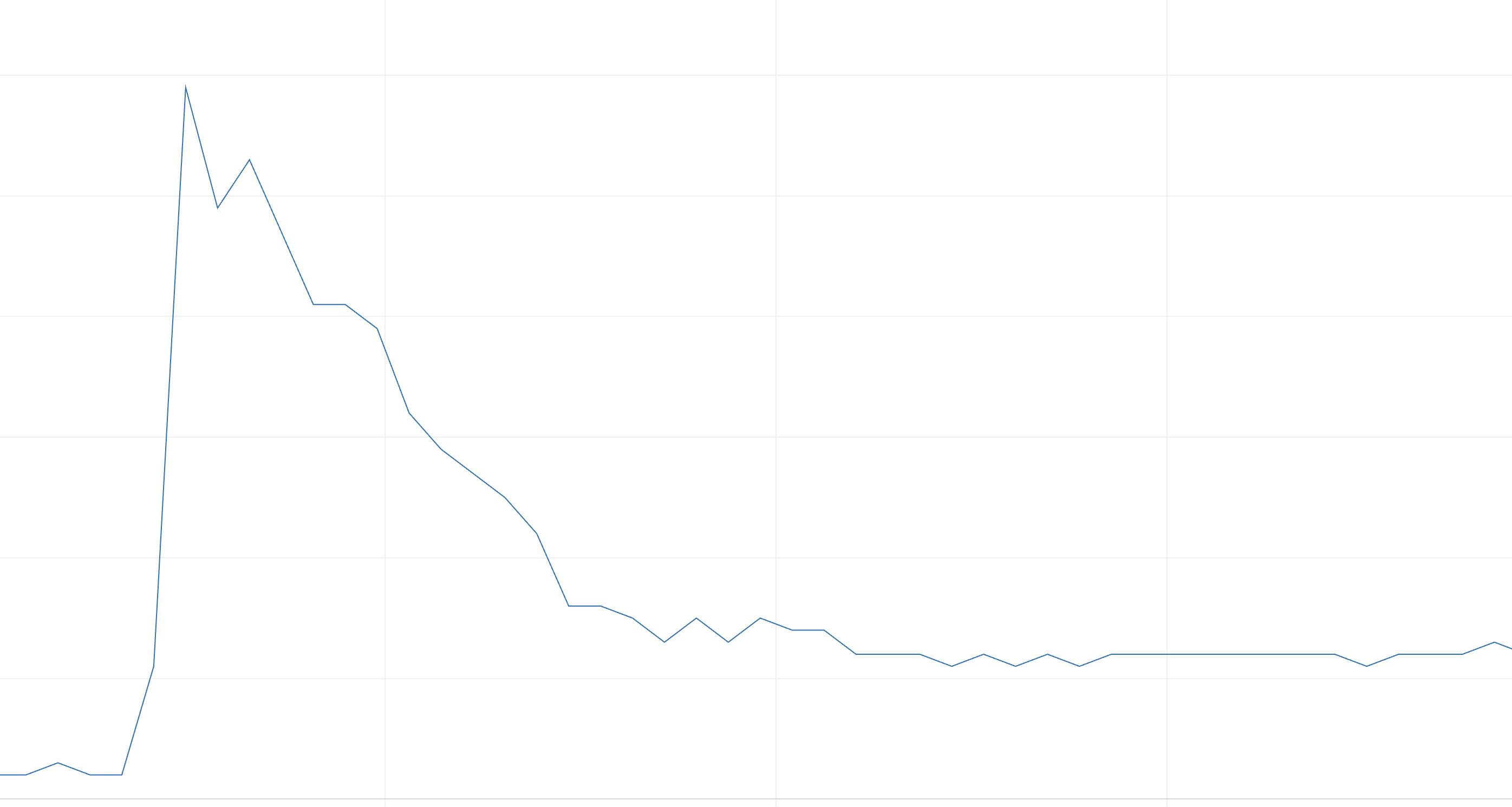

Technical Inspiration: Load Cell Testing

During development, I experimented with load cell sensors to understand their behavior, settling characteristics, and stability for weight measurement.

System Overview

The Hydration Monitor Robot is a two-unit wireless system that tracks water consumption and provides visual feedback through an expressive robot character.

System Architecture

Data Flow

1. Measurement: Load cell continuously measures water bottle weight
2. Processing: ESP32 calculates current weight, consumed amount, and percentage
3. Transmission: Data broadcast via BLE characteristics every second
4. Reception: Robot display unit receives BLE notifications
5. Expression: Robot face updates emotion based on hydration level
6. Feedback: User sees at-a-glance hydration status and feels motivated!

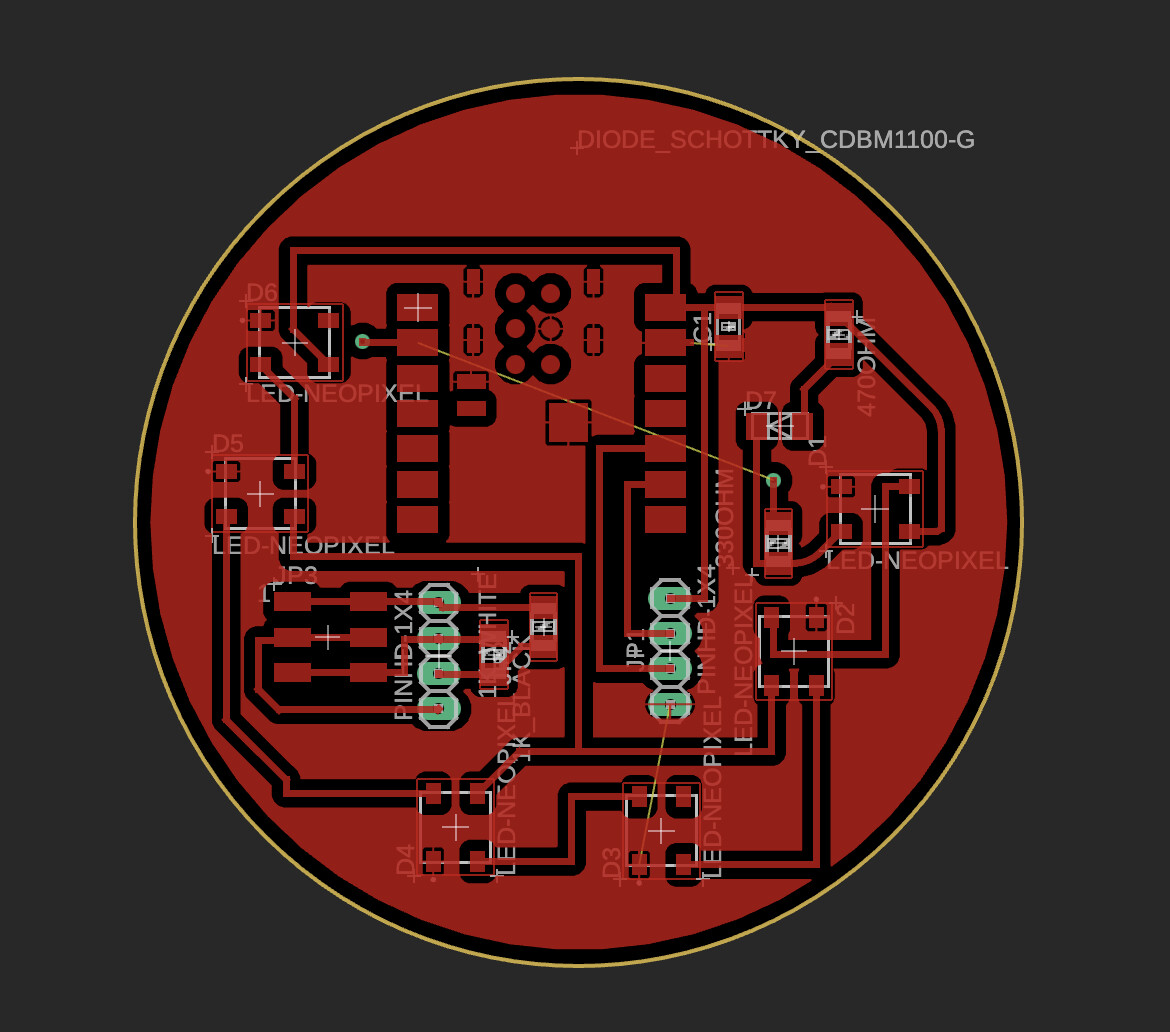

Water Bottle Scale (Unit 1)

Hardware Design

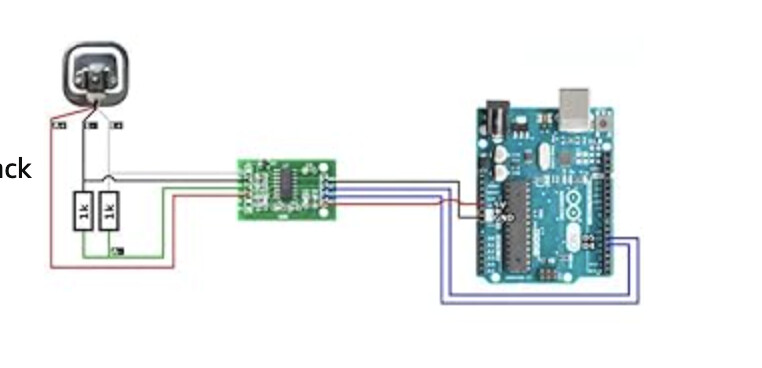

The water bottle scale uses an HX711 load cell amplifier connected to an ESP32-C3 or ESP32-S3 microcontroller. The scale sits at the base of the water bottle and measures weight changes as the user drinks.

Key Components

• HX711 Load Cell Amplifier - 24-bit ADC for precise weight measurement
• Load Cell Sensor - Converts mechanical force to electrical signal
• ESP32 Xiao Module - Handles processing and BLE communication
• EEPROM Storage - Saves calibration data and full bottle weight

Pin Configuration

// HX711 connections
const int HX711_dout = 4;  // Data pin
const int HX711_sck = 5;   // Clock pin

// BLE Service UUID
#define SERVICE_UUID "4fafc201-1fb5-459e-8fcc-c5c9c331914b"

// BLE Characteristics
#define CHAR_CURRENT_UUID  "beb5483e-36e1-4688-b7f5-ea07361b26a8"  // Current weight
#define CHAR_CONSUMED_UUID "beb5483e-36e1-4688-b7f5-ea07361b26a9"  // Water consumed
#define CHAR_PERCENT_UUID  "beb5483e-36e1-4688-b7f5-ea07361b26aa"  // Percentage
#define CHAR_CONTROL_UUID  "beb5483e-36e1-4688-b7f5-ea07361b26ab"  // Control/test

Calibration Process

The load cell requires calibration to provide accurate measurements:

1. Remove all weight from scale and tare (zero the reading)
2. Place a known weight (e.g., 500g) on the scale
3. System calculates calibration factor automatically
4. Calibration factor saved to EEPROM for persistence
5. Place full water bottle and save as reference weight

Test Mode for Development

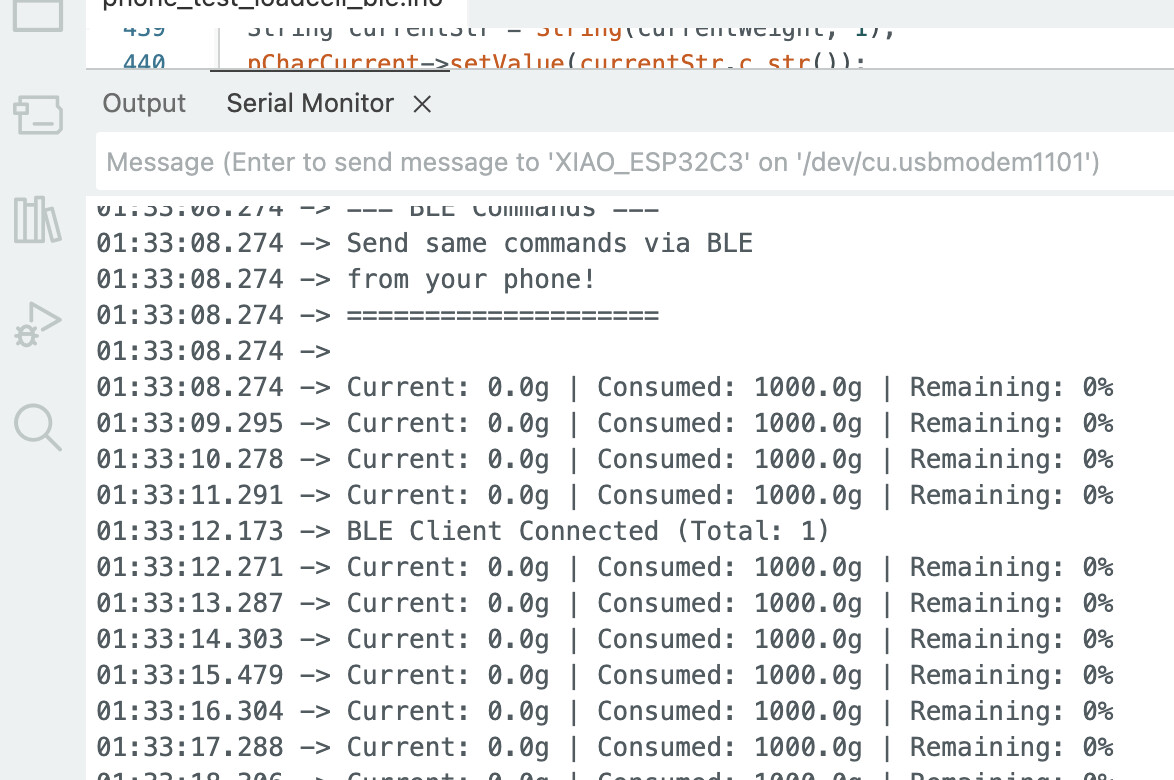

Since my load cell initially had issues reading correctly (always outputting 0.0), I implemented a test mode that simulates different water levels:

• 0 - Simulate 100% full (happy face)
• 1 - Simulate 50% full (neutral face)
• 2 - Simulate 25% full (sad face)
• 3 - Simulate 0% empty (sad face)
• a - Auto-cycle through all states every 5 seconds

This test mode can be triggered via serial commands OR wirelessly from a phone using BLE write commands to the control characteristic!

BLE Server Implementation

The scale operates as a BLE server, advertising itself as "WaterBottle" and providing four characteristics that clients can read and subscribe to:

void updateBLE() {
  // Send current weight
  String currentStr = String(currentWeight, 1);
  pCharCurrent->setValue(currentStr.c_str());
  pCharCurrent->notify();

  // Send water consumed
  String consumedStr = String(waterConsumed, 1);
  pCharConsumed->setValue(consumedStr.c_str());
  pCharConsumed->notify();

  // Send percentage remaining
  String percentStr = String(percentRemaining);
  pCharPercent->setValue(percentStr.c_str());
  pCharPercent->notify();
}

BLE Communication Protocol

Why Bluetooth Low Energy?

BLE was chosen for several key advantages:

• Low Power: Extended battery life for portable operation
• Wireless: No physical connection between scale and display
• Standard Protocol: Compatible with phones and apps
• Real-time: Instant updates via notifications

Service & Characteristics Structure

Client-Server Communication Flow

// Server (Water Bottle Scale)
1. Advertise as "WaterBottle"
2. Wait for client connection
3. Measure weight continuously
4. Calculate percentage remaining
5. Notify all subscribed clients every 1 second

// Client (Robot Display)
1. Scan for "WaterBottle" device
2. Connect to server
3. Subscribe to all three characteristics
4. Receive notifications on weight changes
5. Update robot face based on percentage

Notification Callbacks

The display unit registers callback functions that automatically trigger when new data arrives:

// Callback when percentage updates
static void notifyCallbackPercent(
  BLERemoteCharacteristic* pChar,
  uint8_t* pData,
  size_t length,
  bool isNotify) {

  String value = String((char*)pData).substring(0, length);
  percentRemaining = value.toInt();

  Serial.print("Water Remaining: ");
  Serial.print(percentRemaining);
  Serial.println("%");

  // Update robot face based on water level!
  updateFaceFromWaterLevel();
}

Robot Face Display (Unit 2)

Hardware: TFT Display System

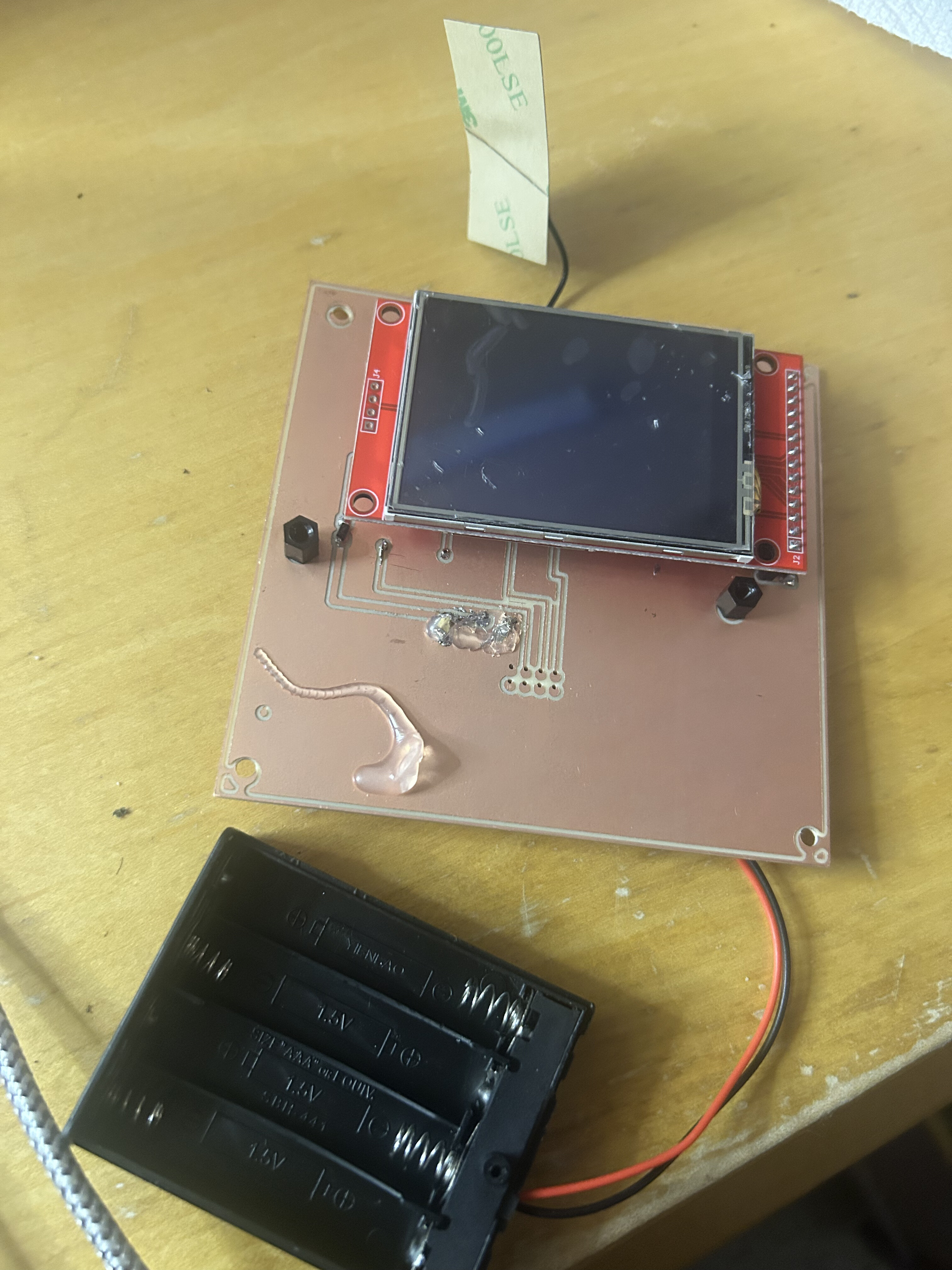

Originally, I designed a custom PCB with an ESP32-S3 and ILI9341 TFT display (documented in Week 9). However, I encountered power issues with my milled board, so I rebuilt the circuit on a breadboard for reliable operation.

Display Specifications

• Display: ILI9341 2.8" TFT LCD
• Resolution: 320×240 pixels (QVGA)
• Colors: Black and white only (high contrast)
• Interface: SPI communication
• Update Rate: 60 FPS for smooth animation

Three Emotional States

The robot expresses emotion through three distinct facial configurations that automatically update based on water level percentage:

Blinking Animation

To bring the robot to life, I implemented an automatic blinking system that randomly triggers every 2-5 seconds:

• Eyes close for 150ms
• Random interval between blinks (2-5 seconds)
• Continues during all emotional states
• Adds personality and makes robot feel alive

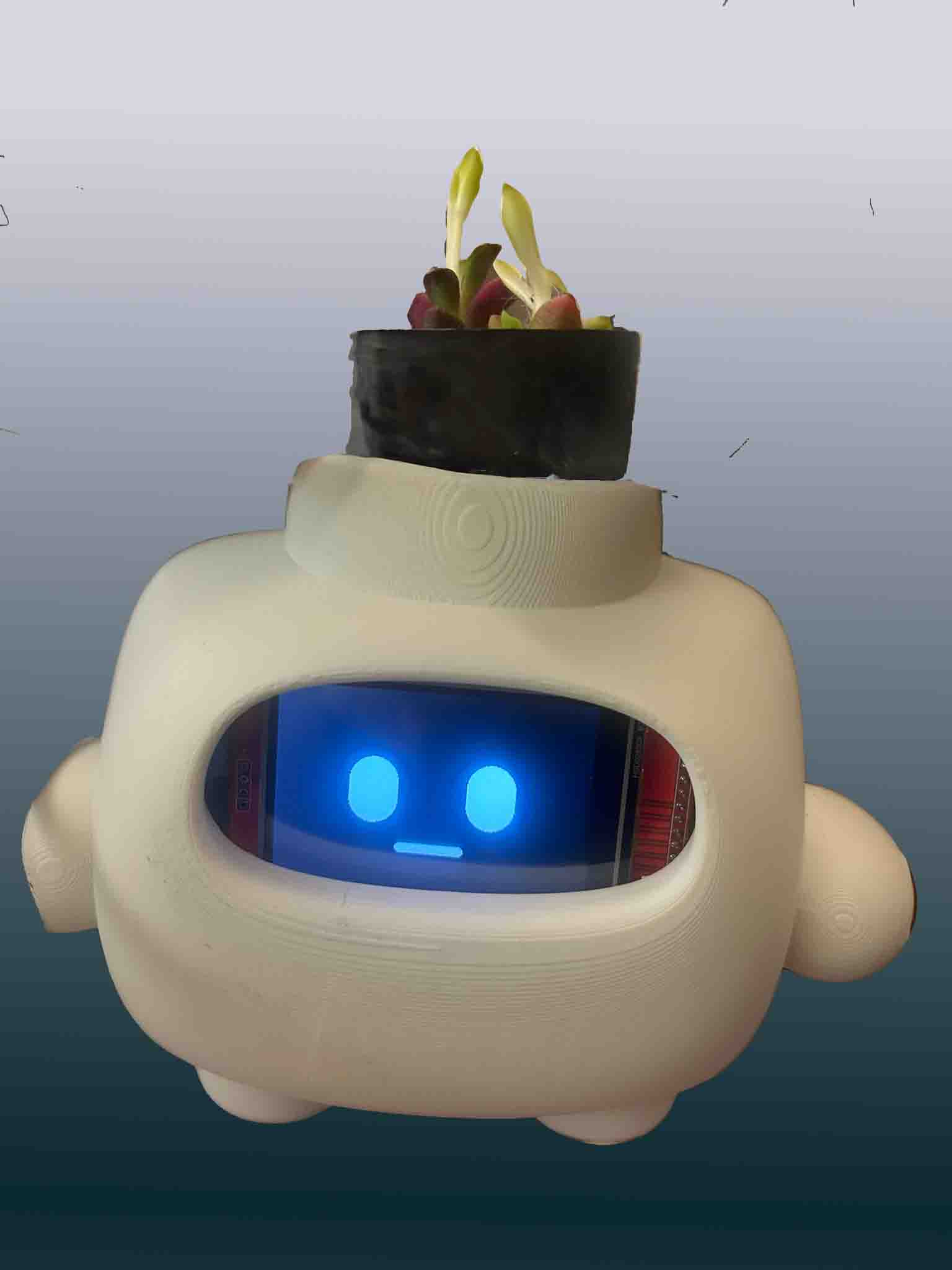

Character Design Origins

The robot mascot was inspired by my original Plant Nanny concept. I modeled a cute plant character in Blender that would have been the 3D printed mascot:

Face Update Logic

void updateFaceFromWaterLevel() {
  int newState;

  if (percentRemaining >= 60) {
    newState = 1;  // Happy - plenty of water
  } else if (percentRemaining >= 30) {
    newState = 2;  // Neutral - getting low
  } else {
    newState = 3;  // Sad - needs refill!
  }

  // Only redraw if state changed (prevents flicker)
  if (newState != currentState) {
    currentState = newState;
    switch(currentState) {
      case 1: happy(); break;
      case 2: neutral(); break;
      case 3: sad(); break;
    }
  }
}

CAD Design & Enclosures

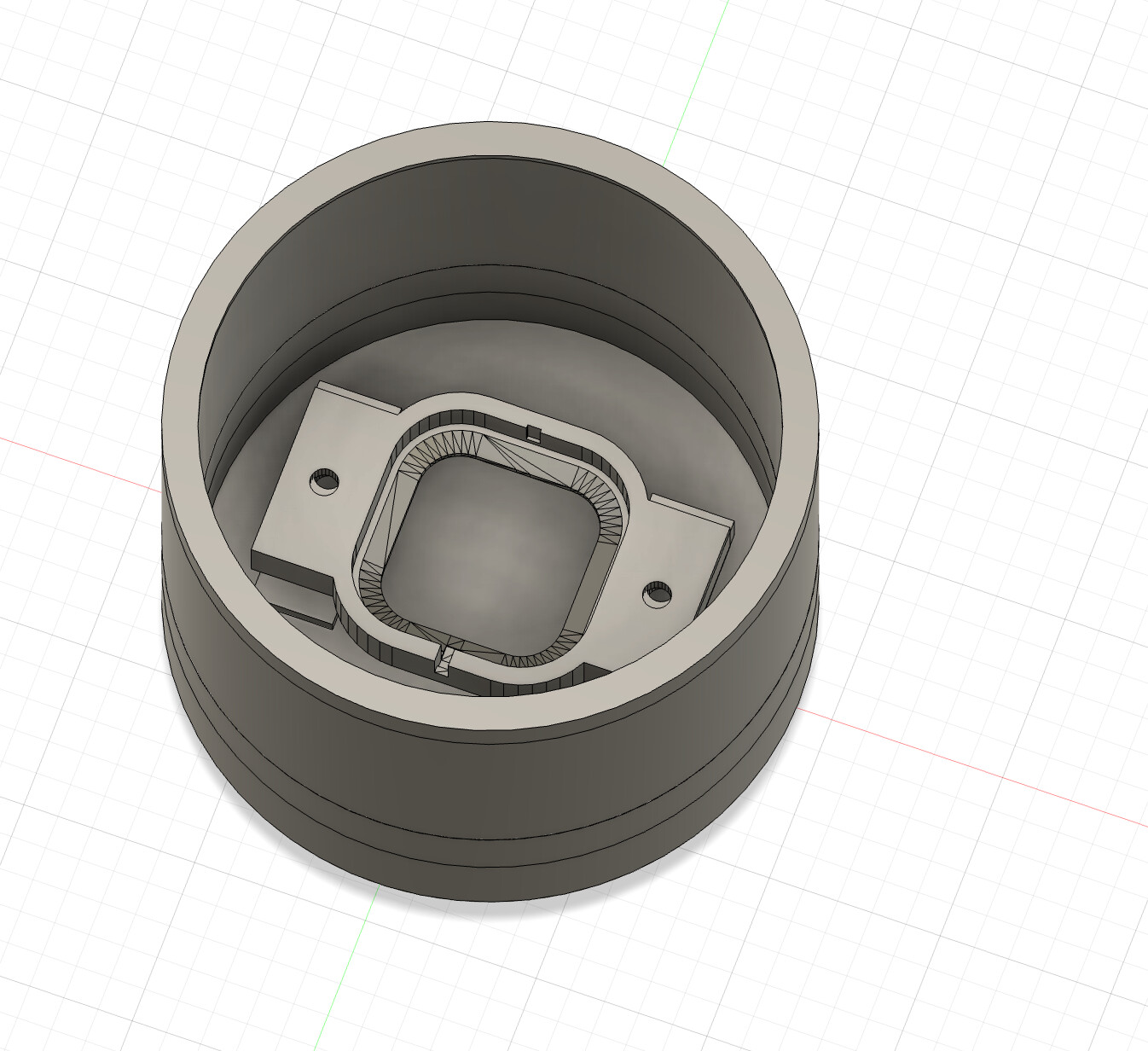

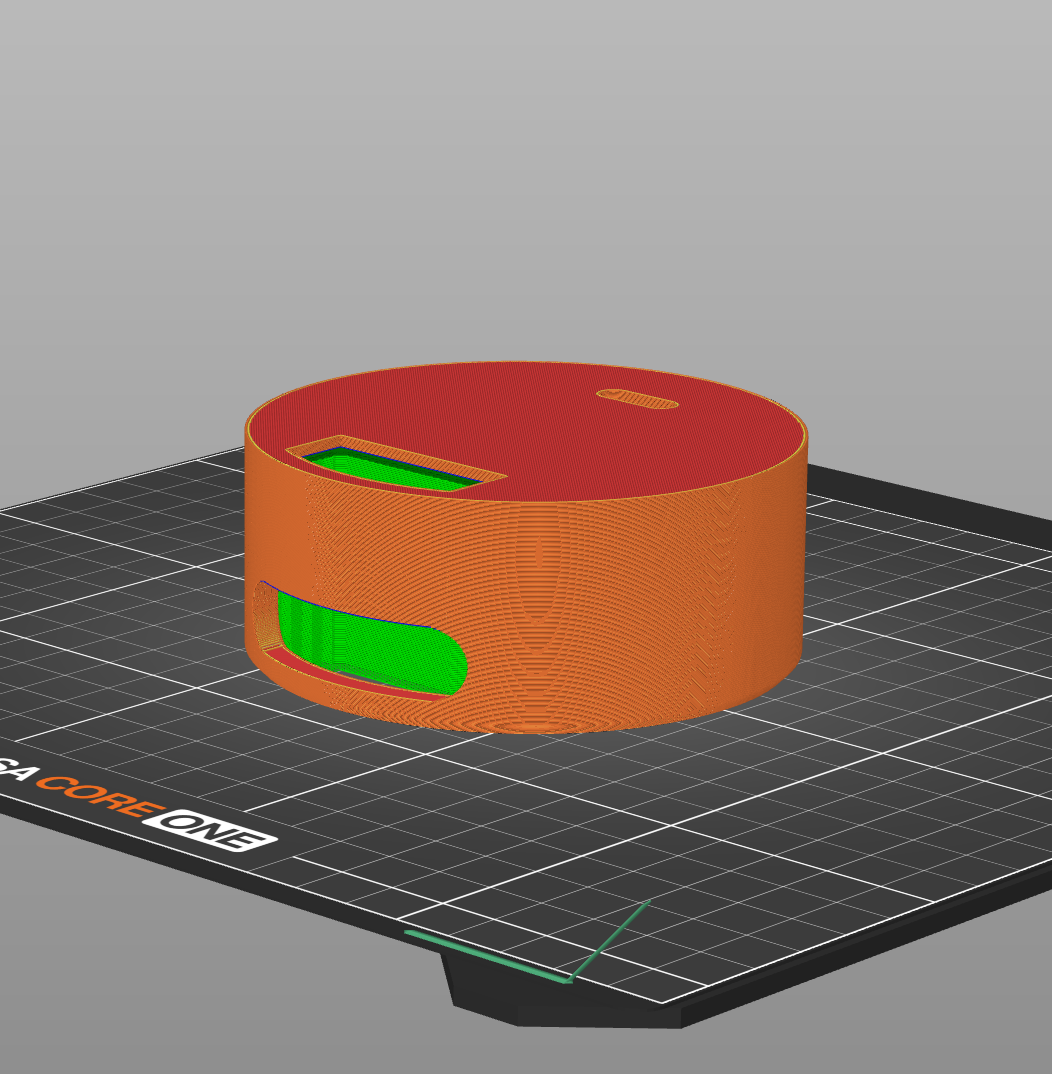

Water Bottle Base Sleeve

I designed a custom sleeve that fits around the bottom of a standard water bottle, housing the load cell and electronics. The design ensures:

• Stable placement for accurate weight measurement
• Protection for electronics from spills
• Easy bottle insertion and removal
• Compact form factor that doesn't interfere with use

Robot Body Enclosure

The robot body houses the TFT display and ESP32 controller. The design features:

• Front-facing display cutout for the "face"
• Cute, friendly form factor inspired by companion robots
• Internal compartments for electronics and wiring
• Stable base with non-slip padding
• Access ports for USB programming

3D Printing

Both enclosures were 3D printed in PETG plastic:

• Layer Height: 0.2mm for smooth finish
• Infill: 20% for lightweight but sturdy parts
• Supports: Minimal supports for overhangs

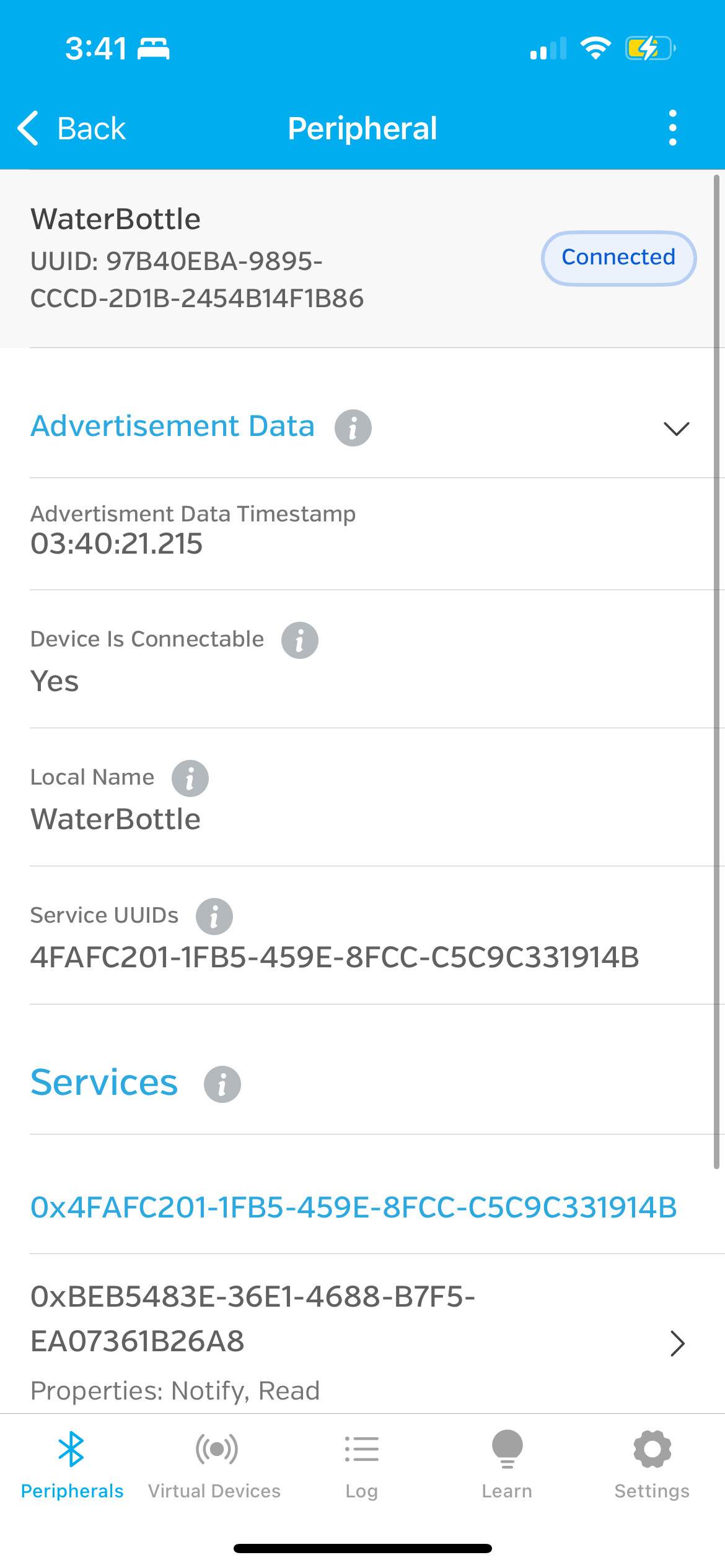

Phone Interface Control

BLE App Control

Using generic BLE apps like nRF Connect (Android) or LightBlue (iOS), you can connect directly to the water bottle scale and:

• View current weight in real-time
• Monitor water consumption
• Check percentage remaining
• Send control commands to trigger test mode

How to Connect from Your Phone

1. Open nRF Connect or LightBlue app
2. Scan for BLE devices
3. Look for device named "WaterBottle"
4. Tap to connect
5. Expand the service: 4fafc201-1fb5...
6. Enable notifications on the characteristics ending in a8, a9, aa
7. Watch live updates as you drink water!

Testing via Phone Commands

You can trigger the test mode wirelessly by writing to the Control characteristic (ending in ab):

• Write x - Toggle test mode ON/OFF
• Write 0 - Simulate 100% full
• Write 1 - Simulate 50% full
• Write 2 - Simulate 25% full
• Write 3 - Simulate 0% empty
• Write a - Auto-cycle through all states

System Integration & Testing

Complete System Assembly

Bringing both units together creates the full hydration monitoring experience:

Integration Testing Process

1. Unit Testing: Test each component individually
   • Load cell calibration and weight measurement
   • BLE server advertising and data transmission
   • Robot face display and animations
   • BLE client connection and notification handling
2. BLE Connection: Verify wireless link
   • Server advertises "WaterBottle" successfully
   • Client auto-discovers and connects
   • All four characteristics accessible
   • Notifications transmit at 1 Hz
3. End-to-End Testing: Simulate real usage
   • Place full water bottle on scale
   • Save reference weight via serial command
   • Watch robot show happy face (100%)
   • Drink water and observe face transition
   • Verify percentage thresholds (60%, 30%)
4. Stress Testing: Edge cases and reliability
   • Connection loss and automatic reconnection
   • Rapid weight changes (gulping water)
   • Extended runtime (battery life)
   • Multiple connection attempts

Real-World Usage Scenario

Challenges & Solutions

Lessons Learned

• Test early, test often: Implementing test mode saved the project when hardware issues arose
• Power is critical: Don't underestimate power distribution in PCB design—decoupling caps matter!
• User feedback is essential: Visual feedback (sad face on disconnect) greatly improves user experience
• Wireless adds complexity: BLE is powerful but requires careful handling of connection states
• Iterative design works: Breadboard prototype → PCB → back to breadboard taught valuable lessons

Final Demo

System in Action

Watch the complete hydration monitor system in action! This video demonstrates:

• BLE connection establishment between scale and display
• Robot face transitions based on simulated water levels
• Blinking animation running continuously
• Phone control interface sending test commands
• Real-time percentage updates

Key Demonstrations

Future Improvements

Hardware Enhancements

• Fix load cell wiring: Resolve the hardware issue causing 0.0 readings for real weight measurement
• Redesign TFT PCB: Address power issues with better decoupling and trace widths for stable operation
• Add battery management: Integrate LiPo battery with charging circuit for truly wireless operation
• Sound feedback: Add small piezo speaker for audio cues (happy beep, reminder chime)
• RGB LEDs: Ambient lighting that changes color with hydration level for at-a-glance status

Software Features

• More emotions: Add "excited" (rapid blinks), "sleepy" (slow blinks), "thinking" states
• Animated transitions: Smooth morphing between facial expressions instead of instant changes
• Daily goals: Track total water consumption and celebrate when you hit your target
• Reminders: Vibrate or beep if you haven't drunk water in X hours
• Custom characters: Let users choose different robot personalities/faces
• Data logging: Store hydration history and show graphs of consumption patterns

Mobile App

Develop a dedicated smartphone app (instead of using generic BLE apps) with:

• Beautiful UI showing current water level and robot face
• Historical data and trends (daily/weekly/monthly charts)
• Customizable hydration goals based on weight/activity
• Reminder notifications to drink water
• Achievement system and rewards for consistency
• Social features to compete with friends

Mechanical Design

• Articulated body: Add servo motors so the robot can tilt its head or wave its arms
• Better enclosure: Professional injection-molded case instead of 3D printed prototype
• Universal bottle adapter: Adjustable sleeve that fits different bottle sizes and shapes
• Magnetic docking: Robot attaches magnetically to scale for modular setup

Downloads & Resources

Related Weekly Assignments

• Week 8 - Input Devices: Load cell sensor integration and calibration
• Week 9 - Output Devices: TFT display PCB design and robot face programming
• Week 3 - Embedded Programming: ESP32 programming and BLE fundamentals

External Resources

• HX711 Arduino Library
• Adafruit GFX Library
• Adafruit ILI9341 Library
• ESP32 BLE Documentation

Conclusion

The Hydration Monitor Robot successfully combines multiple embedded systems concepts into a cohesive, delightful product. Despite hardware challenges along the way, the project demonstrates:

• ✅ PCB design and fabrication (both successful and learning from failures)
• ✅ Sensor integration and calibration (load cells)
• ✅ Wireless communication protocols (BLE)
• ✅ Display output and graphics programming (TFT)
• ✅ 3D modeling and manufacturing (enclosures)
• ✅ Embedded firmware architecture (state machines, callbacks)
• ✅ User interaction design (expressive character)

Most importantly, this project achieved my original goals: it's cute, interactive, and useful. The robot companion creates an emotional connection that makes healthy hydration habits feel less like a chore and more like caring for a friend.
